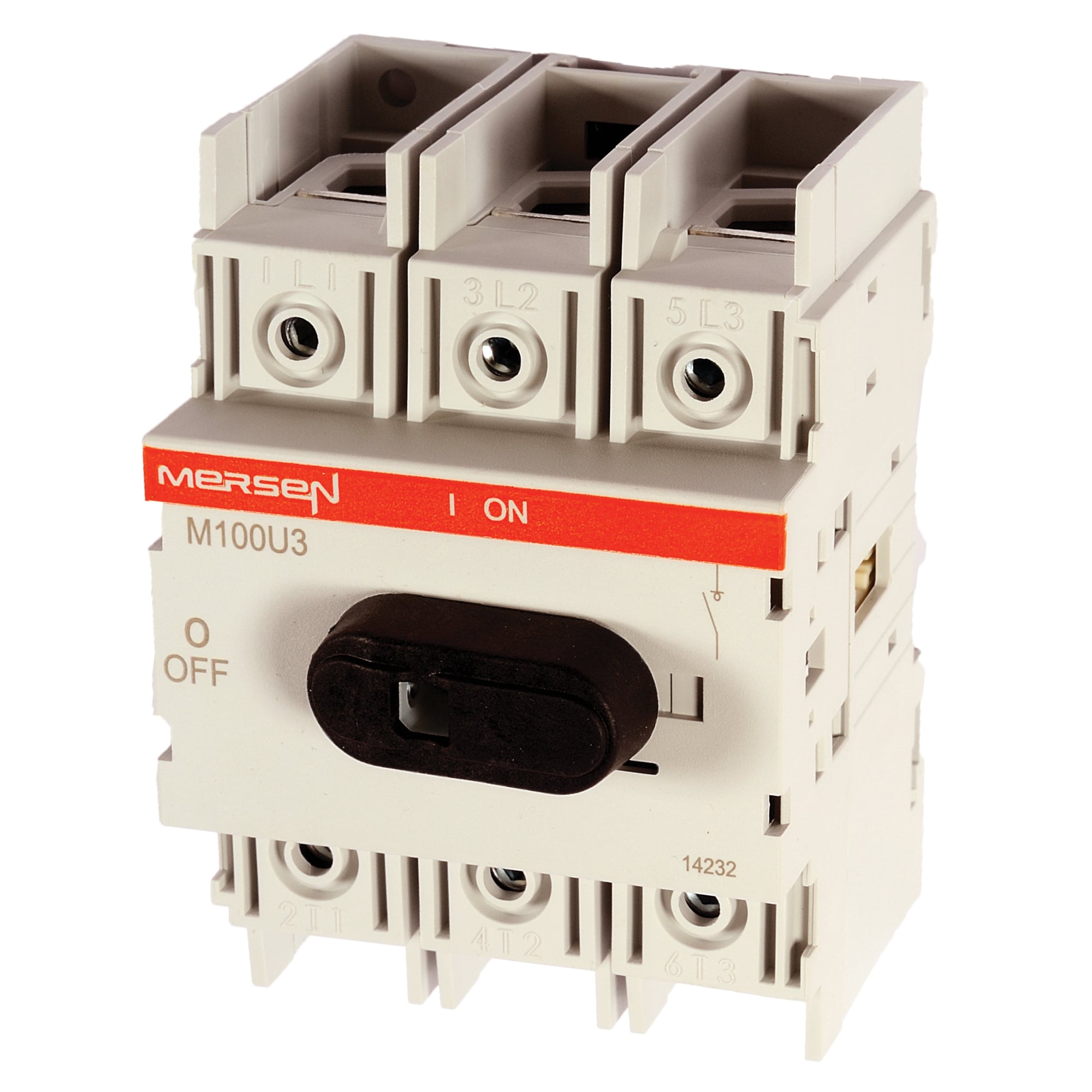

M100U3 Non-Fusible Front Operated Disconnect Switch, 600 V AC, 100 A, 5 hp, 15 hp, 30 hp, 50 hp, 50 hp, 3 Poles
- MFR:
- Mersen
- MFR #:
- M100U3
- Item #:
- 954285
M100U3 Non-Fusible Front Operated Disconnect Switch, 600 V AC, 100 A, 5 hp, 15 hp, 30 hp, 50 hp, 50 hp, 3 Poles
- MFR #:
- M100U3
- Item #:
- 954285
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$866.08
each
UL 98 Non-Fusible Switch 600VAC 100A 3-Pole
Manuals and Documentation
| Catalog Number | M100U3 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Finland |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | Service entrance or main panel disconnects “Make and break” power circuit applications on load Electrical isolation Safety switch |
| Connection | Box |
| Mounting | Base Mounted |
| Number of Poles | 3 |
| Special Features | Service entrance rated Front or side operation Most compact size Internally mounted auxiliary contacts Flange mounting accessories Flexible mounting Adjustable shaft depth |
| Standard | All UL switches meet the requirements of UL and CSA UL listed guide WHTY, File E191605 for UL 98 (ratings from 30 A to 1200 A) IEC 60947-3 |
| GTIN | 03605340557466 |
| Item Type | UL 98 Non Fusible |
| Size | 3.94 x 2.76 x 2.22 |
| Voltage Rating | 600 |
