8536SDH8V03 Type S Magnetic Starter, 220 V AC at 50 Hz/240 V AC at 60 Hz V Coil, 2 Poles, NEMA 3R Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SDH8V03
- UPC:
- 785901471806
- Item #:
- 95361
8536SDH8V03 Type S Magnetic Starter, 220 V AC at 50 Hz/240 V AC at 60 Hz V Coil, 2 Poles, NEMA 3R Enclosure
- MFR #:
- 8536SDH8V03
- UPC:
- 785901471806
- Item #:
- 95361
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

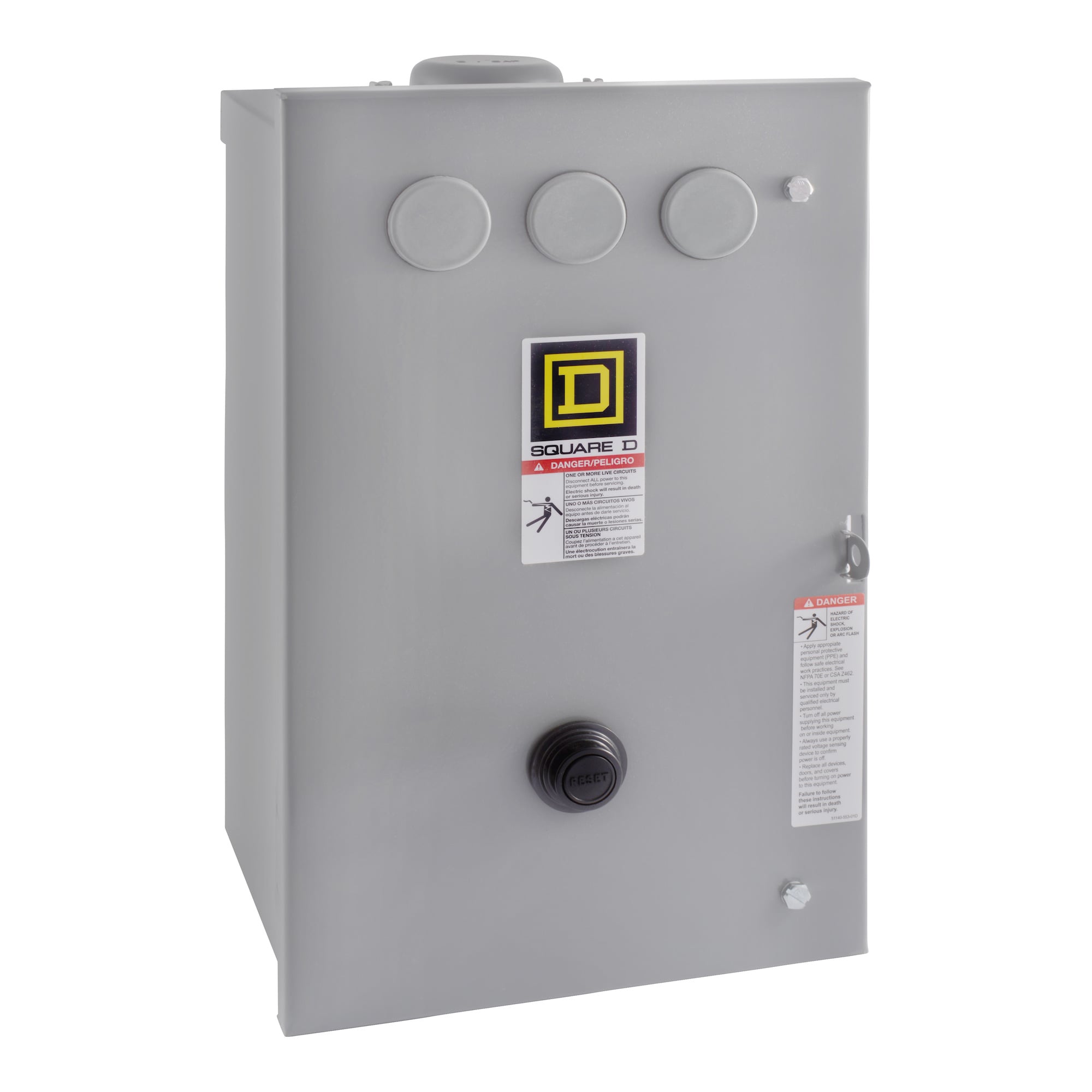

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This is a 2 pole non-reversing starter with extra capacity. This motor starter has single phase ratings of 5 HP at 115 VAC and 10 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 3R rainproof and sleet resistant enclosure for outdoor use is used to protect this starter. Enclosure is 16.28 inches tall, 9.84 inches wide and 8.63 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Manuals and Documentation
| Catalog Number | 8536SDH8V03 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=518517&lang=en-us |
| UPC | 785901471806 |
| GTIN | 00785901471806 |
