Killark

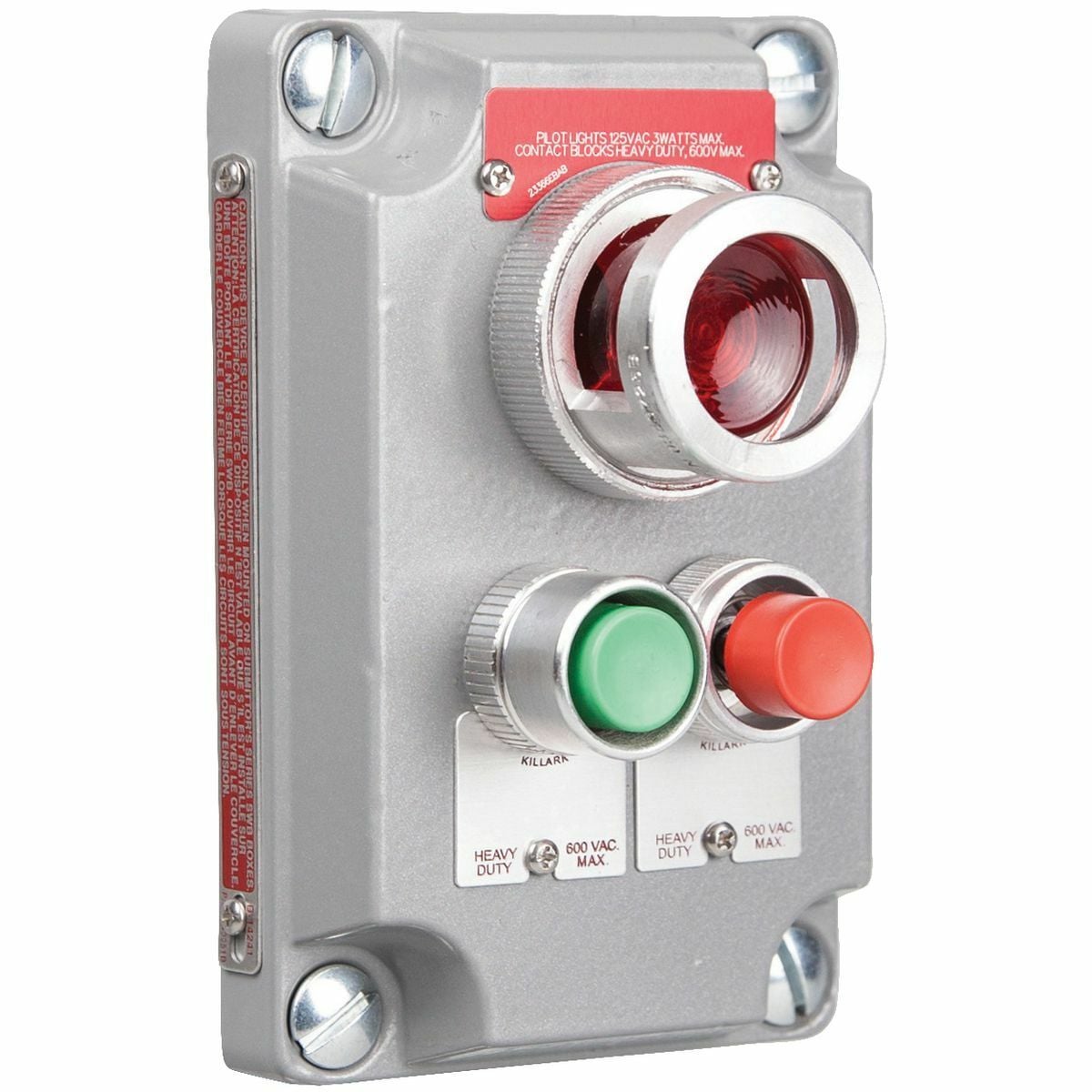

XCS-0A15 XCS Series Control Station Cover Assembly, 120/600 V AC, 10 A, 1NO-1NC Contact, 3 Operators, NEMA 7/9 NEMA Rating

MFR:
Killark, a Hubbell affiliate
MFR #:
XCS-0A15
UPC:
783936890043
Item #:
94961

Availability

Location Available Qty
Available Available to Order
$537.73 each
Catalog Number XCS-0A15
Manufacturer Killark, a Hubbell affiliate
Brand Killark
Country of Origin United States
Made in USA Yes
Action SP (per circuit)
Actuator Momentary Pushbutton
Amperage Rating 10
Application Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Color Green;Red P.B.; Red Light
Contact Configuration 1-NO/1-NC
Contact Rating NEMA A600 - 7200 VA (make), 720 VA (break), 10A cont. @ 600V AC (thermal); NEMA Q300 - 69 VA (make & break), 2.5A cont. @ 250V DC (thermal).
Material Copper-free aluminum
Number of Poles 2
Operating Cycles 10,000 operations
Special Features Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Standard UL, CSA
UPC 783936890043
GTIN 00783936890043
Item Type Aluminum Cover With Pilot Light And Two Mini Push Buttons
Size 7.875 in x 5.875 in x 4 in
Environmental Conditions Hazardous locations
Voltage Rating Pilot light: 120 VAC. Push button: 600 VAC maximum.
Wattage 3W
