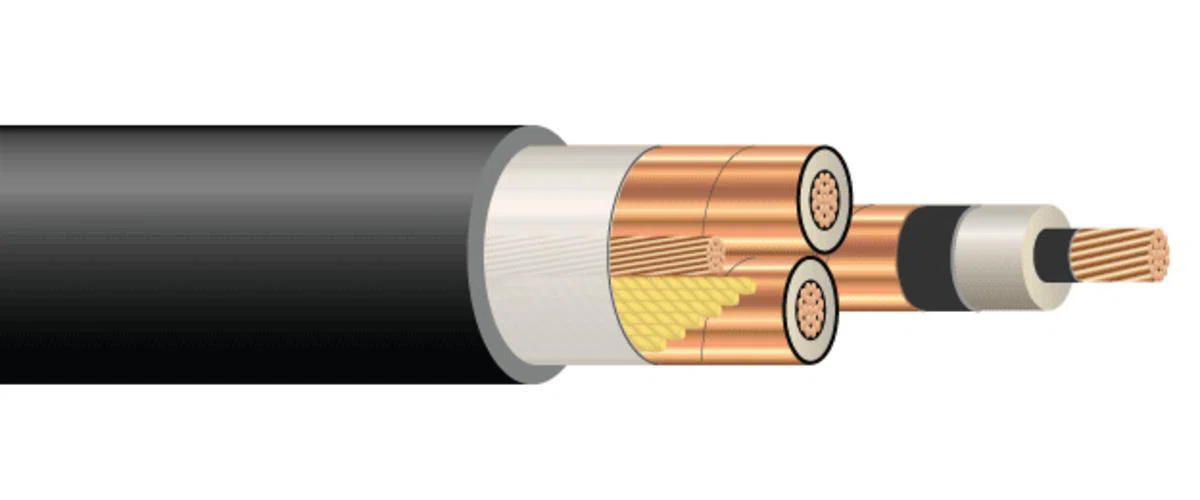

55051499 MV-105 Voltage Cable, Reel Packaging, (1) Conductors 2 AWG Conductor Bare Stranded Copper Conductor
- MFR:
- Southwire Company
- MFR #:
- 55051499
- Item #:
- 946590
55051499 MV-105 Voltage Cable, Reel Packaging, (1) Conductors 2 AWG Conductor Bare Stranded Copper Conductor
- MFR #:
- 55051499
- Item #:
- 946590
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$6.5325
foot
Southwire®, 55051499, Voltage Cable, MV-105, Reel Packaging, 1 Conductors, Bare Stranded Copper Conductor, 2 AWG Conductor, 755 mil OD, 7 Strands, NL-EPR Insulation, CPE Jacket, Black Jacket, 90 deg C
Manuals and Documentation
Features
- Southwire's 5KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where supe- rior electrical properties are desired
- These cables are capable of operating continuously at the conductor temperature not in excess of 105 deg C for normal operation, 140 deg C for emergency overload, and 250 deg C for short circuit conditions
- Rated at -35 deg C for cold bend
| Manufacturer Part Number | 55051499 |
| Brand | Southwire® |
| Manufacturer | Southwire Company |
| Country Of Origin | US |
| Conductor Size | 2 AWG |
| Conductor Type | Bare Stranded Copper |
| Insulation Material | NL-EPR |
| Jacket Color | Black |
| Jacket Material | CPE |
| Number Of Conductors | 1 |
| Outside Diameter | 755 mil |
| Strands | 7 |
| Temperature Rating | 90 deg C |
| Type | MV-105 |
| Alternative Part Number | 17969340 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 Year |
| Standards Approvals | UL Listed | CSA Certified |
| Application | Suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial and where superior electrical properties are desired |
| Packaging Type | Reel |
