SCHNEIDER ELECTRIC

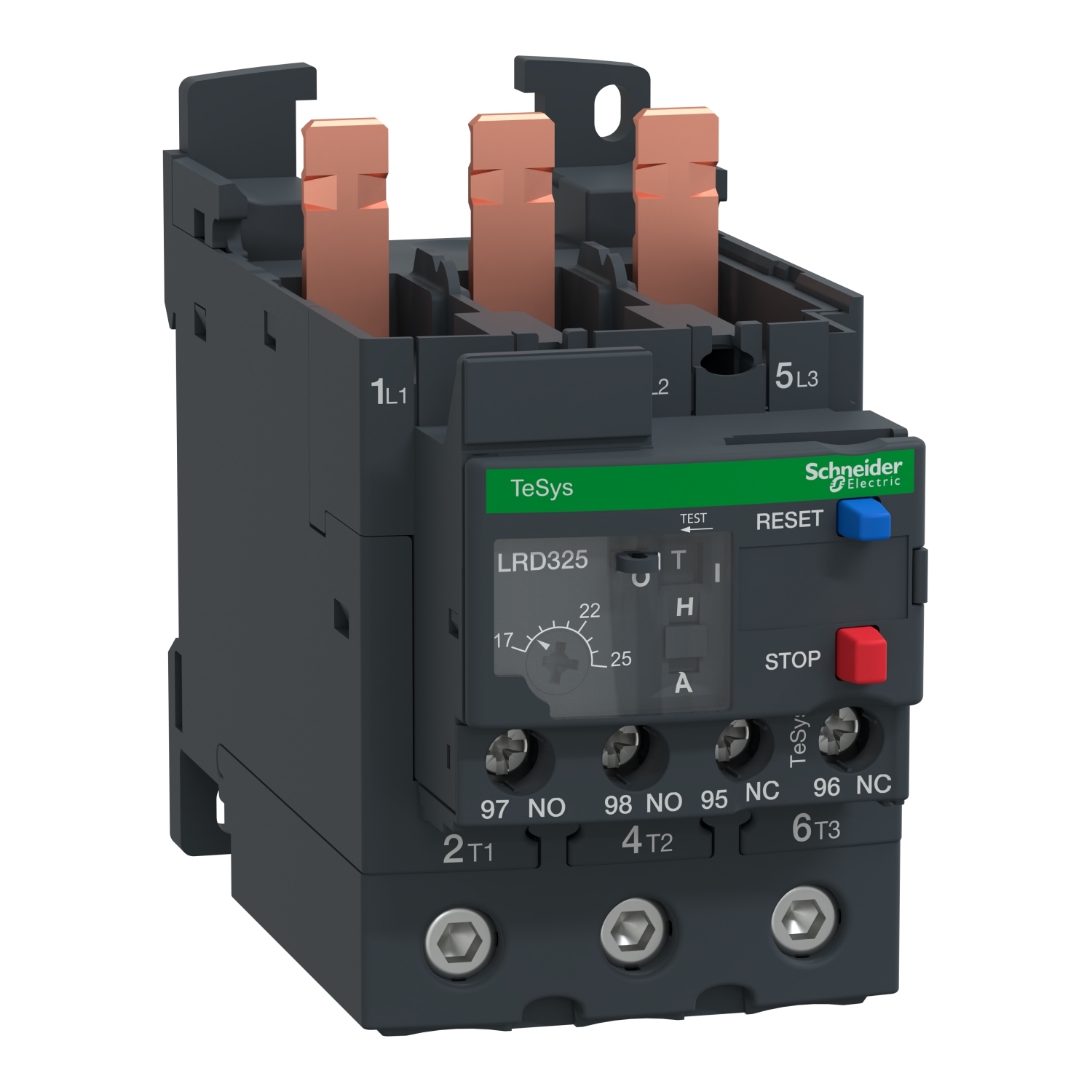

LRD325 TeSys D-Line Bi-Metallic Thermal Overload Relay With Everlink Power Terminal, 16 to 25 A, 1NO-1NC 1 Form A/1 Form B Contact

MFR:
Schneider Electric
MFR #:
LRD325
Item #:
94507

Availability

Location Available Qty
Available Available to Order
$226.66 each

LRD325 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 9-11kW@400V thanks to a thermal range 17-25A, a tripping class 10A and phase unbalance protection. LRD325 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 17-25A, a tripping class 10A and phase unbalance detection, it protects motors 11kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D40A-D65A to form a compact starter. Light and compact, 55mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

Manuals and Documentation
Catalog Number LRD325
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6969238&lang=en-us
GTIN 03389119215473
Cross Reference Products IDEC YC9Z-RHU80A325|LSIS GTK401826|Rockwell 193TCC30|Rockwell TA42DU25|Rockwell TA75DU25|Schneider LR2D3322|Schneider LRD3322|Siemens 3RU11464DB0|Siemens LR2D2555|Telemecan LRD3322
