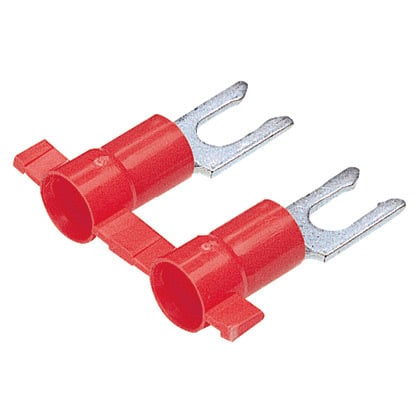

PV18-6LFB-3K Pan-Term Reel Smart Type PV-LFB Reel-Fed Fork Terminal, 22 to 18 AWG Conductor, 0.8 in L, Butted Seam/Funnel Entry/Internal Serration Barrel, Copper, Red
- MFR:
- Panduit
- MFR #:
- PV18-6LFB-3K
- UPC:
- 074983808410
- Item #:
- 941850
PV18-6LFB-3K Pan-Term Reel Smart Type PV-LFB Reel-Fed Fork Terminal, 22 to 18 AWG Conductor, 0.8 in L, Butted Seam/Funnel Entry/Internal Serration Barrel, Copper, Red
- MFR #:
- PV18-6LFB-3K
- UPC:
- 074983808410
- Item #:
- 941850
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$0.3659
each
The PV18-6LFB-3K Reel Smart Terminal is a continuously molded and vinyl fully insulated, locking fork terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Manuals and Documentation
| Catalog Number | PV18-6LFB-3K |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983808410 |
| GTIN | 00074983808410 |
| Item Type | Locking Fork Terminal |
| Size | #6 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
