Telemecanique

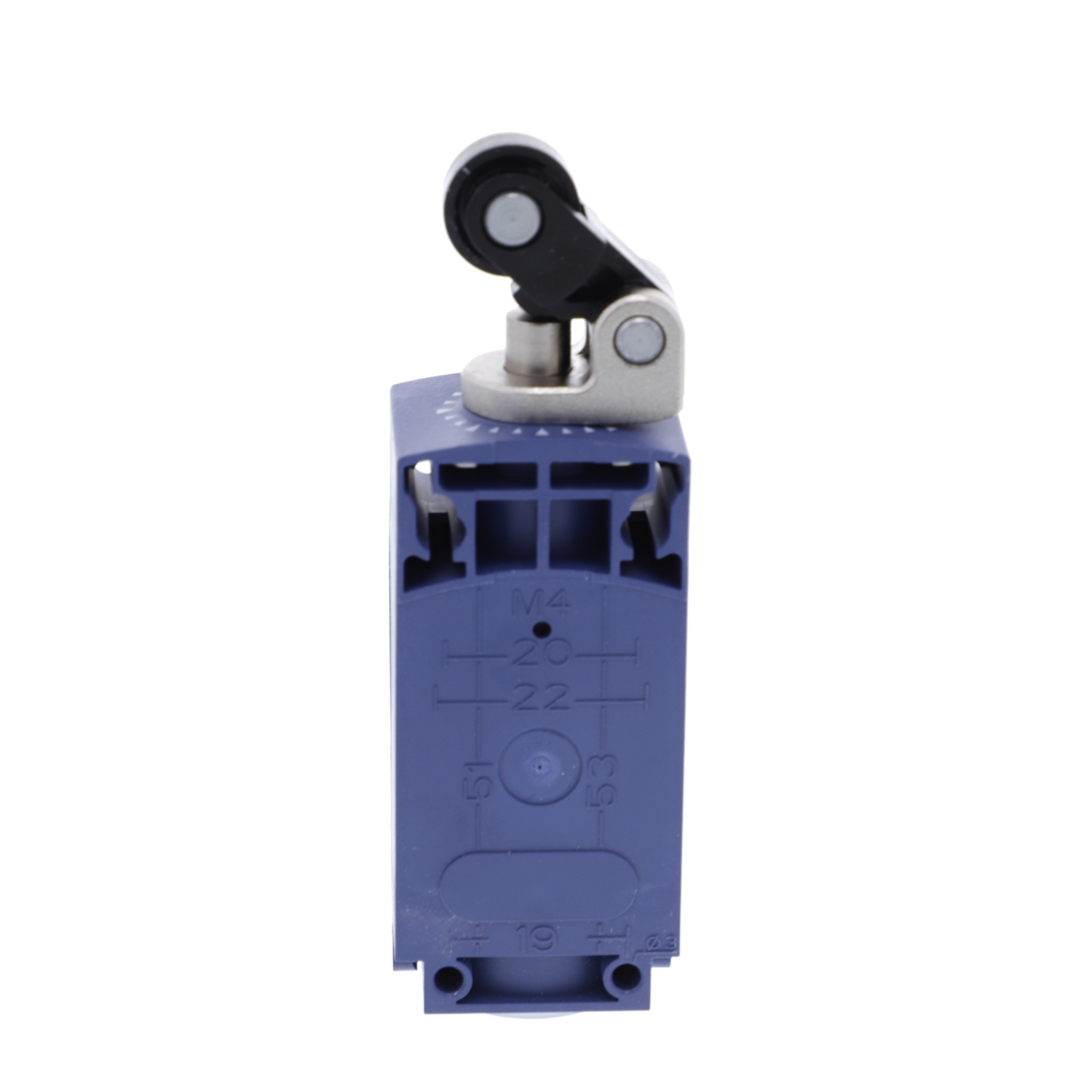

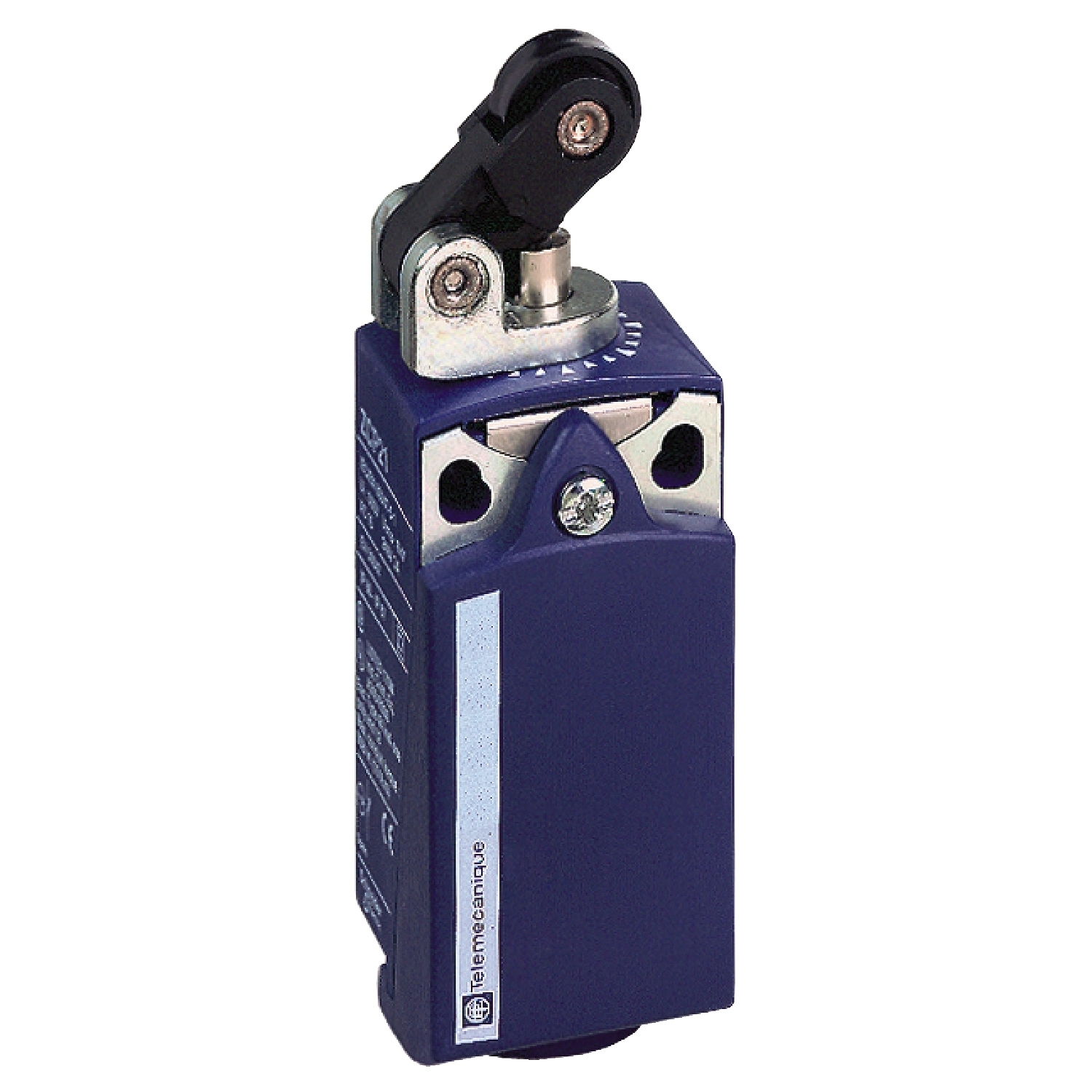

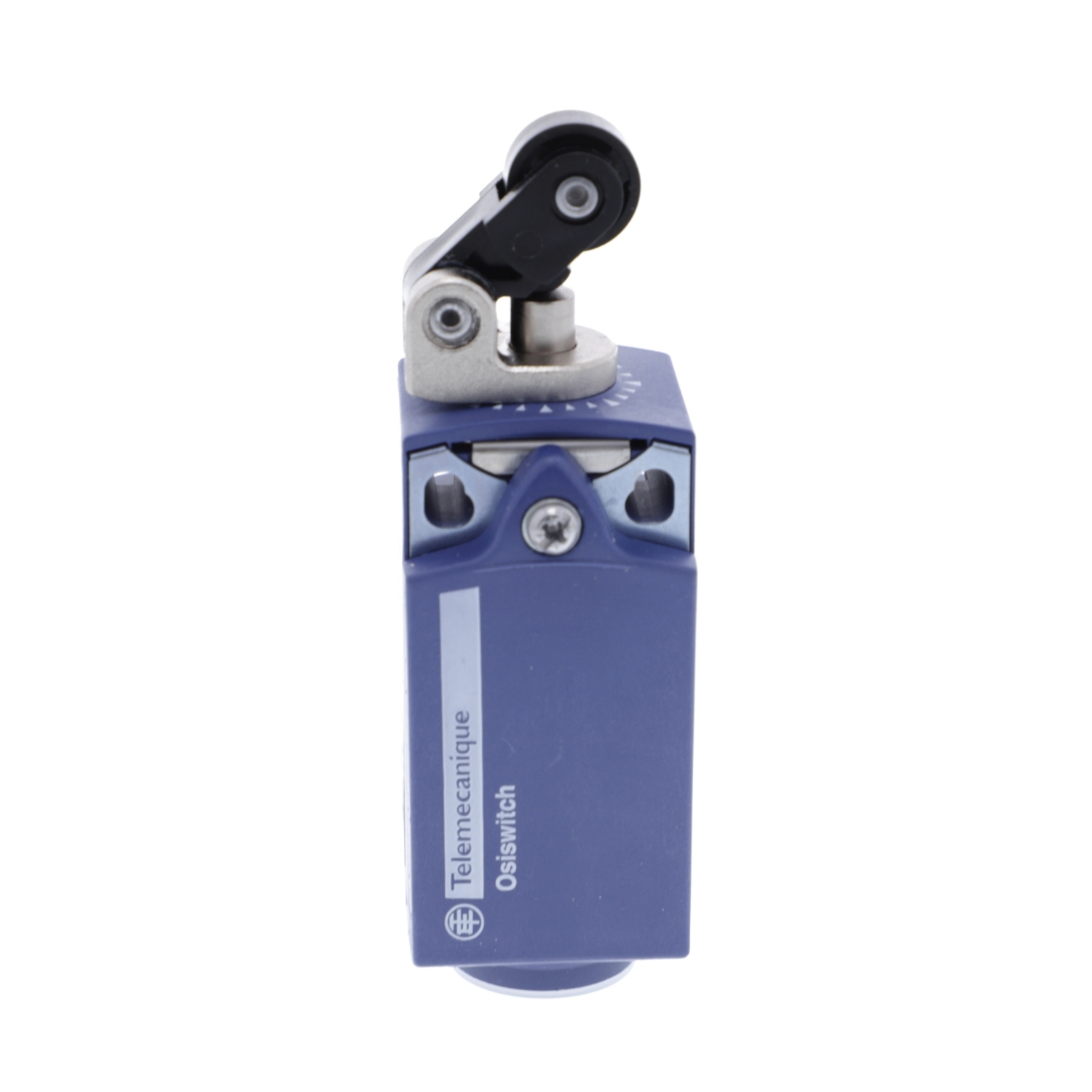

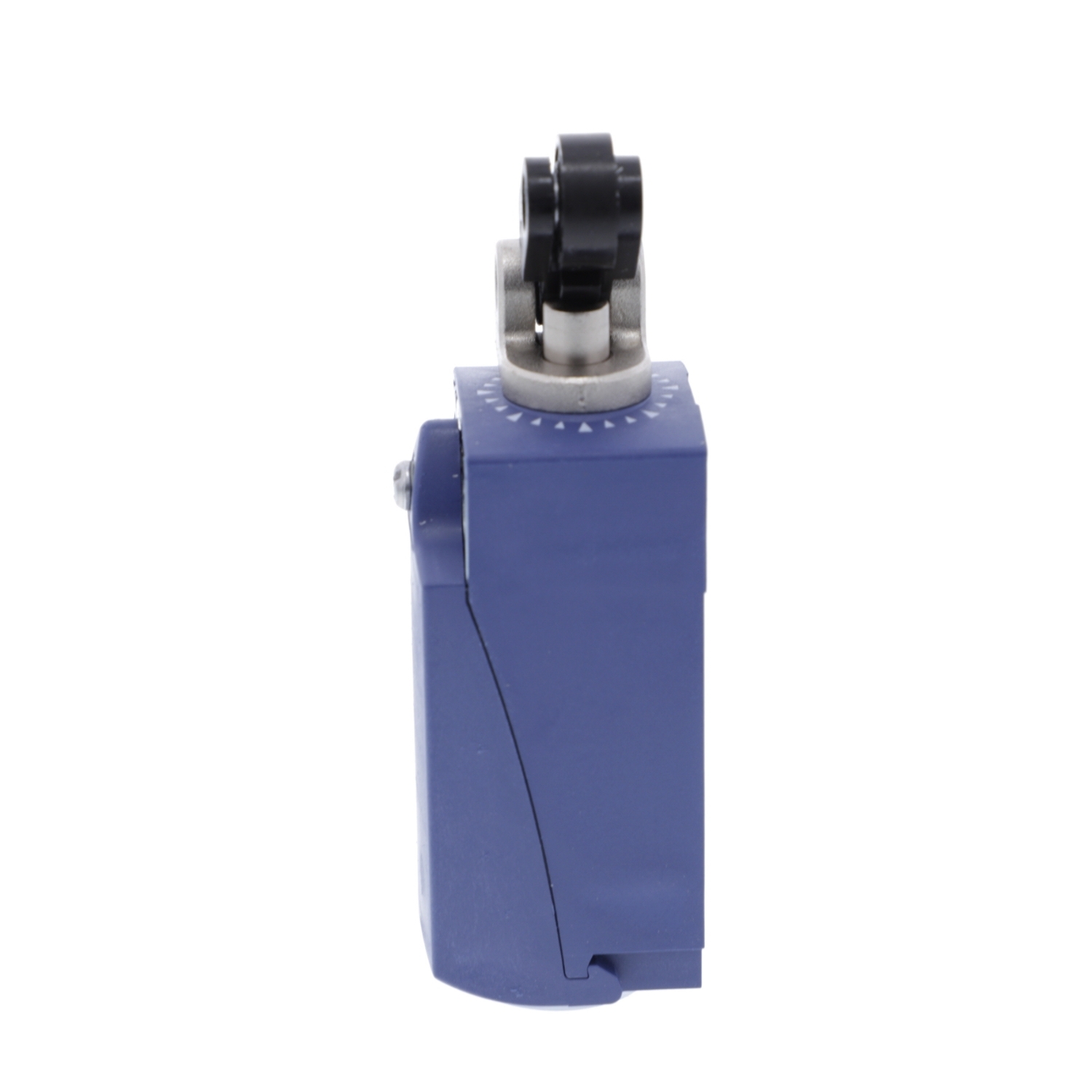

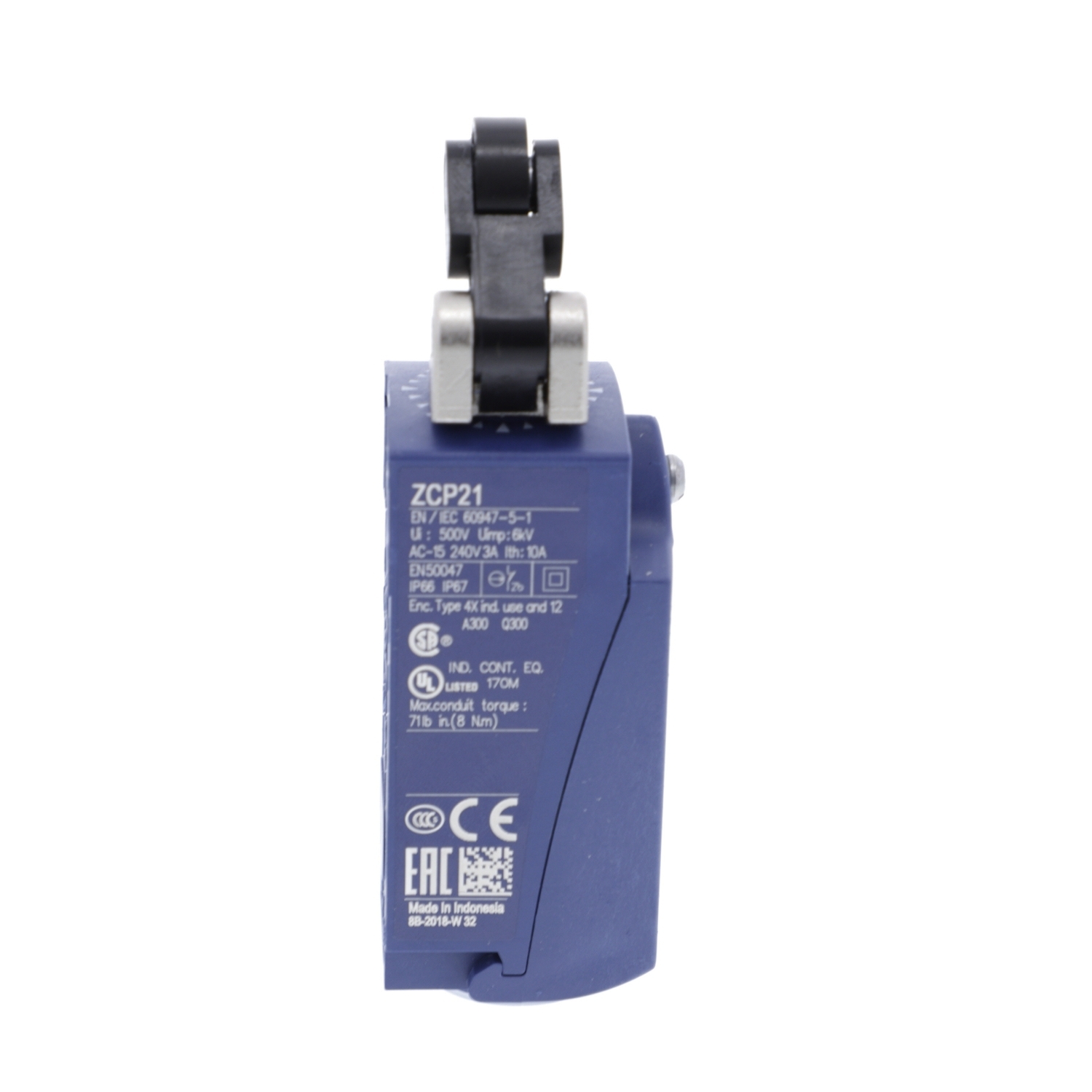

XCKP2121P16 OsiSense Compact Fixed Light Duty Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, 1-Way Horizontal Roller Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKP2121P16
UPC:
785901525042
Item #:
938066

Availability

Location Available Qty
Available Available to Order
$85.58 each

Snap action with positive action mechanism, to simplify tolerancing and dimensional design of your machines Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage High availability of spare parts, thanks to the best-in-class distribution network of the world leader in limit switches Variable composition design allows late modifications on the switch, for example change of connection type or head Complete modularity of contact, body and head for maximum installation flexibility and changes during your project

Manuals and Documentation
Catalog Number XCKP2121P16
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 1 direction;Snap action;By 30 Degrees cam
Actuator Spring return roller lever plunger thermoplastic
Amperage Rating 10
Application COMPACT VARIABLE
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4/6/12/13 IP66/67
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CCC-CSA-UL,EN 60204-1-IEC 60204-1-EN 60947-5-1-IEC 60947-5-1-CSA C22.2 NO 14-UL 508,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,CLASS II IEC 61140-CLASS II NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857154&lang=en-us
UPC 785901525042
GTIN 03389110201789
Item Type Limit switch
Size 1.18
Operating Temperature -25-70 A Degrees C
Voltage Rating 240VAC/250VDC
