Rittal

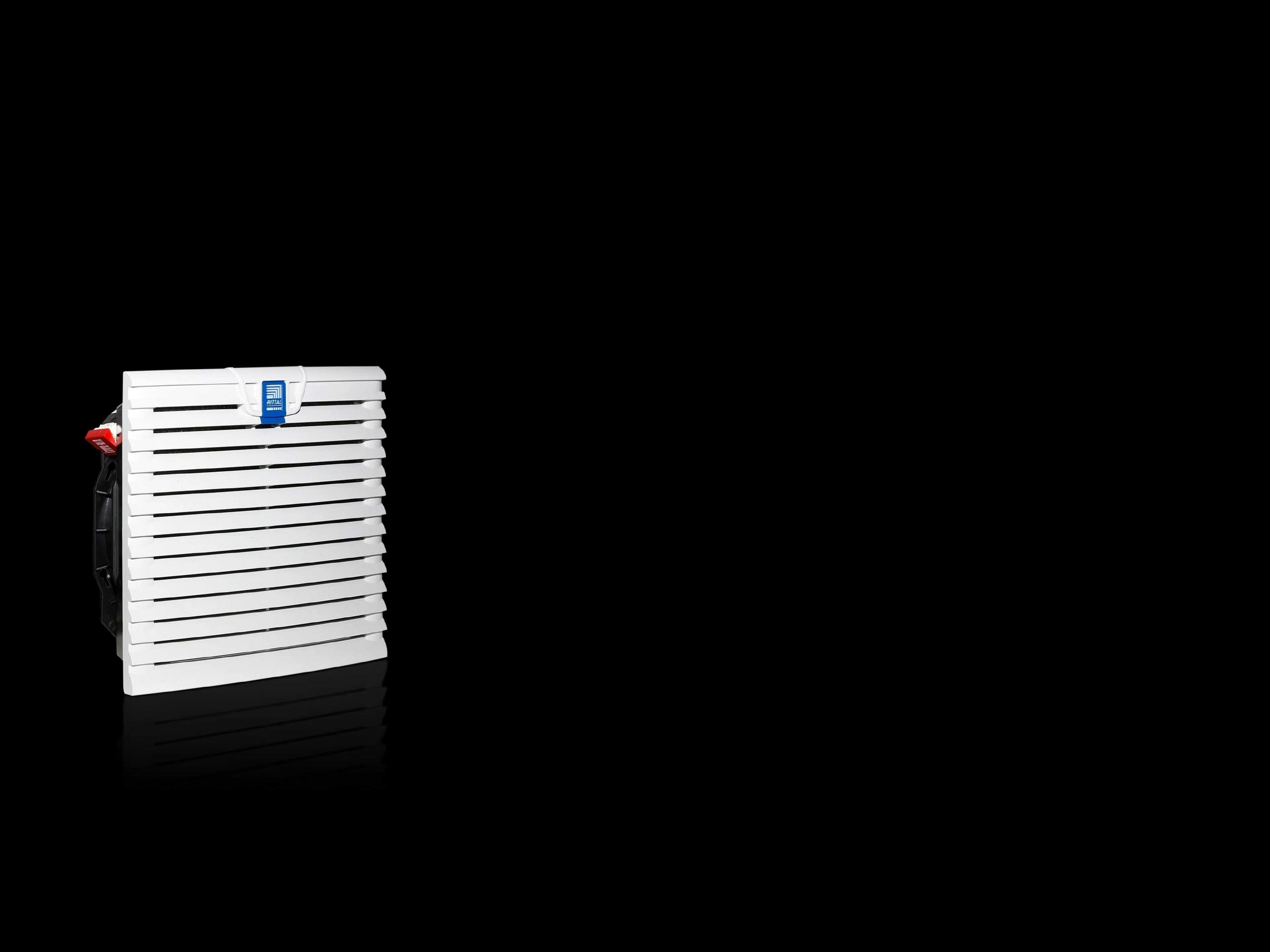

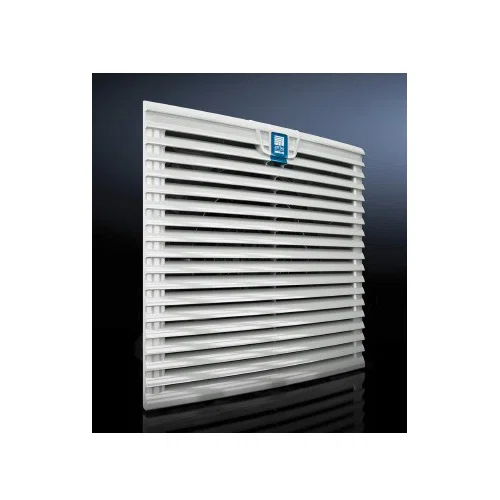

3240500 TopTherm 1-Phase Fan and Filter Unit With EC Technology, 200 to 240 V AC, 0.12 A, 11 W Power Rating, 105.9 cfm Air Flow, NEMA 3/3R/4/4X/12/IP54/55/56 Enclosure

MFR:
Rittal
MFR #:
3240500
UPC:
639889868984
Item #:
937486

Availability

Location Available Qty
Available Available to Order
$591.40 each

Rittal TopTherm Fan and Filter Unit, 1-Phase, 200 to 240 V AC, 0.12 A, 11 W Power, 47 dB Sound Level, 105.9 cfm Air Flow, Surface/Threaded Mounting, AC Motor, NEMA 3/3R/4/4X/12/IP54/55/56 Enclosure, 10 in W x 0.98 in D x 10 in H Dimensions

Manuals and Documentation

Features

  • Energy efficient version of the TopTherm filter fan units with diagonal fan technology
  • Fans 3240.500 to 3245.510 may be controlled and monitored
  • The fan may be activated via the control interface with speed signal output integrated as standard and monitoring of the fan speed and function is supported
  • Energy efficient version of the RTT fan and filter units with EC technology
  • From 180 cmh with integral control interface (0 to 10 VAC/PWM input and tachosignal output) to regulate and monitor the fan
Manufacturer Part Number 3240500
Brand Rittal
Manufacturer Rittal
UPC 639889868984
Amperage Rating 0.12 A
Dimensions 10 in W x 0.98 in D x 10 in H
Enclosure Type NEMA 3/3R/4/4X/12/IP54/55/56
Mounting Type Surface/Threaded
Type 1-Phase
Voltage Rating 200 to 240 V AC
Alternative Part Number 12105237
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals RoHS Compliant | UL 20130211-E76083 | CSA C22.2 File No. 14 | CAN/CSA C22.2 File No. 94 | UL 508A | cUL Listed
Application Climate Control Solutions
Includes Filter Mat
Air Flow Rate 105.9 cfm
Motor Type AC
Power Rating 11
Sound Level 47 dB
