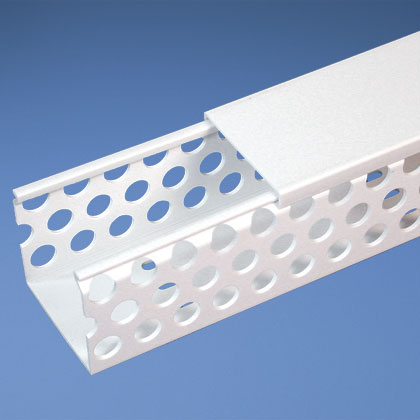

The D3X3WH6 Panduct Lead-Free PVC Round Hole Wiring Duct is designed with multiple rows of holes to retain and support wire at variable heights and positions. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. 3 x 3 (76.2 mm x 76.2 mm) and 6' (1.83 m) long. Cover sold separately. Color White.
Manuals and Documentation
| Catalog Number | D3X3WH6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Round hole design has multiple rows of holes to retain and support wire at variable heights and positions. |
| Color | White |
| Connection | Mounting Holes |
| Material | PVC |
| Slot Style | Hole-/slot punching |
| Special Features | Round Hole |
| Standard | UL Recognized, CSA Approved, CE Approved |
| UPC | 074983213306 |
| GTIN | 00074983213306 |
| Item Type | Base Wiring Duct |
| Length | 6.00 |
| Length UOM | Foot |
| Width | 3.25 |
| Width UOM | Inch |
| Size | 3.00 x 3.00 |
| Thickness | 0.1 IN |
