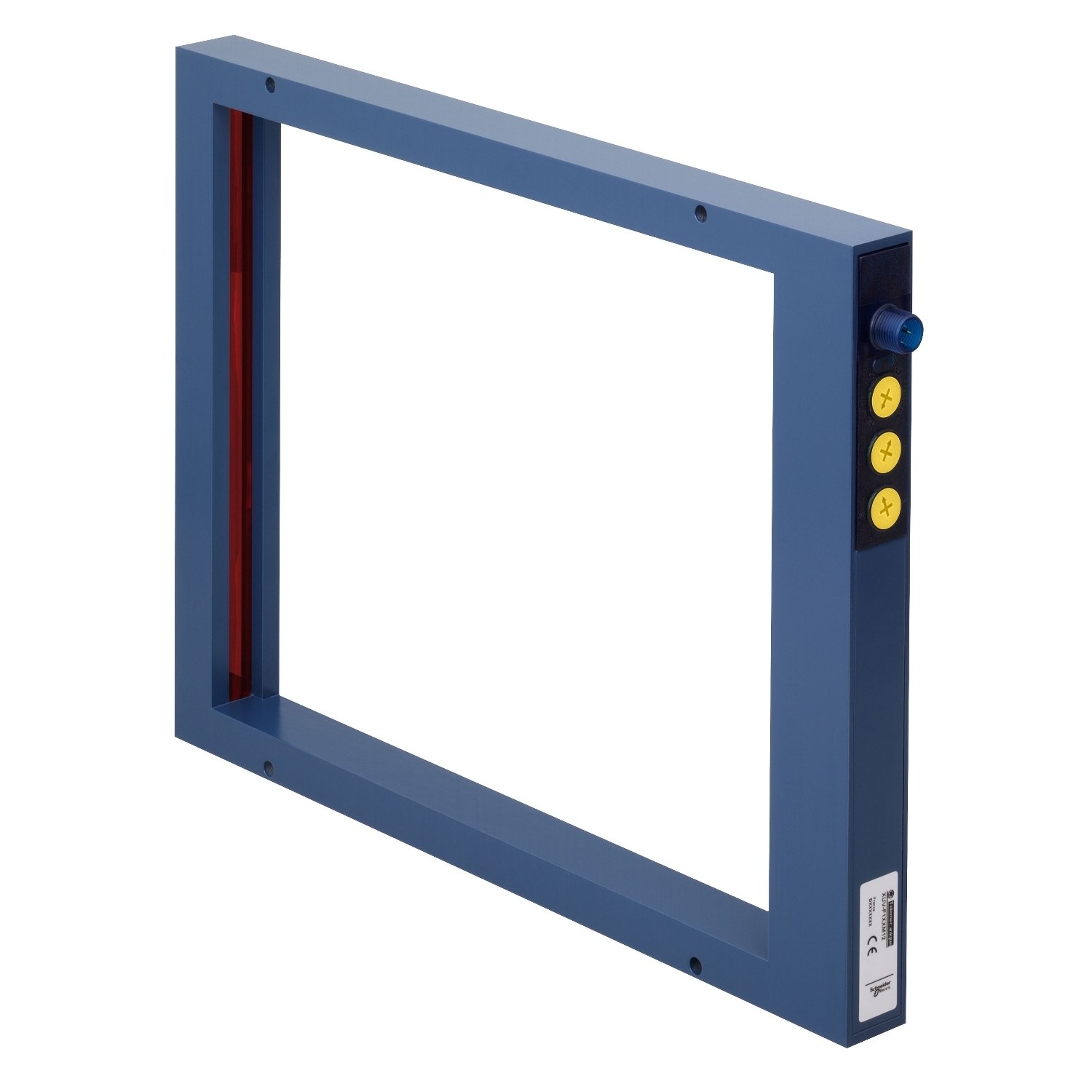

XUVF250M12 XU Series Photo Electric Sensor Frame, Infrared Sensing Beam, 5 s Response, NPN/PNP NO-NC/Programmable Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XUVF250M12
- UPC:
- 785901615484
- Item #:
- 933053
XUVF250M12 XU Series Photo Electric Sensor Frame, Infrared Sensing Beam, 5 s Response, NPN/PNP NO-NC/Programmable Output
- MFR #:
- XUVF250M12
- UPC:
- 785901615484
- Item #:
- 933053
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a frame design. It has a through-beam detection system. It supports a 4mm dynamic mode, 6mm static mode detection and 1 normally opened or 1 normally closed programmable PNP or NPN solid state discrete output. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP65 rated product. It is a photoelectric sensor with a rated supply voltage of 24V DC with reverse polarity protection, a no-load current consumption of =150mA and a switching frequency of >5000Hz. It has infrared emission and 2 LEDs. The enclosure is made of painted aluminium with Altuglas lens. Its dimensions are 335mm (Width) x 25mm (Depth) x 230mm (Height) and weighs 1.32kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and CULus.
Manuals and Documentation
| Catalog Number | XUVF250M12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Dynamic detection of passage of objects;static detection of passage of objects |
| Connection | 1 male connector M12, 4 pins |
| Enclosure | IP65 CONFORMING TO IEC 60529,PAINTED ALUMINIUM |
| Operating Cycles | > 5000 Hz |
| Output | PNP or NPN;1 NO or 1 NC programmable;Discrete;Solid state |
| Special Features | Alarm 1 LED red);output state 1 LED amber) |
| Standard | CE-CULUS,IP65 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=875962&lang=en-us |
| UPC | 785901615484 |
| GTIN | 03389110168853 |
| Item Type | Application material handling;Thru beam;Frame;Photo-electric sensor |
| Size | 0.98 |
| Operating Temperature | 0-60 A Degrees C |
| Voltage Rating | 24 V DC reverse polarity protection |
