Hubbell Wiring Device - Kellems

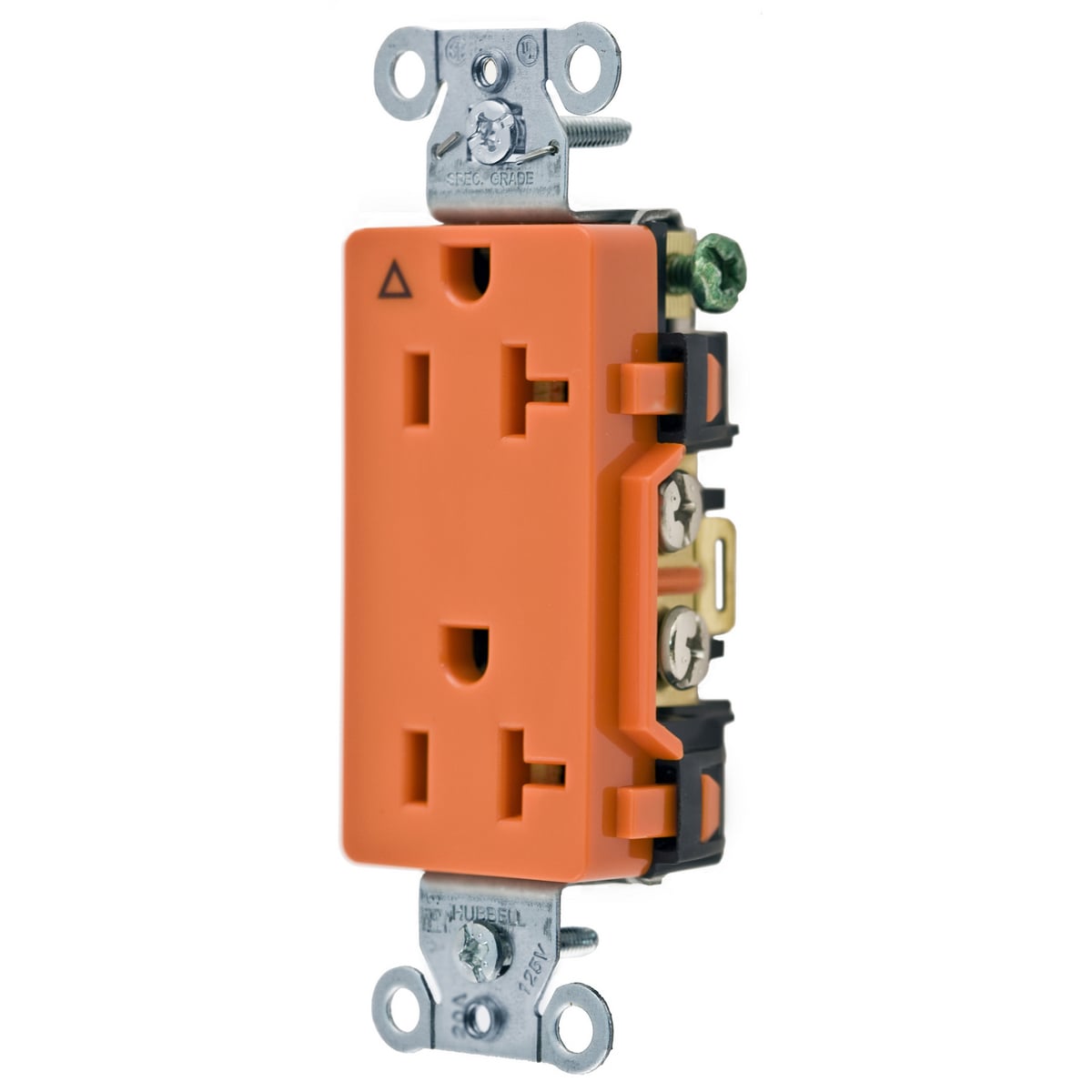

IG20DR 1-Phase Decorator Duplex Isolated Ground Standard Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Orange

MFR:
Hubbell Wiring Device-Kellems
MFR #:
IG20DR
UPC:
783585147864
Item #:
927705

Availability

Location Available Qty
Available Available to Order
$12.19 each

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than everHubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.

Manuals and Documentation
Catalog Number IG20DR
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 20
Application Commercial Grade
Color Orange
Connection Back and Side Wired Screw Terminals
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Isolated Ground
Standard Certified to CSA C22.2, No. 42;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585147864
GTIN 00783585147864
Item Type Standard Duplex
Size 1.29 in x 1.06 in x 3.28 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 2,500 W
Wire Size #12 AWG to #10 AWG
