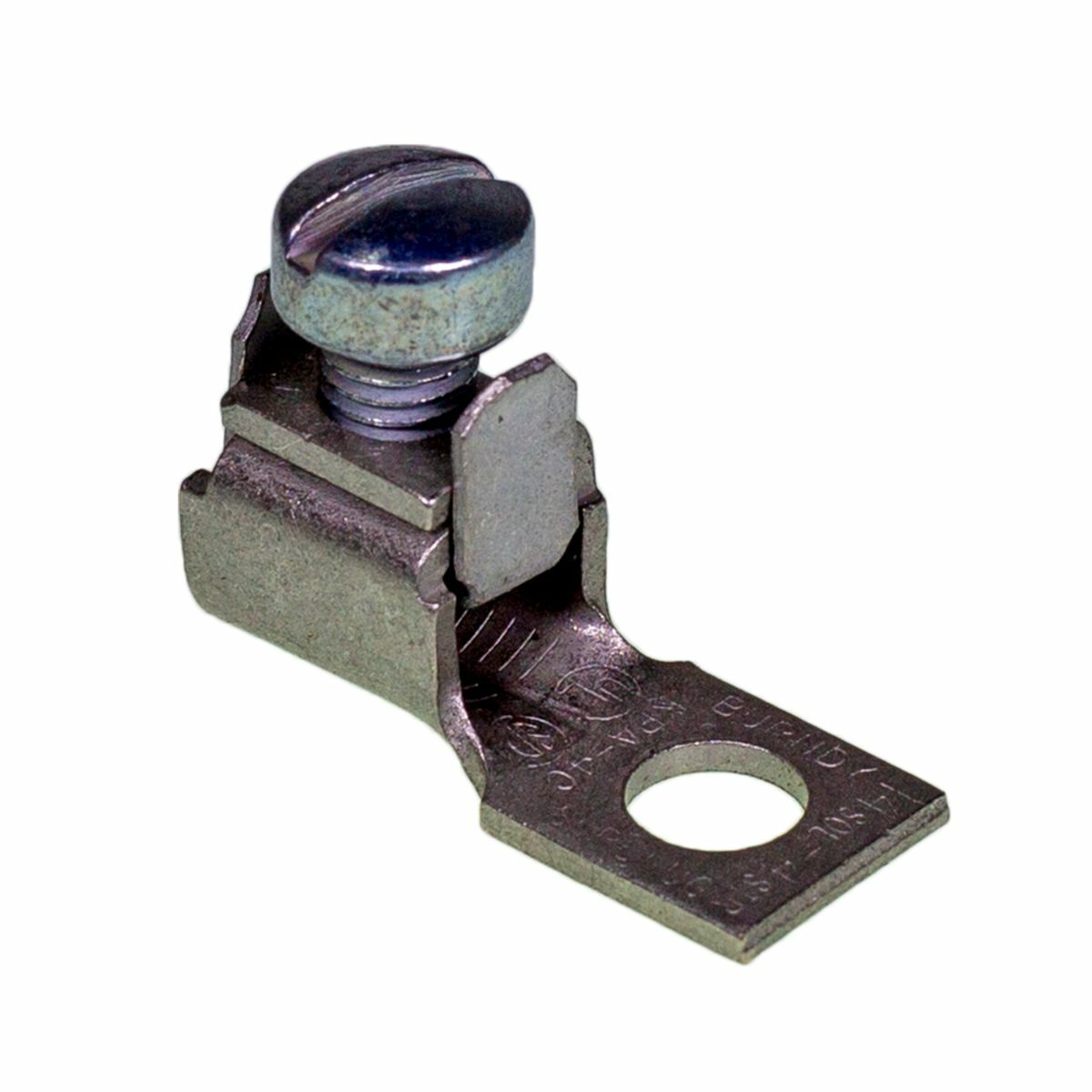

KPA4C Mechanical Bolted Lug and Terminal, 14 to 4 AWG Stranded Solid Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KPA4C
- UPC:
- 781810351352
- Item #:
- 9234
KPA4C Mechanical Bolted Lug and Terminal, 14 to 4 AWG Stranded Solid Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Copper
- MFR #:
- KPA4C
- UPC:
- 781810351352
- Item #:
- 9234
Availability
| Location | Available Qty |
|---|---|
| Available | 111 ea |
$6.59
each
Manuals and Documentation
| Catalog Number | KPA4C |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications |
| Material | Copper |
| Special Features | Features: High Copper Alloy Tin-Plated Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications, The Tongue And Body Are A One-Piece Design, The Pressure Bar Equalizes Pressure Over The Conductor And Prevents The Screw From Cutting Into The Cable, Stud/bolt Size: 5/16 IN, Stud/bolt Hole Size: 1/4 IN, Installation Torque: 35 IN-LB, Set Screw Type: Slot Robertson, Dimension N: 0.3 IN, Length: 1.2 IN, Width: 0.5 IN, Height: 0.94 IN, Tongue Width : 0.5 IN, Dimension D: 0.59 IN, Dimension K: 0.27 IN, Dimension T: 06 IN |
| Standard | UL 486A-486B |
| UPC | 781810351352 |
| GTIN | 00781810351352 |
| Item Type | Bolted Lugs & Terminals |
