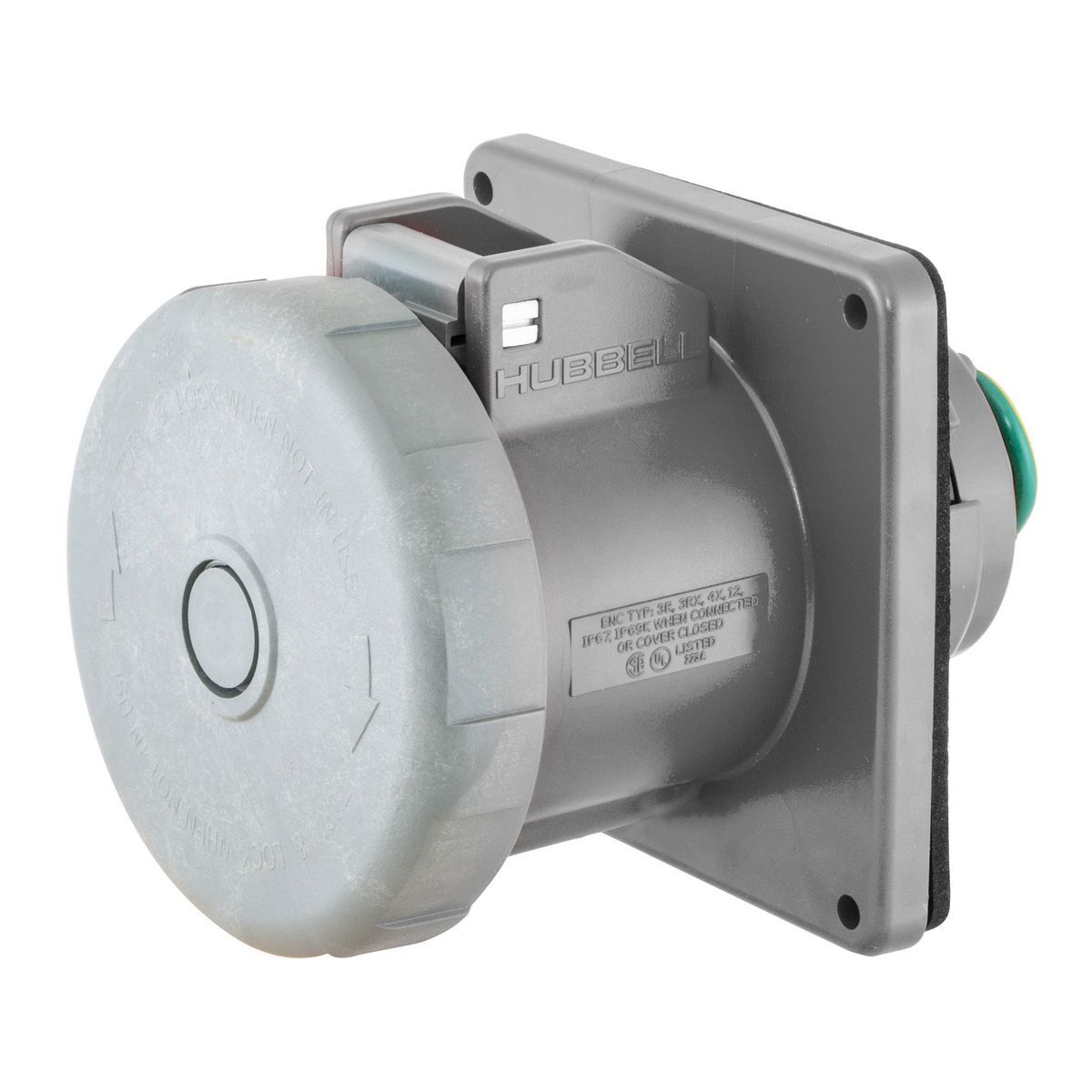

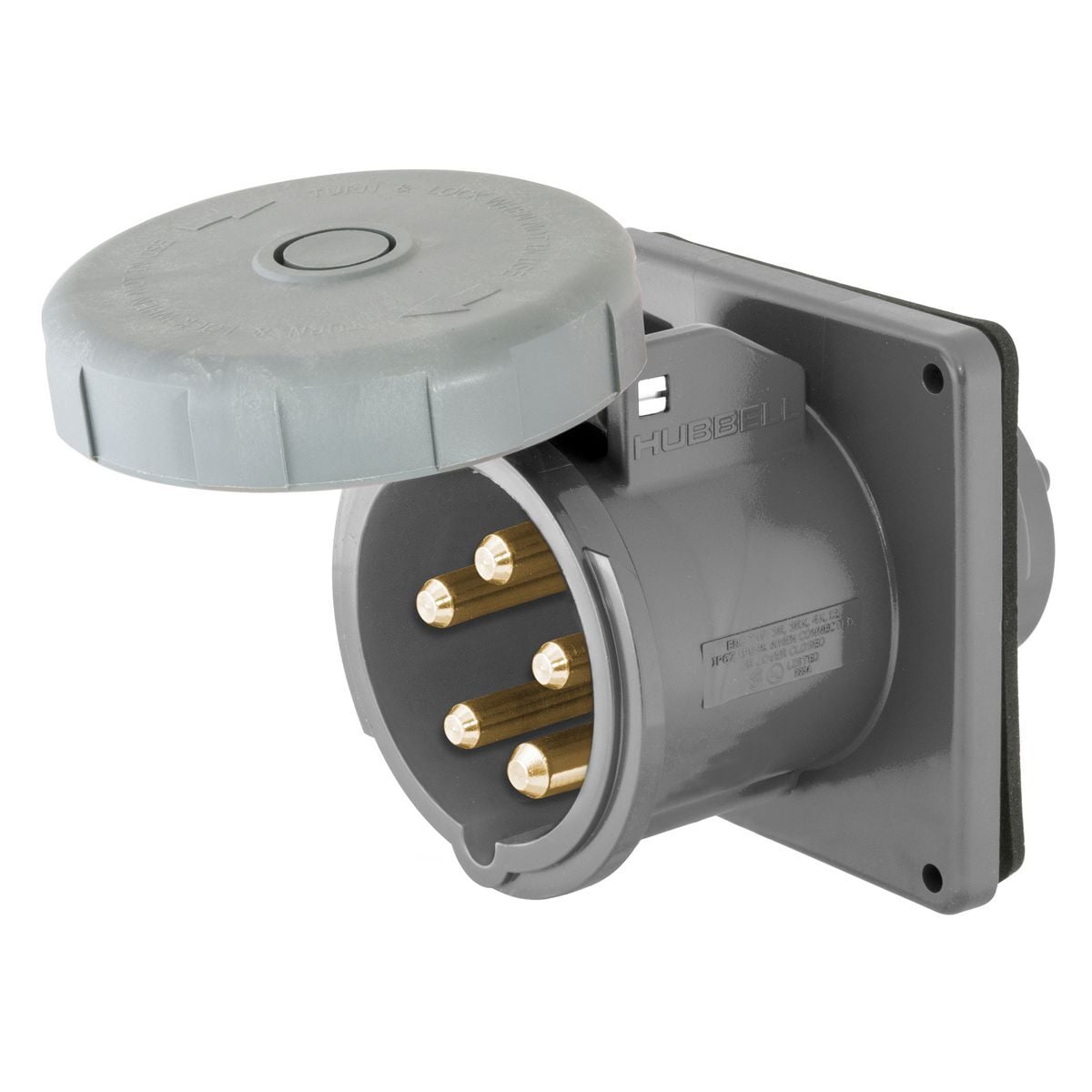

M5100B9R 3-Phase Flanged Male Hull Mount Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 120/208 V AC, 100 A, 4 Poles, 5 Wires, Gray
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- M5100B9R
- UPC:
- 783585510019
- Item #:
- 92018
M5100B9R 3-Phase Flanged Male Hull Mount Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 120/208 V AC, 100 A, 4 Poles, 5 Wires, Gray
- MFR #:
- M5100B9R
- UPC:
- 783585510019
- Item #:
- 92018
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,516.06
each
Corrosion Resistant Devices that Withstand the Most Abusive Environments - Hubbell offers a superior grade of 100A IEC Pin and Sleeve designed for use in the most demanding environments. These devices feature nickel plated solid brass pins for long life and reliable electrical contact in the most corrosive environments. They have a high visibility yellow supertough nylon housing. The heavy duty external cord clamps provide maximum cord retention to maintain secure terminations. The screws and fasteners are made from stainless steel.
Manuals and Documentation
| Catalog Number | M5100B9R |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | Marine Wiring Devices |
| Color | Gray |
| Connection | Pressure Screw Terminals |
| Insulation | Insulated Body |
| Material | Thermoplastic |
| Mounting | Screw |
| Number of Poles | 4 |
| Number of Wires | 5-Wire |
| Phase | 3 |
| Standard | CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032 |
| UPC | 783585510019 |
| GTIN | 00783585510019 |
| Item Type | Watertight Inlet |
| Size | Standard Sized Product |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact |
| Voltage Rating | 3 Phase Y 120/208 |
| Wattage | 20,800 |
| Wire Size | #3 AWG to #1/0 AWG |
