Appleton

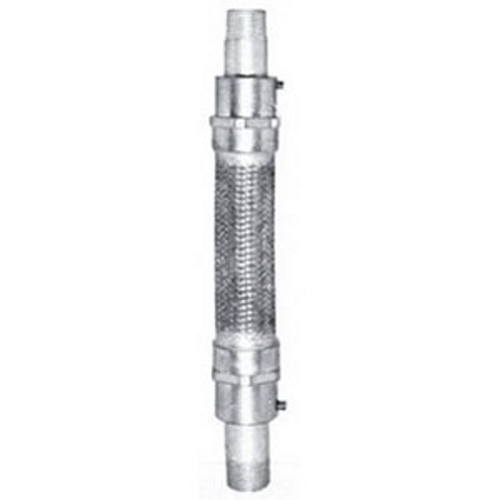

EXJF24 Unilets Dust-Ignitionproof Explosionproof Flexible Fixture Hanger, 3/4 in, For Use With Threaded Metallic Conduit, Brass/Bronze

MFR:
Appleton Electric
MFR #:
EXJF24
UPC:
781381107969
Item #:
919103

Availability

Location Available Qty
Available Available to Order
$551.59 each

Explosionproof Flexible Fixture Hanger, Constructional Feature Explosionproof, Dust Ignitionproof, Raintight, Trade Size 3/4 IN, Flex Length 4 IN, Overall Length 11.06 IN, Material Brass Inner Core, Bronze Outer Braid, Brass End Fitting, Finish Natural, Enclosure Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III, Approval UL E10444/886, CSA, Inclusion (2) Female Hub, Removable Close Nipple, Setscrew, Maximum Load 120 LBS

Manuals and Documentation
Catalog Number EXJF24
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For HID, Incandescent And Fluorescent Lighting Fixtures
Material Outer Bronze Braid, Inner Brass Core With Insulating Liner And Brass End Fittings
Special Features Supplied with two female hubs, each with a removable close nipple; Can be used to make male to male, female to male or female to female; Set screw with screwdriver slot allows locking of conduit; Prevents fixture stem from turning; Explosionproof, dust-Ignition proof; For use with threaded metal conduit
Standard Class I, Division 1 And 2, Groups A, B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
RoHS Indicator Contact Manufacturer
UPC 781381107969
GTIN 00781381107969
Item Type Flexible Fixture Hanger Coupling
Length 3.2000
Length UOM Inch
Width 6.0000
Width UOM Inch
Height 1.0000
Height UOM Inch
Weight 1.940
Weight UOM Pounds
