BK/GMC-100-R Electronic Medium Small Dimension Time Delay Fuse, 100 mA, 250 V AC/32 V DC, 35 A at 10 kA Interrupt, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- BK/GMC-100-R
- UPC:
- 051712642125
- Item #:
- 916986
BK/GMC-100-R Electronic Medium Small Dimension Time Delay Fuse, 100 mA, 250 V AC/32 V DC, 35 A at 10 kA Interrupt, Cylindrical Body
- MFR #:
- BK/GMC-100-R
- UPC:
- 051712642125
- Item #:
- 916986
Availability
| Location | Available Qty |
|---|---|
| Available | 243 ea |
$8.8707
each

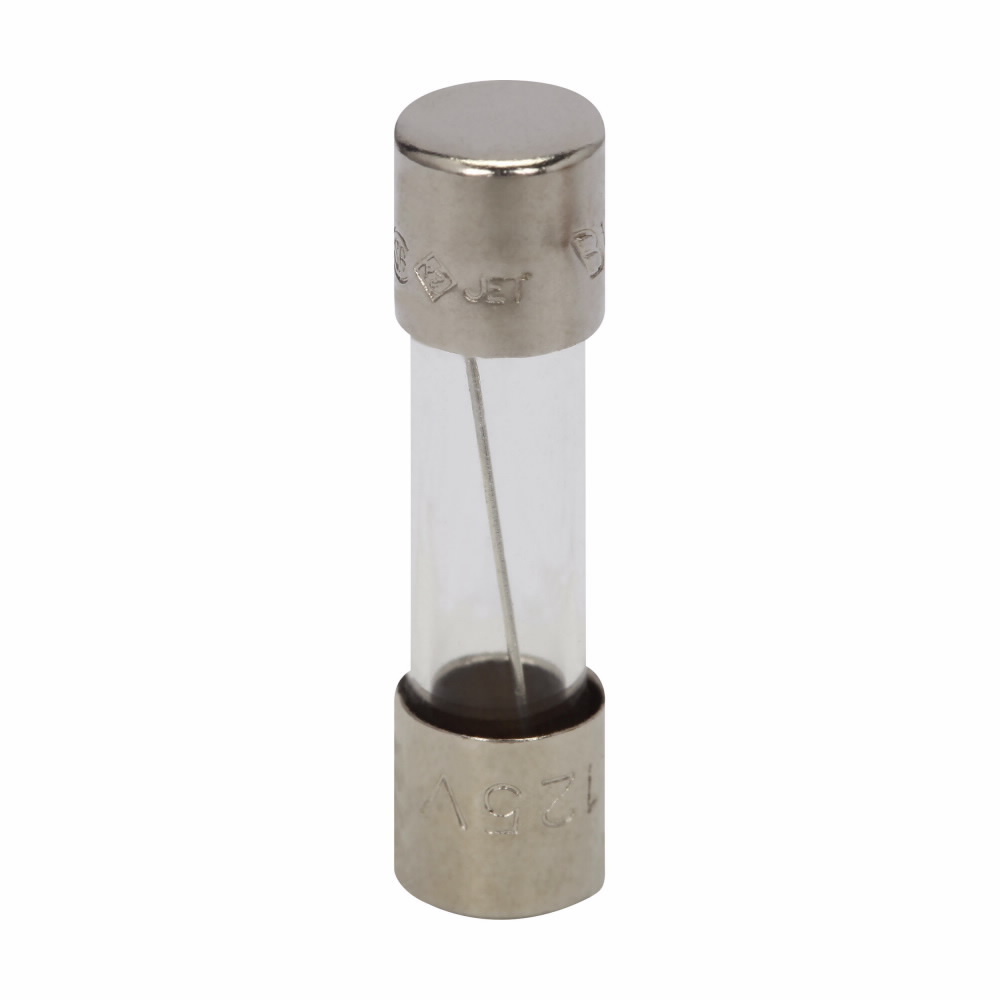

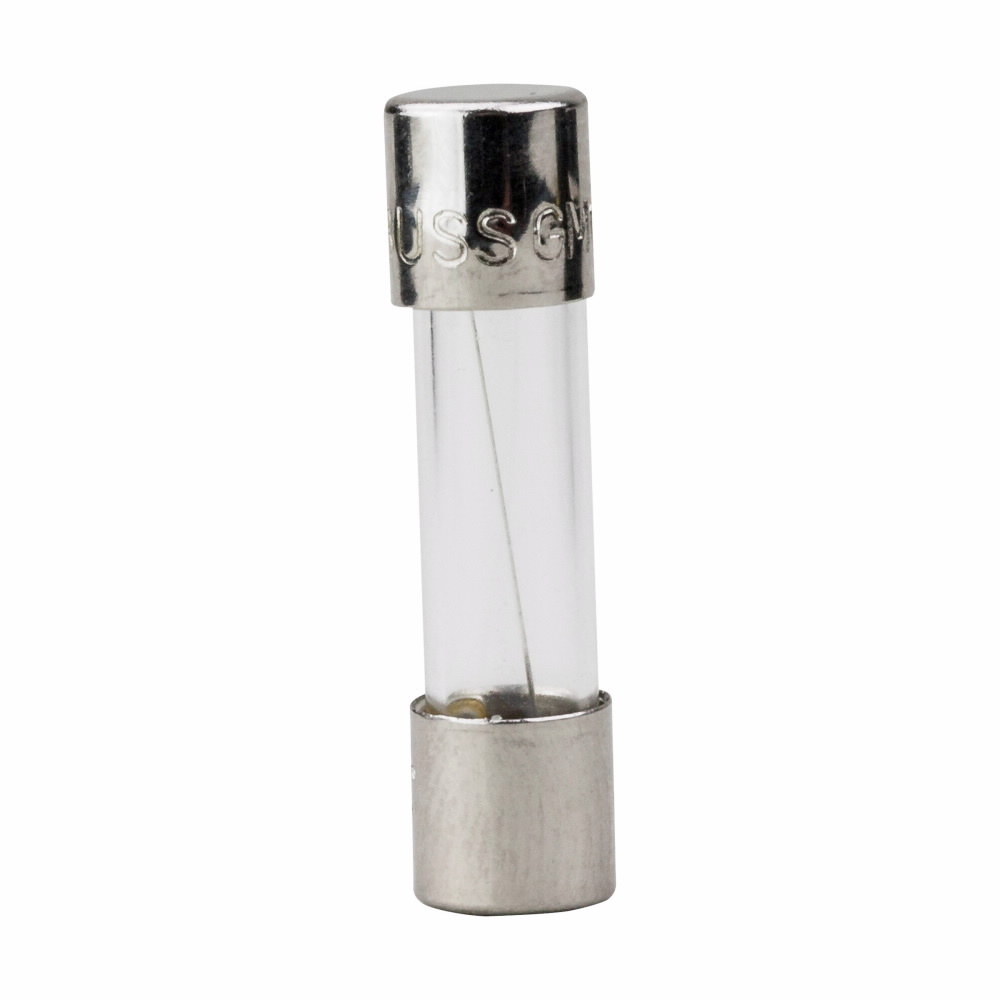

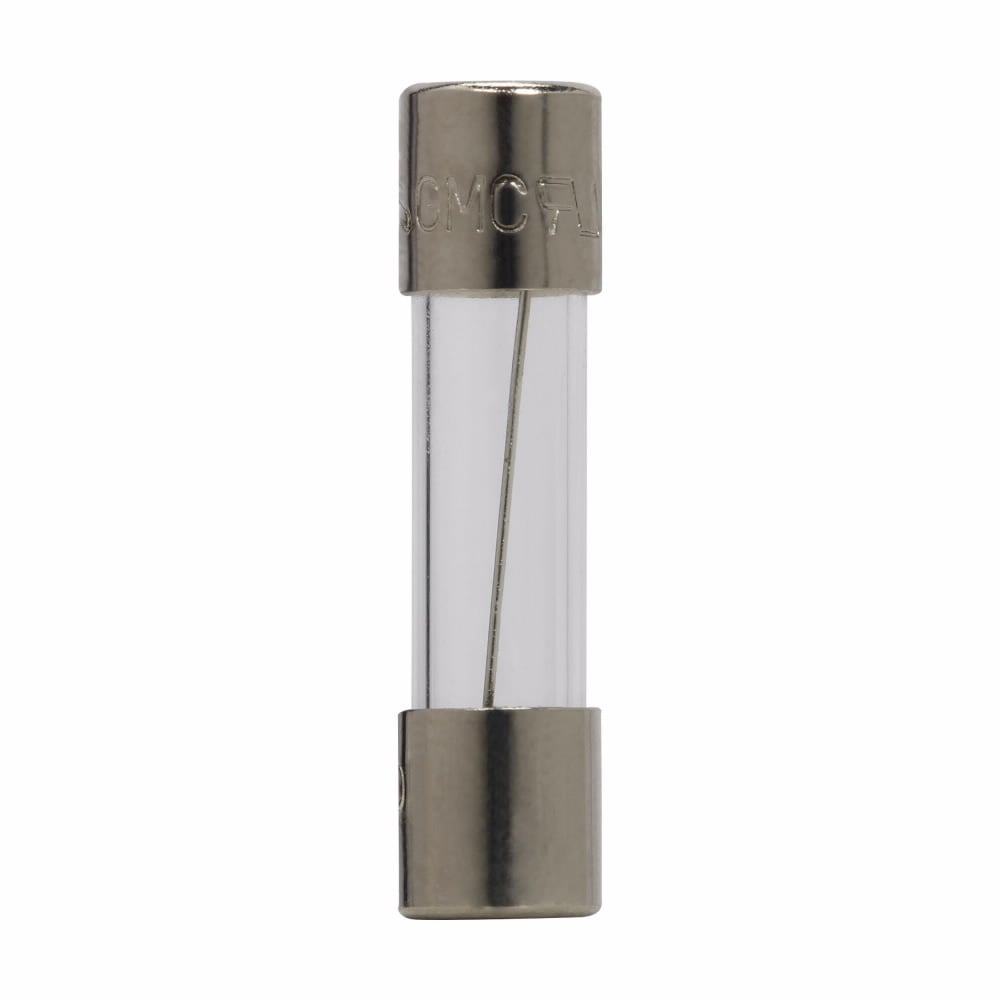

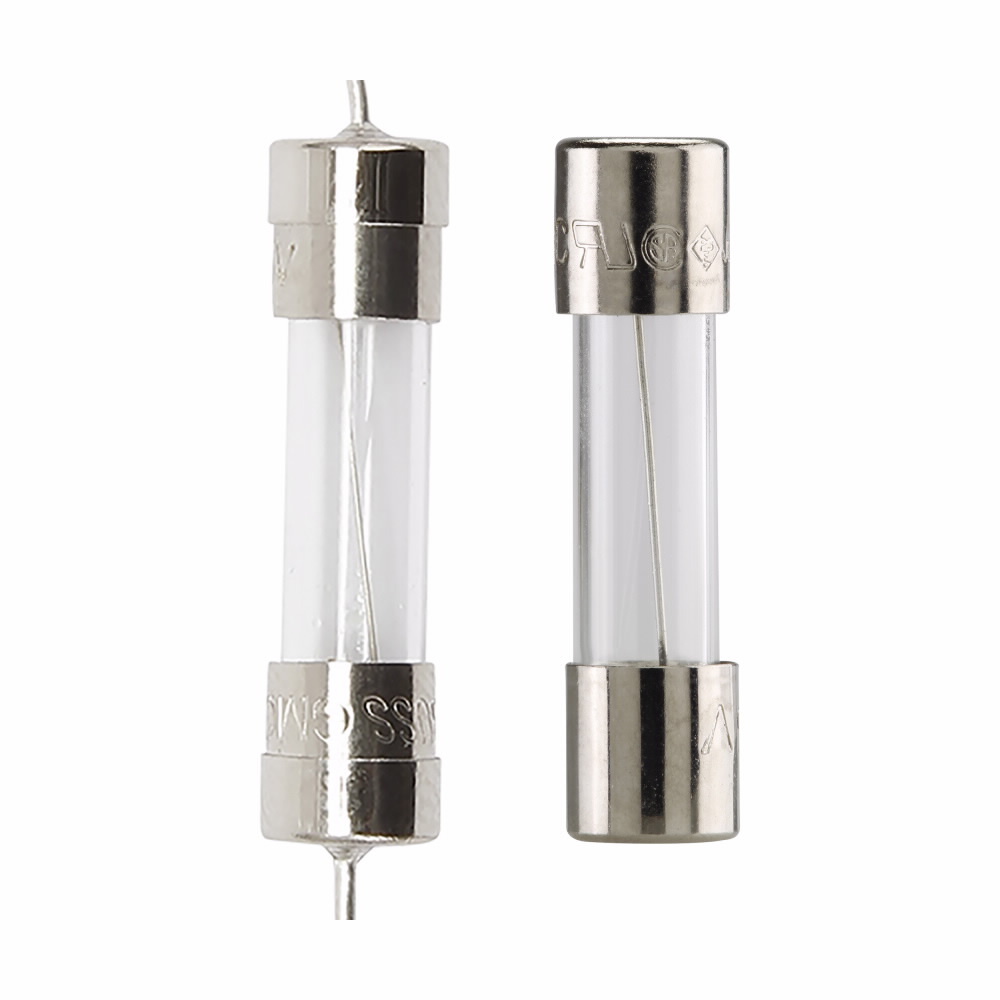

Medium time delay, glass tube 5 mm x 20 mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Also available with axial leads for thru-hole installation. Eatons GMC medium time delay, glass tube 5mm x 20mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
| Catalog Number | BK/GMC-100-R |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | China |
| Made in USA | No |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 35 AIC at 250 Vac|10 kAIC at 125 Vac |
| Material | Glass tube|Nickel-plated brass end cap construction |
| Response Time | 60 min at 135%, 2 min at 200% |
| Standard | RoHS Compliant,CE Marked |
| UPC | 051712642125 |
| GTIN | 00051712642125 |
| Item Type | Time-delay fuse |
| Voltage Rating | 250 Vac, 32 Vdc (self certified) |
