EATON

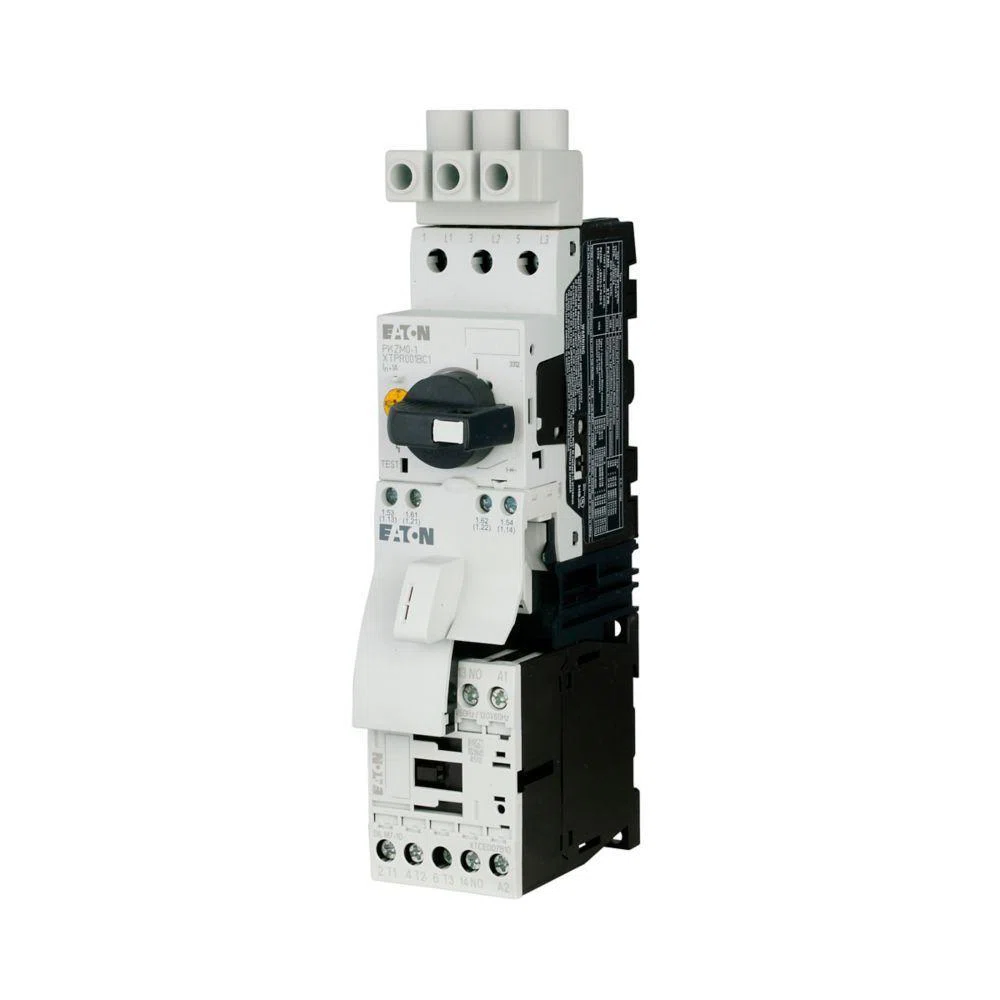

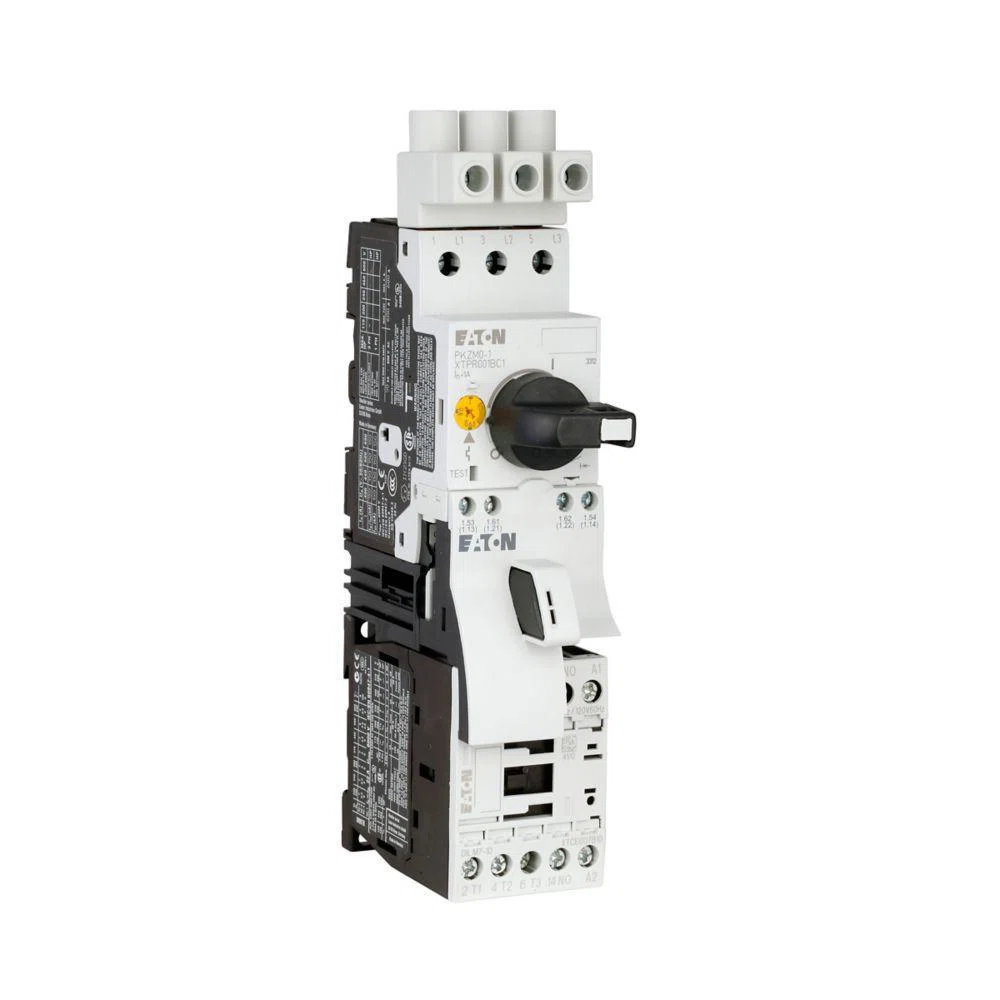

XTFC032BCTD Full Voltage Non-Reversing Combination IEC Motor Control, 24 V DC V Coil

MFR:
Eaton
MFR #:
XTFC032BCTD
UPC:
782116606535
Item #:
916077

Availability

Location Available Qty
Available Available to Order
$1,237.61 each

Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.

Manuals and Documentation

Features

  • ON/OFF rotary handle with lockout provision
  • Visible trip indication
  • Test trip function
  • Mounting plates
  • Class 10 overload protection
  • Built-in heater and magnetic trip elements to protect the motor
  • Phase loss sensitivity
  • Type 2 coordination
  • Ambient compensated up to 140 deg F
  • Control inputs located at front of starter for easy access and wiring
  • Wide range of coils
  • Short circuit trip at 14 times the maximum setting of the FLA adjustment dial
  • UL 508 Type F and Type E CMC high fault short-circuit ratings
  • 45 mm frame at 7 to 15 A contactor
Manufacturer Part Number XTFC032BCTD
Brand EATON
Manufacturer Eaton
UPC 782116606535
Country Of Origin DE
Amperage Rating 32 A
Dimensions 4.89 in L x 1.78 in W x 10.5 in H
Series XT Series
Type Full Voltage Non-Reversing
Alternative Part Number 9209630
Manufacturer Item Status Active
Country USA
Standards Approvals IEC 60947-4-1,UL Listed file E245398,CE Marked
Application Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Includes Line Side Adapter and XTPAXTPCB Mechanical Connection Element
Auxiliary Contact Rating 1NO-1NC
Coil Voltage 24 V DC
Connection Type Mechanical
Control Type ON/OFF Rotary Handle
Full Load Current 25 to 32 A
Phase 3
