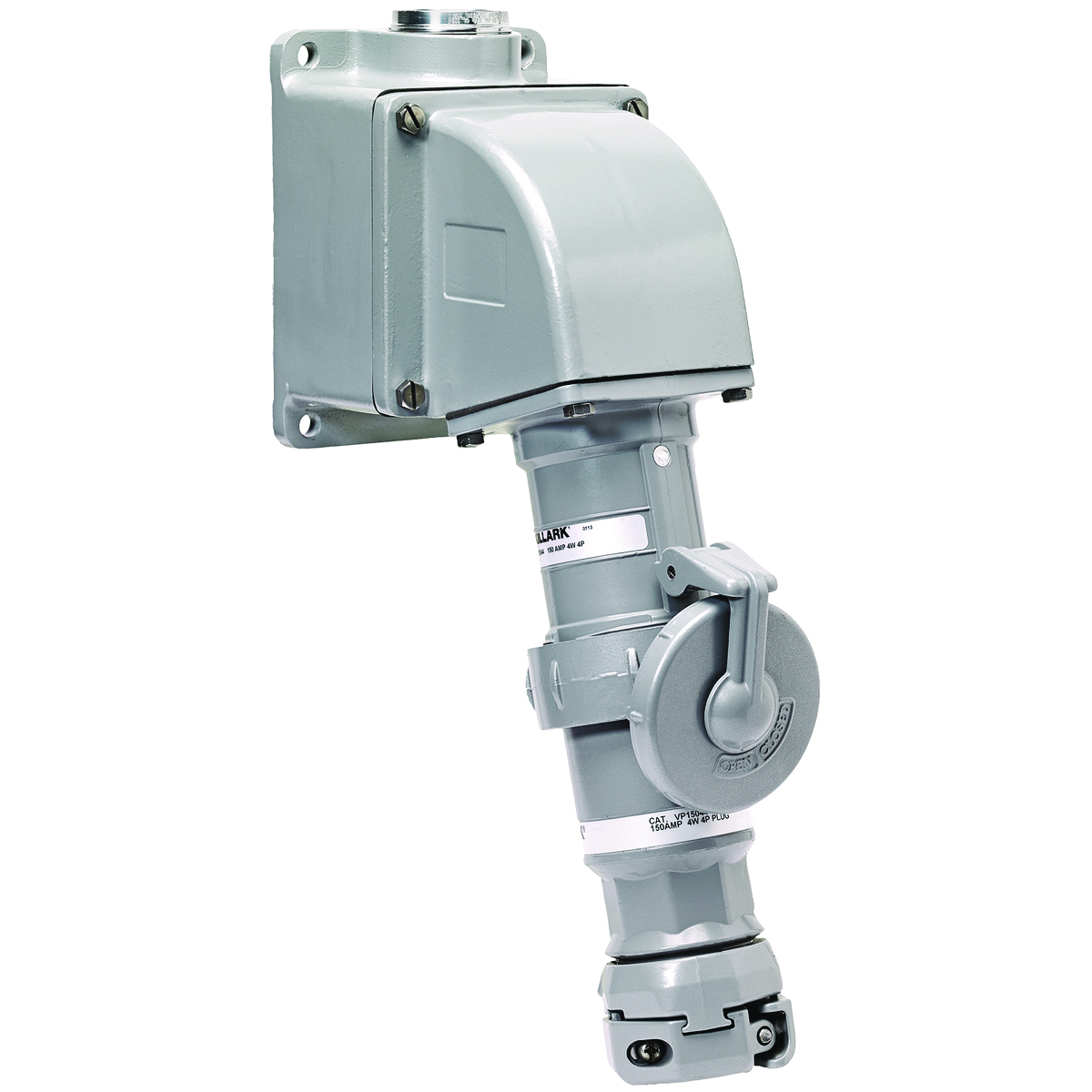

VR1042E6 Type E Style II Dead End Receptacle and Back Box, 600 V AC/250 V DC, 100 A, 4 Poles, 3 Wires, Gray
- MFR:
- Killark, a Hubbell affiliate
- MFR #:
- VR1042E6
- UPC:
- 783936835228
- Item #:
- 916035
VR1042E6 Type E Style II Dead End Receptacle and Back Box, 600 V AC/250 V DC, 100 A, 4 Poles, 3 Wires, Gray
- MFR #:
- VR1042E6
- UPC:
- 783936835228
- Item #:
- 916035
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,505.56
each
Manuals and Documentation
| Catalog Number | VR1042E6 |
| Manufacturer | Killark, a Hubbell affiliate |
| Brand | KILLARK |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 100 |
| Application | VERSAMATE metallic pin and sleeve receptacles are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous, or corrosive areas in such industrial applications as: pulp and paper mills; electrical power plants; petrochemical plants; wastewater treatment; marine, docks, ports; construction sites; breweries; refineries; chemical plants; grain facilities; textile manufacturing; and food processing facilities. |
| Color | Gray |
| Material | Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel |
| NEMA Rating | 3, 4, 4X |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Special Features | Exclusive patented "Breech-Lock" cap serves as either flip lid or screw cover. Receptacle is NEMA 3R with lid snapped shut or NEMA 4X with lid turned shut or when VERSAMATE plug is inserted and locking ring tightened. Patented notch in cap arm holds cap open for easy plug insertion or maintenance. Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact. VERSAMATE receptacles use the same "Increased Safety" terminals and funnel design as VERSAMATE plugs. Exclusive "blind" receptacle mounting holes prevent moisture from entering box via thread cavities. Boxes come with a green grounding crew. |
| Standard | UL, CSA |
| UPC | 783936835228 |
| GTIN | 00783936835228 |
| Item Type | Pin & Sleeve |
| Size | 12-9/16" H x 6-7/64" W x 8-5/8" D |
| Environmental Conditions | Wet and hazardous locations |
| Voltage Rating | 631;250 |
| Wire Size | Regular stranding: #4-#2; extra flex: #4-#2 |
