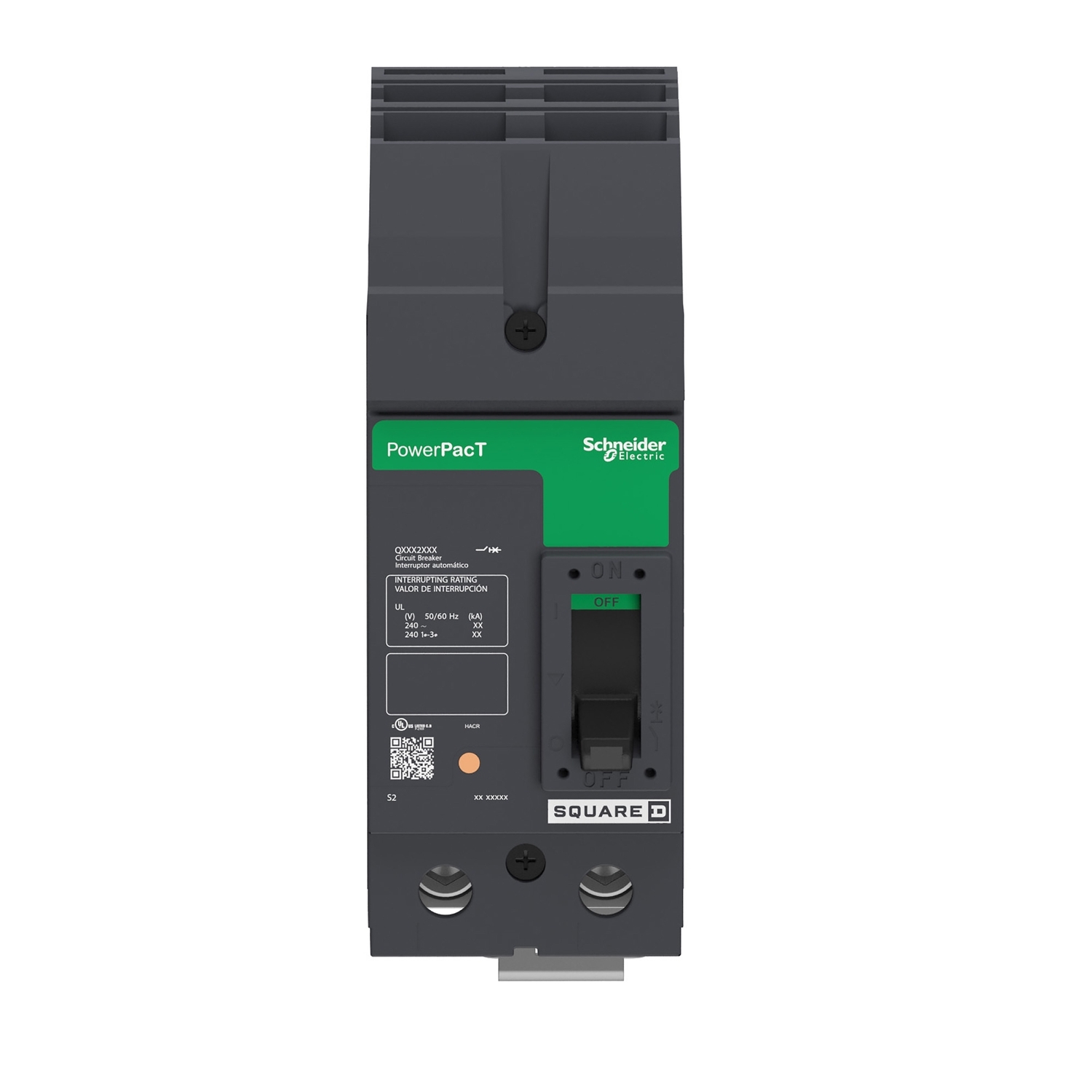

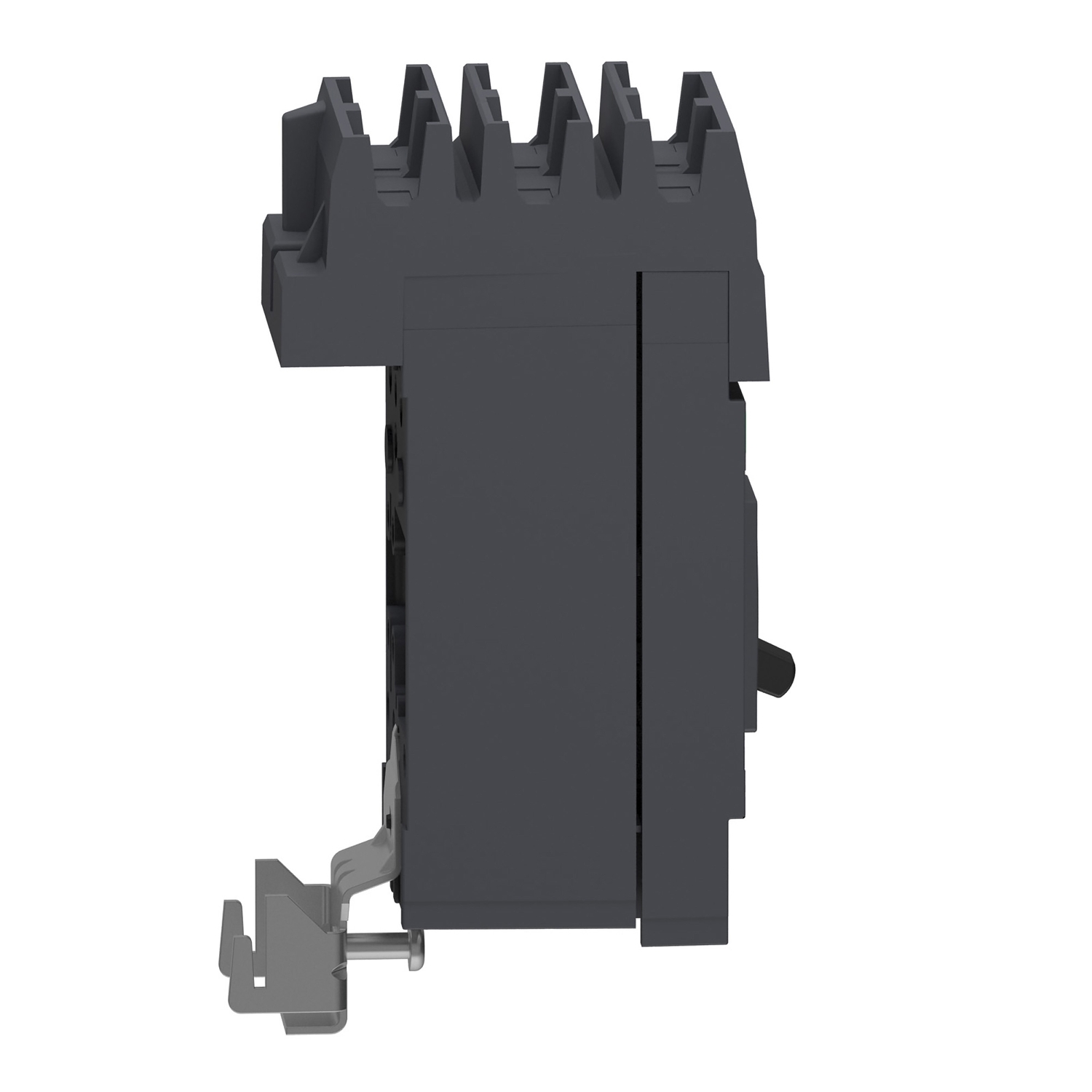

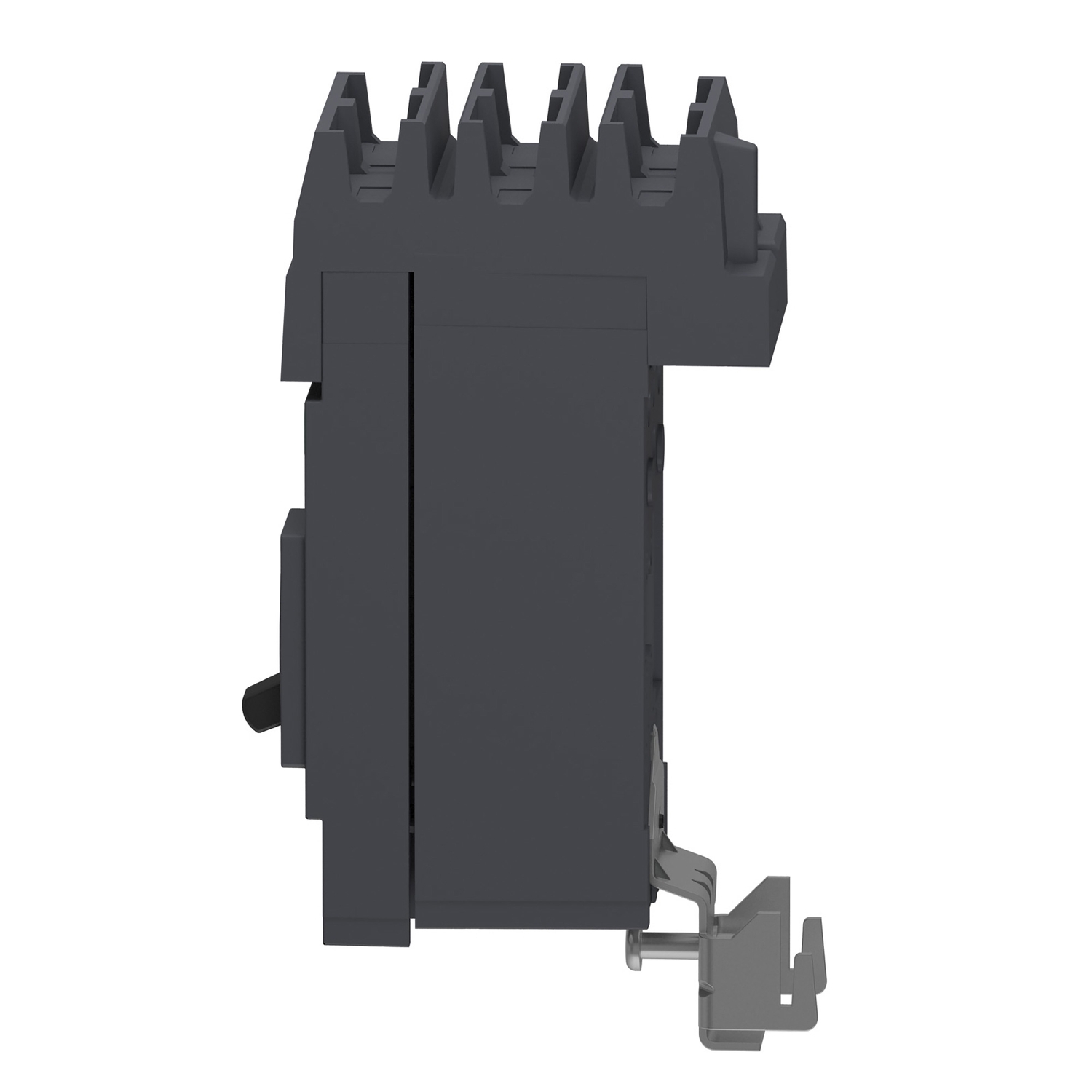

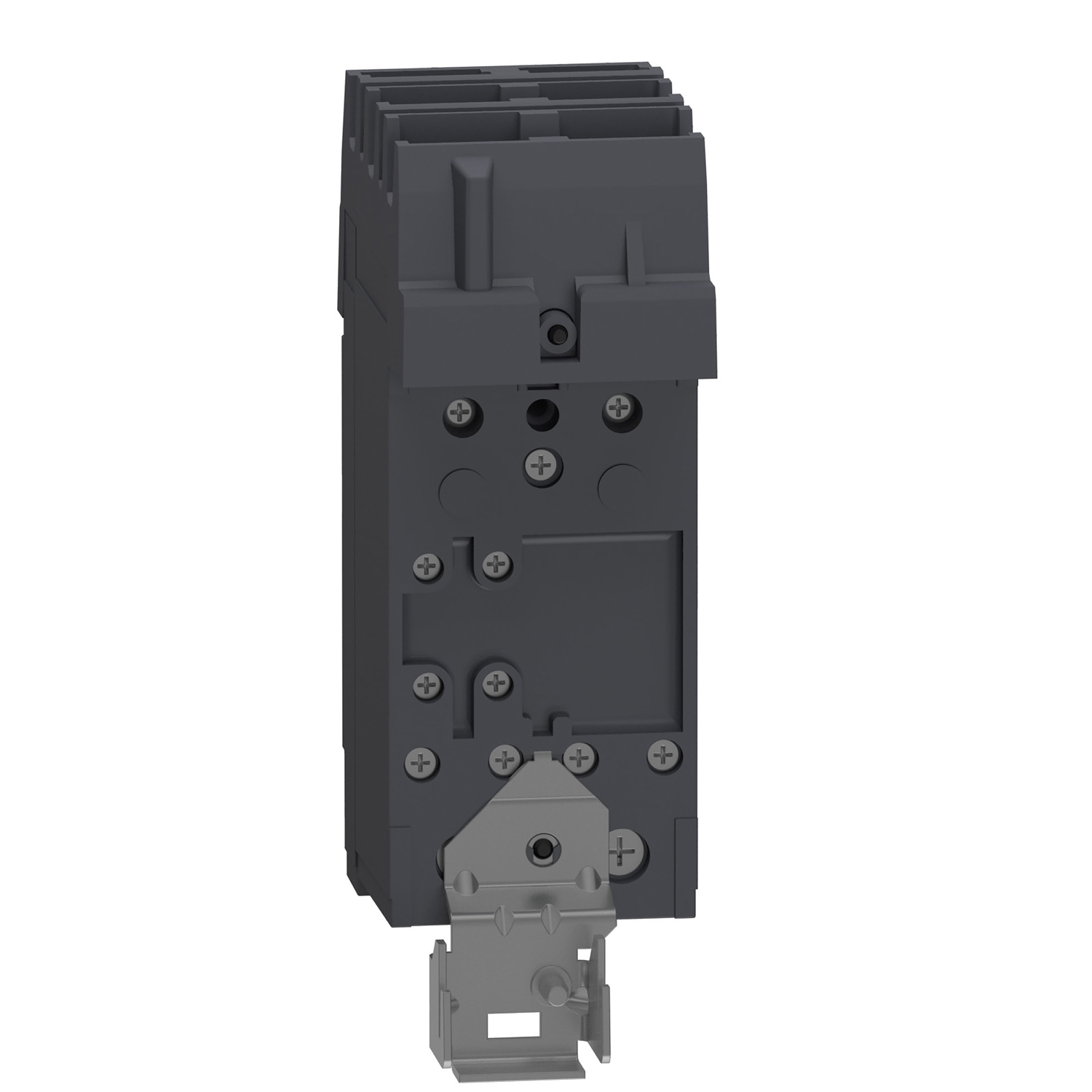

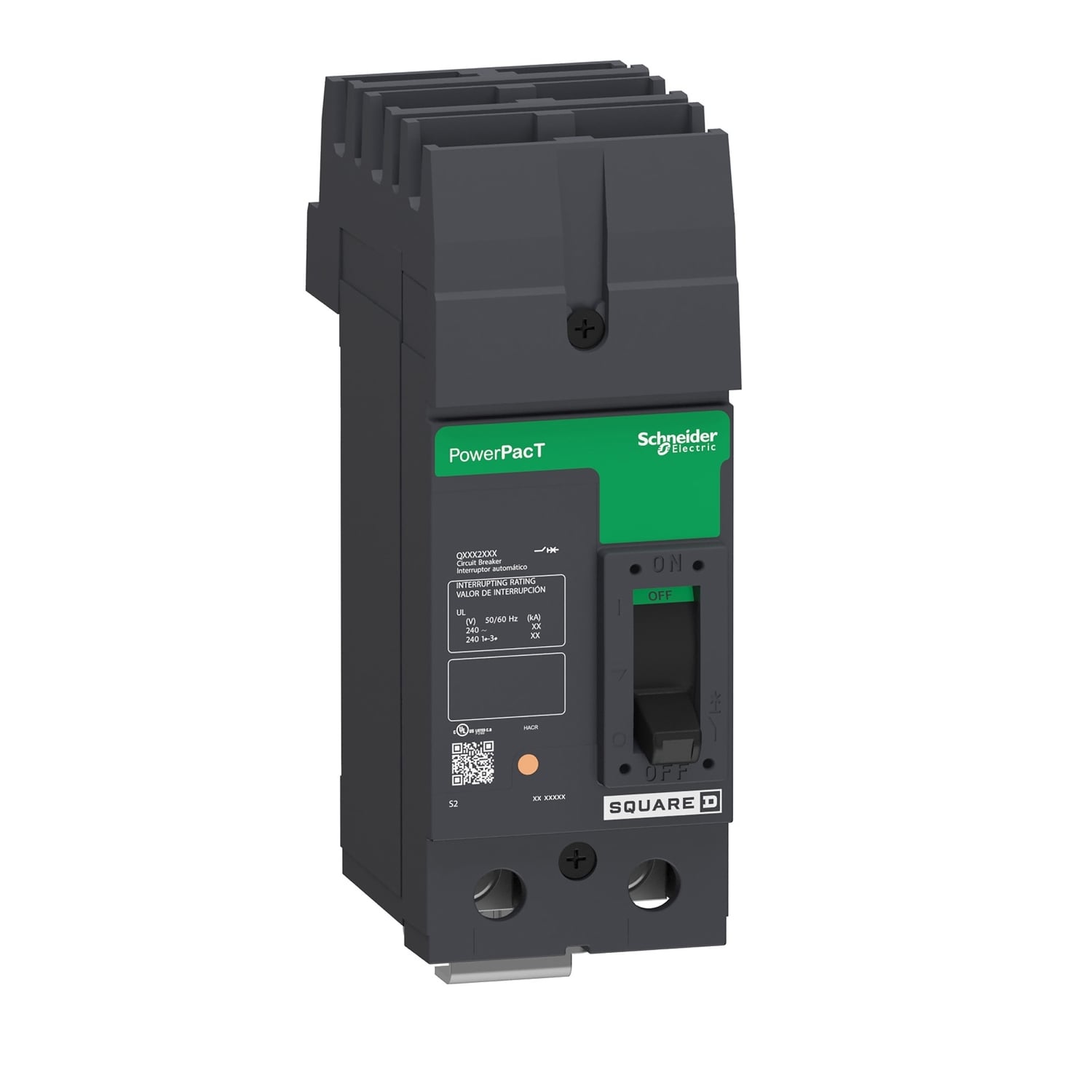

QDA221004 Molded Case Circuit Breaker, 100 Amp, 2 Pole, 240V
QDA221004 Molded Case Circuit Breaker, 100 Amp, 2 Pole, 240V
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacTQ-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 100A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Manuals and Documentation
- Catalog Number
- QDA221004
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Mexico
- Made in USA
- No
- UPC
- 785901760313
- GTIN
- 00785901760313
- Width
- 3.0
- Width UOM
- Inch
- Height
- 6.47
- Height UOM
- Inch
- Depth
- 3.93 IN
- Cross Reference Products
- Schneider Q222100BCH|Schneider QDA221004|SquareD QDA221004
