Mersen

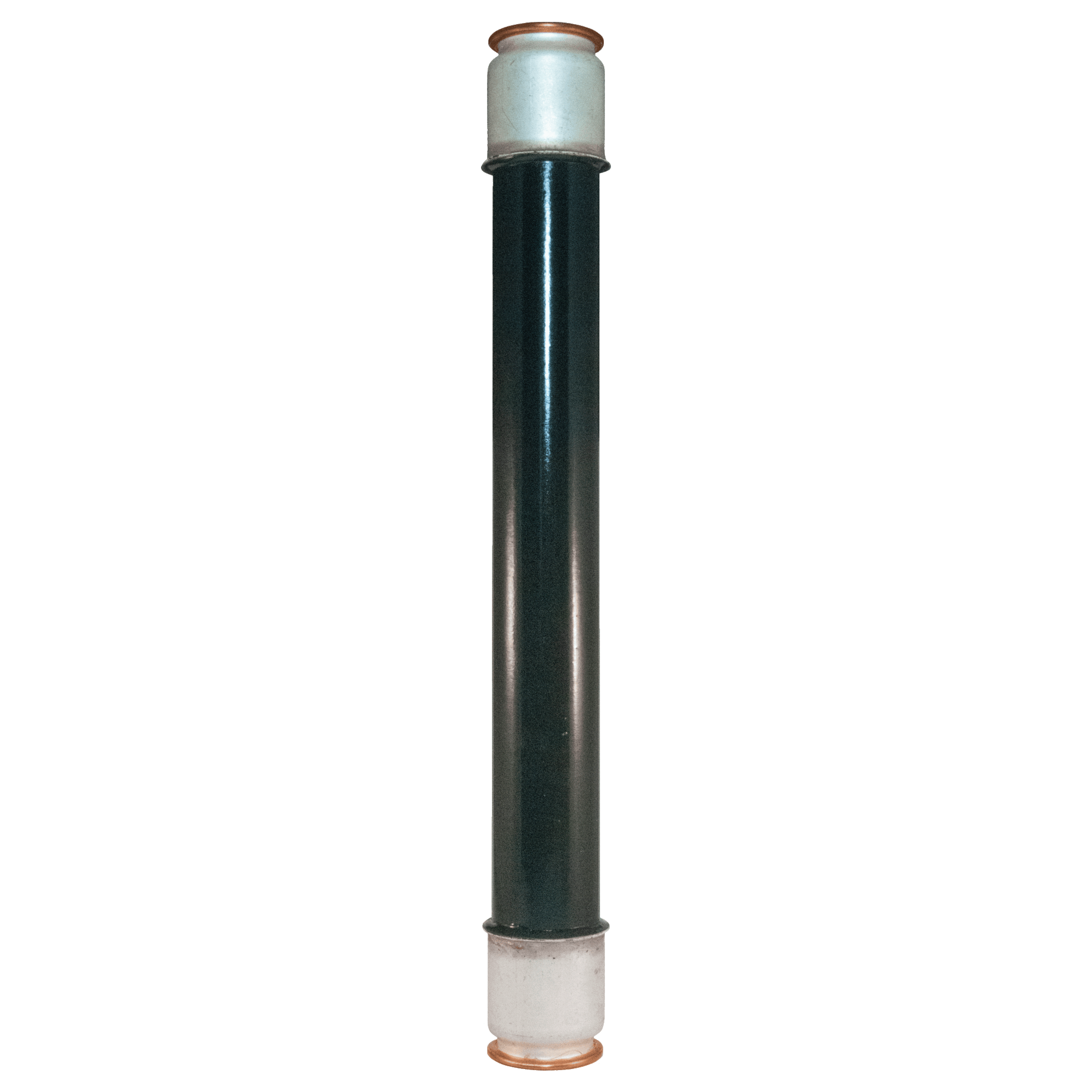

9F60DMH002 Amp-Trap Type EJO1 1-Barrel Medium Voltage Power Distribution Fuse, 2 A, 15.5 kV AC, 120 kA Interrupt, Class: E, Ferrule Body

MFR:
Mersen
MFR #:
9F60DMH002
UPC:
782001396541
Item #:
915595

Availability

Location Available Qty
Available Available to Order
$2,839.89 each

Medium Voltage E-Rated Fuse 15500VAC 2A Ferrule, Series: DMH Visual Indicator Amp-Trap

Manuals and Documentation
Catalog Number 9F60DMH002
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 2
Application Protection for 12 kV to 15.5 kV transformers or distribution systems.
Connection Ferrule
Interrupt Rating 50 KA
Mounting Clip
Special Features Amp-Trap CS-3 and 9F62 series are UL listed for compatibility with UL listed equipment Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Non-venting for silent operation Metal embossed catalog number and manufacturing date for lasting identification Outdoor usage for the 9F62 and 9F60 type EJO Blown-fuse indicator to give positive identification of open fuse: Amp-Trap: 2" Barrel 1 lb tripped force - 0.19 Inch Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch 9F60/9F62: 0.125 lb tripped force – 0.20 Inch
Standard Some UL listed to standard File E143362
UPC 782001396541
GTIN 00782001396541
Item Type General Purpose Ferrule Mount Fuses for Transformer Protection
Size 17.2 x 2
Type of Indicators Visual Indicator
Voltage Rating 15500
