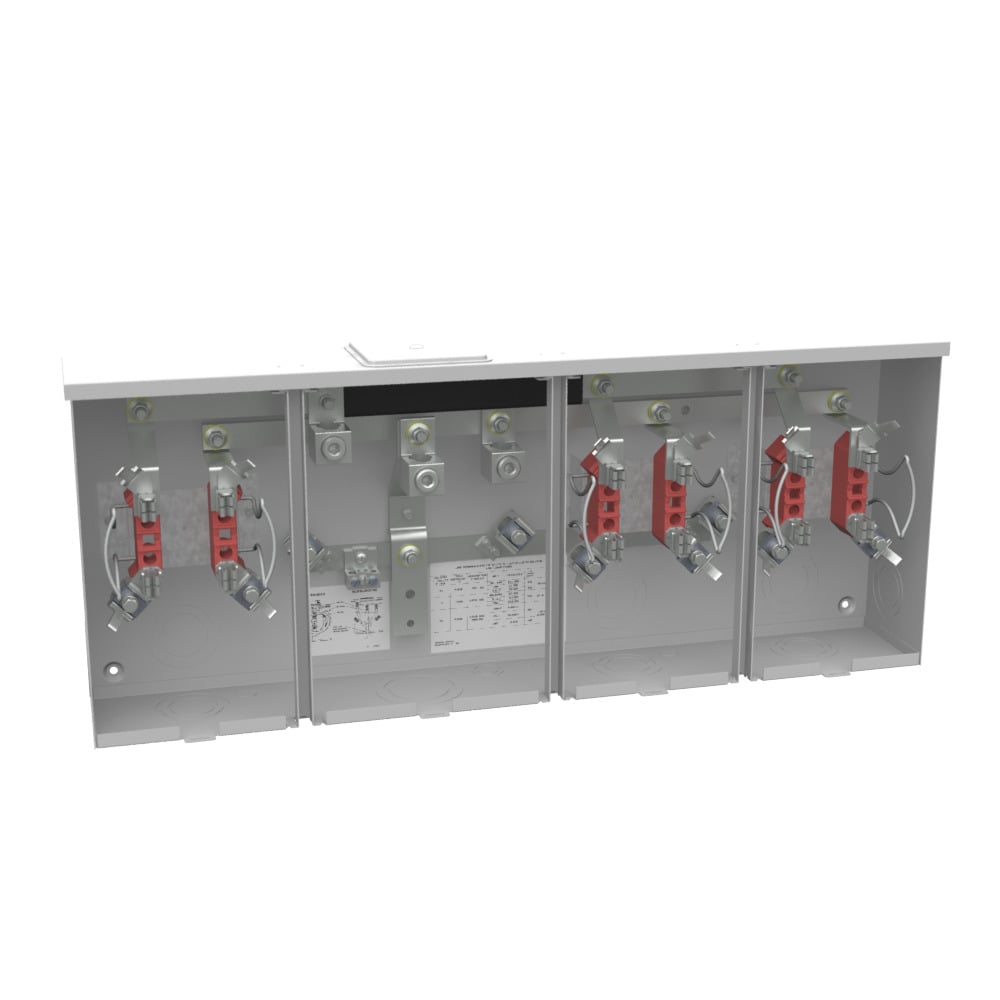

U1253-X-QG-KK-K3 4 Term, Ringless, Large Closing Plate, Quadplex Ground, Horn Bypass, 3 Position, Single Connector, 4-600 kcmil
- MFR:
- Milbank
- MFR #:
- U1253-X-QG-KK-K3
- UPC:
- 784572320901
- Item #:
- 914361
U1253-X-QG-KK-K3 4 Term, Ringless, Large Closing Plate, Quadplex Ground, Horn Bypass, 3 Position, Single Connector, 4-600 kcmil
- MFR #:
- U1253-X-QG-KK-K3
- UPC:
- 784572320901
- Item #:
- 914361
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,376.00
each
4 TERM RNGLS LRG CLS PLT QUADPLEX GND HRN BYPS 3 POS SGL CONN 4-600kcmil
| Catalog Number | U1253-X-QG-KK-K3 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | No Insulation |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572320901 |
| GTIN | 00784572320901 |
| Item Type | Ringless Meter Socket |
| Length | 5.125 |
| Length UOM | Inch |
| Width | 34.5 |
| Width UOM | Inch |
| Height | 14 |
| Height UOM | Inch |
| Size | 5.125L x 34.5W x 14H |
| Terminals | Single Mechanical |
| Voltage Rating | 300 Volts Alternating Current |
