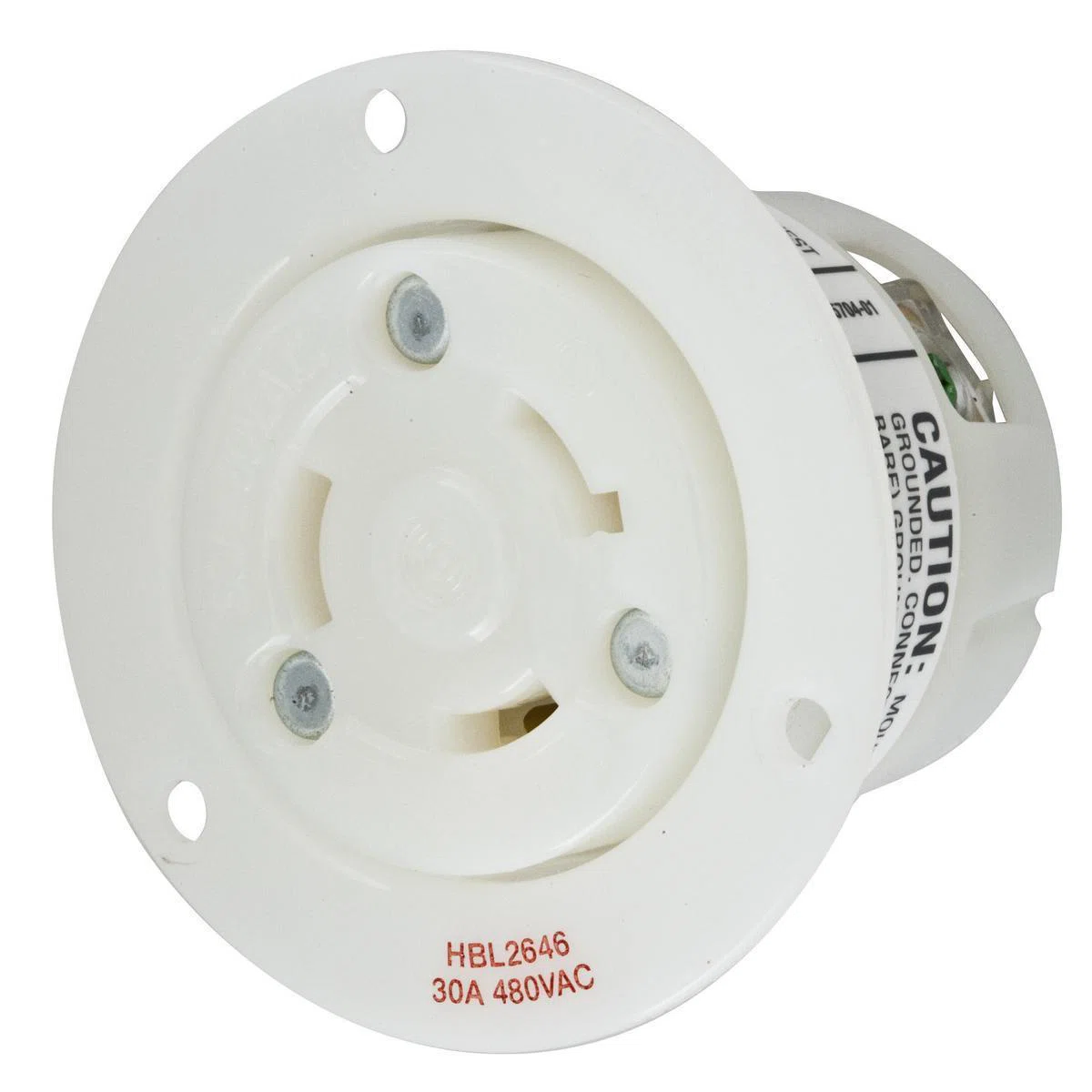

HBL2646 1-Phase Flanged Standard Single Screw Mount Locking Receptacle, 480 V AC, 30 A, 2 Poles, 3 Wires, White
- MFR:
- Hubbell
- MFR #:
- HBL2646
- UPC:
- 783585039039
- Item #:
- 9134
HBL2646 1-Phase Flanged Standard Single Screw Mount Locking Receptacle, 480 V AC, 30 A, 2 Poles, 3 Wires, White
- MFR #:
- HBL2646
- UPC:
- 783585039039
- Item #:
- 9134
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$94.22
each
Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, White.
Manuals and Documentation
Features
- Backwired terminations for ease of installation
| Manufacturer Part Number | HBL2646 |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585039039 |
| EAN | 0783585039039 |
| Country Of Origin | US |
| Amperage Rating | 30 A |
| Color | White |
| Dimensions | 2.88 x 2.88 x 2.09 in |
| Enclosure | NEMA 4X/12/IP20 |
| Horsepower | 5 hp |
| Material | Nylon |
| Temperature Rating | -40 to 75 deg C |
| Type | 1-Phase Flanged Standard Single Screw Mount |
| Voltage Rating | 480 V AC |
| Alternative Part Number | 8958496 | 11827225 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | Limited |
| Standards Approvals | RoHS Compliant | UL 94 | UL 498 | UL94 Flammability Rating | Federal Specification W-C-596 | NEMA WD1/WD5 | CSA C22.2 No. 0.17/42 |
| Application | Dry Locations, Indoor, Stage and Studio Power, Portable Power Distribution, Lighting, On-Location Filming, Carnivals and Theme Park Applications |
| Includes | Mounting Screws |
| Grade | Industrial |
| Nema Rating | L8-30R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Terminal Type | Screw |
