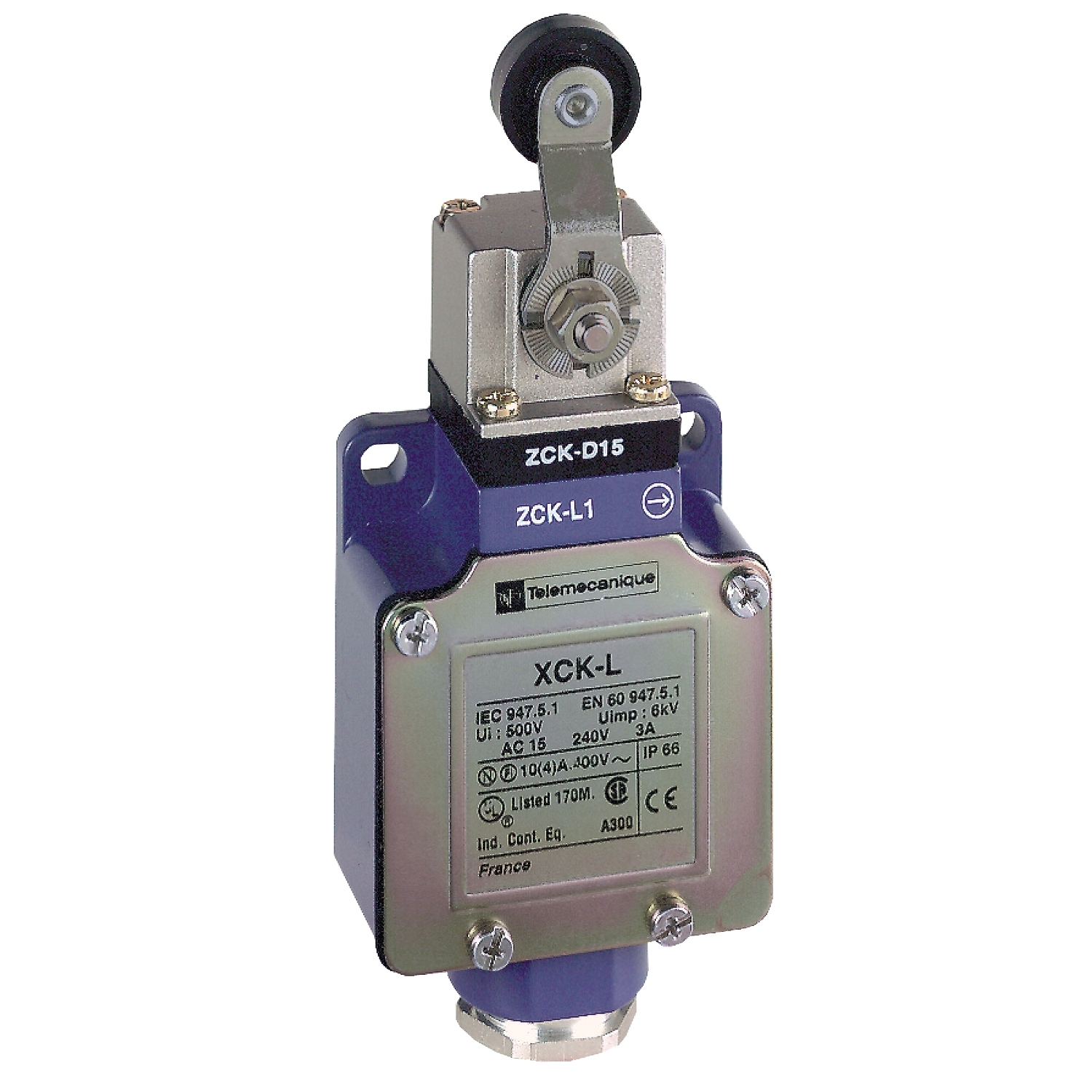

XCKL115X1 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 10 A, Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKL115X1
- UPC:
- 785901169185
- Item #:
- 912761
XCKL115X1 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 10 A, Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKL115X1
- UPC:
- 785901169185
- Item #:
- 912761
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$404.11
each
limit switch XCKL - thermoplastic roller lever - 1NC+1NO - snap action
Manuals and Documentation
| Catalog Number | XCKL115X1 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller lever thermoplastic |
| Application | CLASSIC |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,IEC 60947-5-1-CSA C22.2 NO 14-EN 60204-1-IEC 60204-1-EN 60947-5-1-UL 508,IK05 EN 50102,IP66 EN/IEC 60529,UL-CSA,CLASS I IEC 61140-CLASS I NF C 20-030 |
| UPC | 785901169185 |
| GTIN | 03389119074940 |
| Item Type | Limit switch |
| Operating Temperature | -25-70 A Degrees C |
