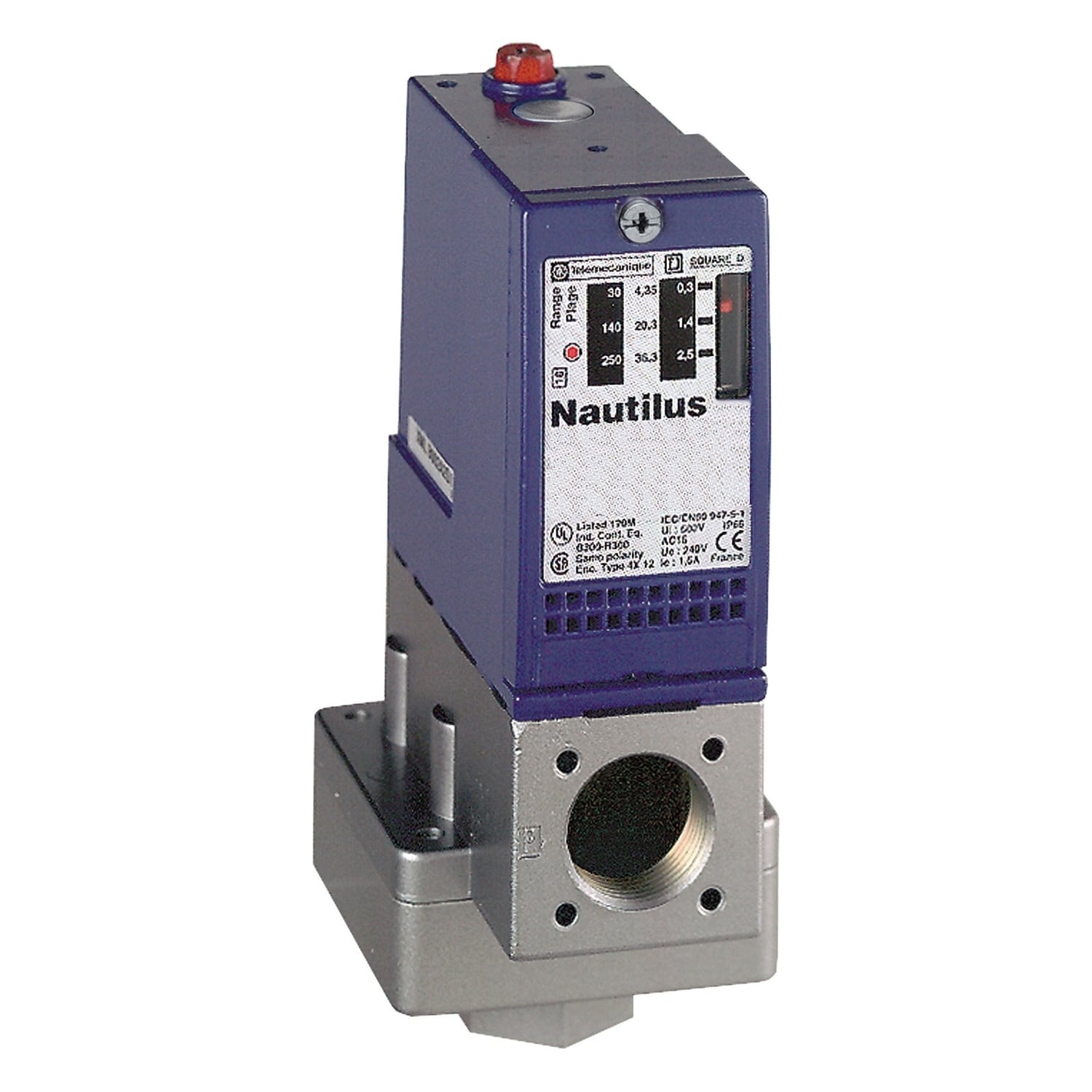

XMLA002A2S11 OsiSense XM Fixed Differential Electromechanical Pressure Switch, 2.5 bar Pressure, 1CO Contact, Screw Clamp/Cable Gland Connection, 3 A at 120 V AC/1.5 A at 240 V AC/0.1 A at 250 V DC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- XMLA002A2S11
- UPC:
- 785901840862
- Item #:
- 910577
XMLA002A2S11 OsiSense XM Fixed Differential Electromechanical Pressure Switch, 2.5 bar Pressure, 1CO Contact, Screw Clamp/Cable Gland Connection, 3 A at 120 V AC/1.5 A at 240 V AC/0.1 A at 250 V DC Contact
- MFR #:
- XMLA002A2S11
- UPC:
- 785901840862
- Item #:
- 910577
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$444.65
each
This XMLA electromechanical pressure switch has a fixed differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in air, fresh water, hydraulic oils, corrosive fluids and viscous products up to 70C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 8 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV.
Manuals and Documentation
| Catalog Number | XMLA002A2S11 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Detection of 1 single threshold;-;Control circuit |
| Contact Configuration | 1 C/O |
| Enclosure | Zinc alloy |
| Operating Cycles | 120 CYC/MN |
| Process Connection | G 1/4 (FEMALE) ISO 228 |
| Special Features | IP66 CONFORMING TO EN/IEC 60529,SCREW-CLAMPS TERMINALS 1 X 0.5...2 X 2.5 MM²-1 CONNECTOR PG 13 |
| Standard | CCC-UL-BV-CSA-EAC-LROS (LLOYDS REGISTER OF SHIPPING),IP66 EN/IEC 60529,UL 508-CE-CSA C22.2 NO 14-EN/IEC 60947-5-1,CLASS I IEC 1140-CLASS I IEC 536-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=861274&lang=en-us |
| UPC | 785901840862 |
| GTIN | 03389110711196 |
| Item Type | Electromechanical pressure sensor;Electromechanical pressure sensor;Fixed differential |
| Operating Temperature | -25-70 A Degrees C |
| System Pressure | 36.26 |
