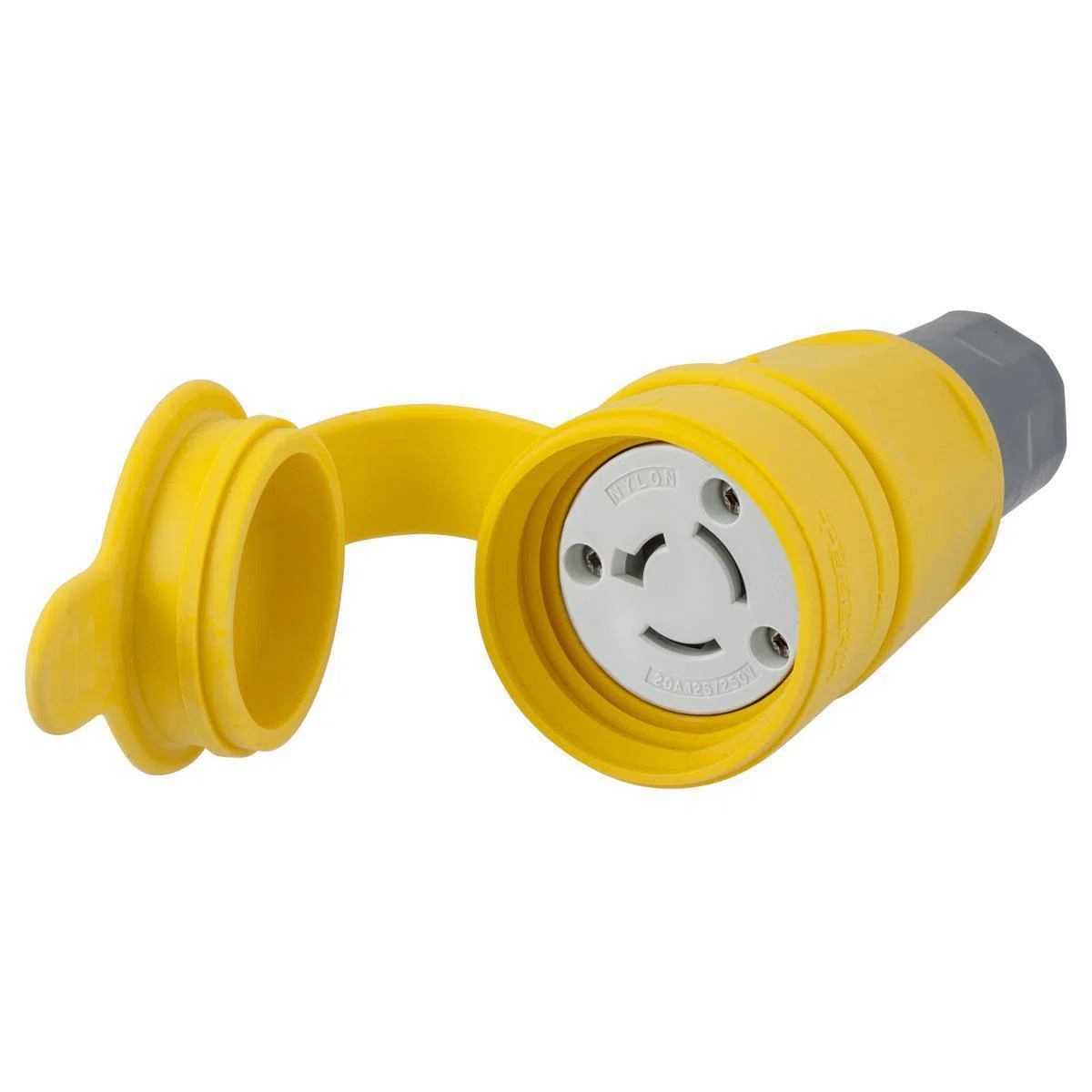

HBL27W08 Non-Grounding Standard Sized Watertight Surface Mount Female Connector, 125/250 V AC, 20 A, 3 Poles, 3 Wires, Yellow
- MFR:
- Hubbell
- MFR #:
- HBL27W08
- UPC:
- 783585456355
- Item #:
- 905227
HBL27W08 Non-Grounding Standard Sized Watertight Surface Mount Female Connector, 125/250 V AC, 20 A, 3 Poles, 3 Wires, Yellow
- MFR #:
- HBL27W08
- UPC:
- 783585456355
- Item #:
- 905227
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$89.93
each
Hubbell Wiring Device-Kellems Twist-Lock® Elastogrip®, HBL27W08, Female Connector, Non-Grounding Standard Sized Watertight Surface Mount, 125/250 V AC, 20 A, 3 Pole, 3 Wires, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic/Elastomer, Yellow, 2.51 x 2.51 x 5.69 in Dimensions
Manuals and Documentation
Features
- Stainless steel hardware and corrosion-resistant connection points
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
| Manufacturer Part Number | HBL27W08 |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585456355 |
| EAN | 0783585456355 |
| Country Of Origin | PR |
| Amperage Rating | 20 A |
| Color | Yellow |
| Dimensions | 2.51 x 2.51 x 5.69 in |
| Enclosure | NEMA 4/4X/6/6P/12/IP65/IP66/IP67 |
| Material | Thermoplastic/Elastomer |
| Temperature Rating | -40 to 60 deg C |
| Type | Non-Grounding Standard Sized Watertight Surface Mount |
| Voltage Rating | 125/250 V AC |
| Alternative Part Number | 13490924 | 13106196 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | NEMA WD1/WD6 | NSF Certified | UL94 V-2 Flammability Rating | RoHS Compliant | UL 498 | CSA C22.2 No. 42 | ANSI Specified |
| Application | Power Connection Applications |
| Cord Diameter | 3/8 to 7/8 in |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Terminal Type | Screw |
