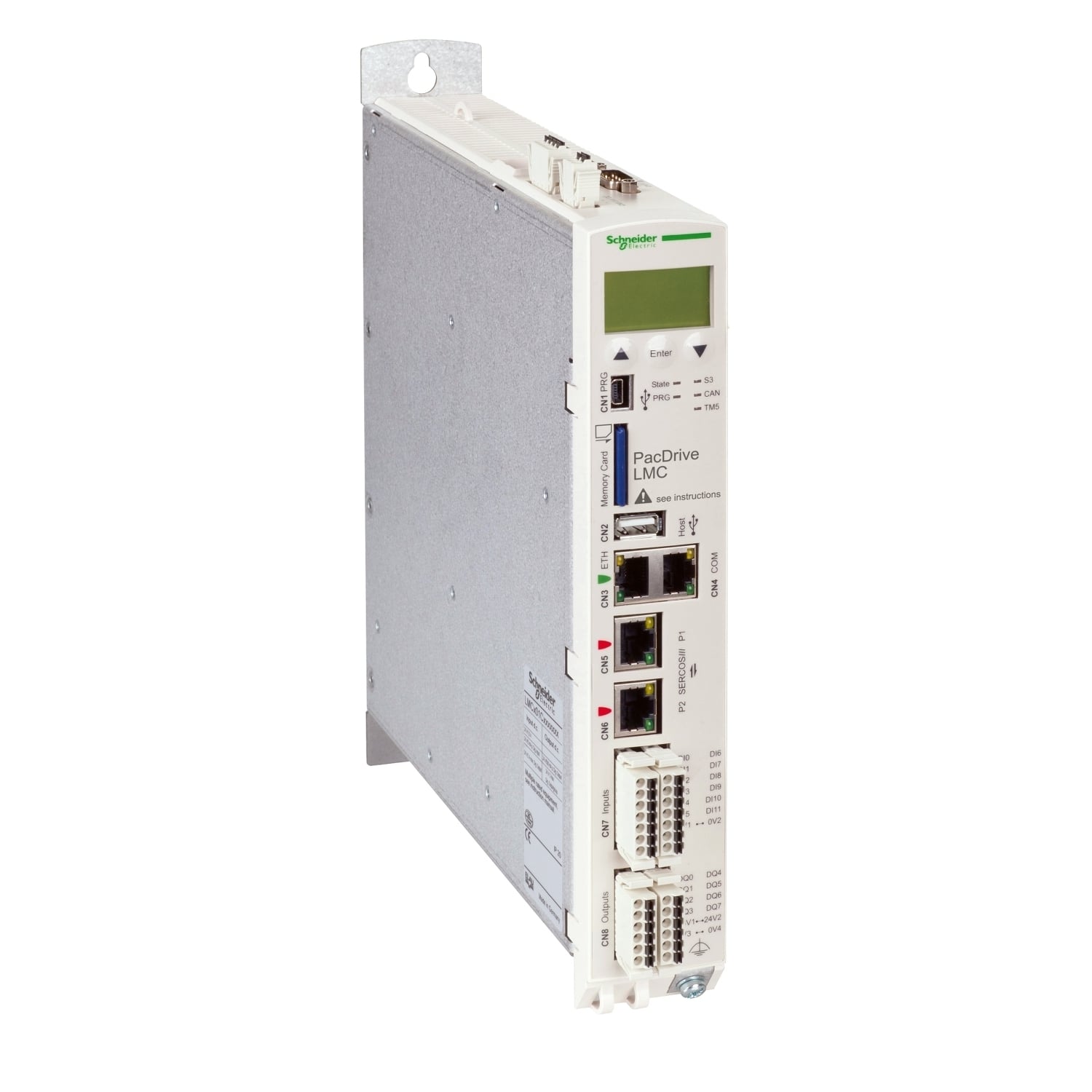

LMC216CAA10000 LCM Eco 16 Servo Axis Logic Motion Controller, 24 V DC, 4 mA, 8 Inputs, 8 Outputs
- MFR:
- Schneider Electric
- MFR #:
- LMC216CAA10000
- Item #:
- 901936
LMC216CAA10000 LCM Eco 16 Servo Axis Logic Motion Controller, 24 V DC, 4 mA, 8 Inputs, 8 Outputs
- MFR #:
- LMC216CAA10000
- Item #:
- 901936
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 16 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
Manuals and Documentation
| Catalog Number | LMC216CAA10000 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=368046159&lang=en-us |
| GTIN | 03606485400334 |
