Hubbell Wiring Device - Kellems

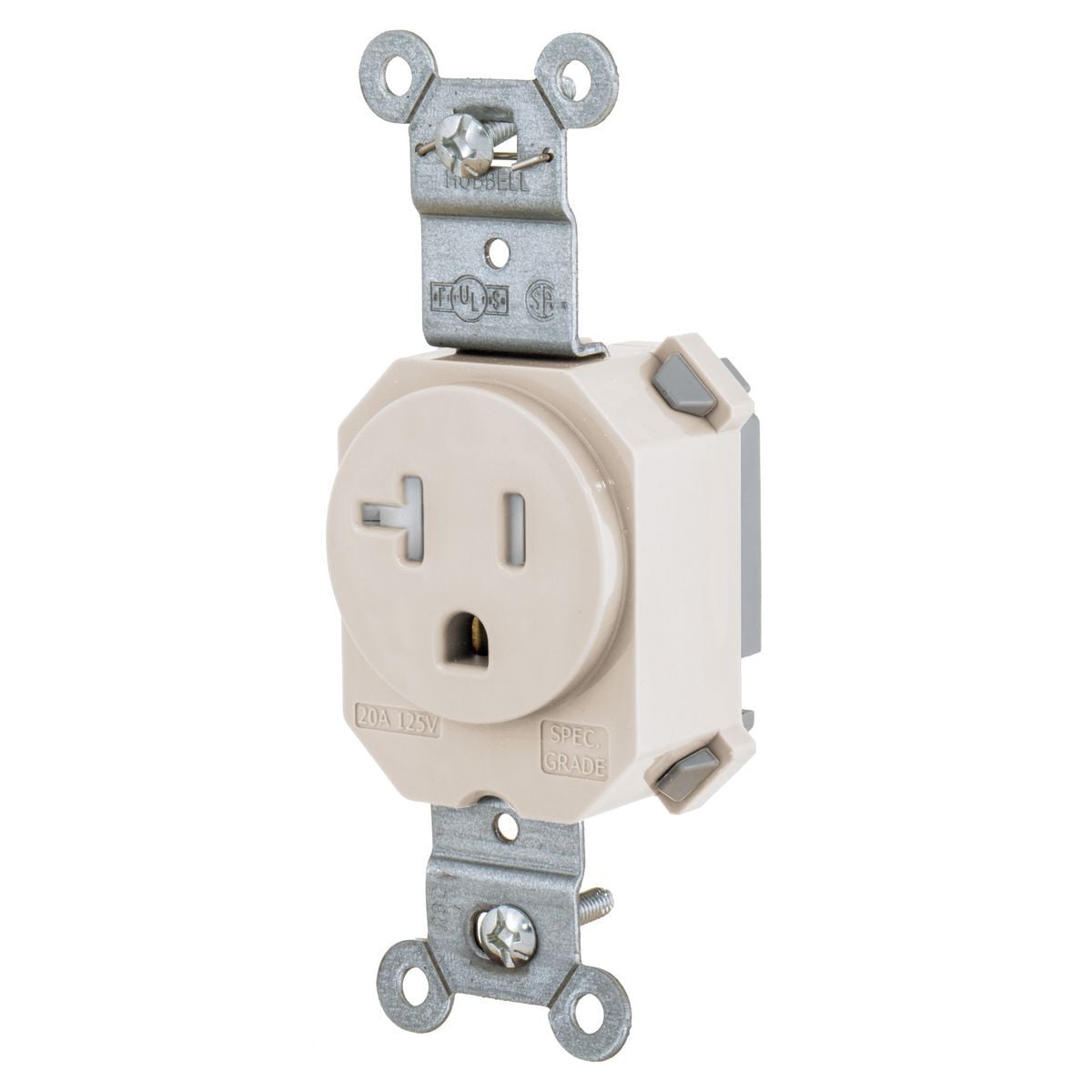

SNAP5361LATR 1-Phase Extra Heavy Duty Grounding Single Standard Tamper-Resistant Watertight Straight Blade Receptacle, 125/250 VAC, 20 A, 2 Poles, 3 Wires, Light Almond

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP5361LATR
UPC:
783585557519
Item #:
900778

Availability

Location Available Qty
Available Available to Order

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP5361LATR
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Extra Heavy Duty Specification Grade
Color Light Almond
Connection Terminal Screws
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Quick Connect- SNAPConnect, Tamper-Resistant, Split Circuit, USA Product
Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585557519
GTIN 00783585557519
Item Type Tamper-Resistant
Size 3.28 in x 1.625 in x 1.1 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 2,500 W
Wire Size #12 AWG
