Appleton

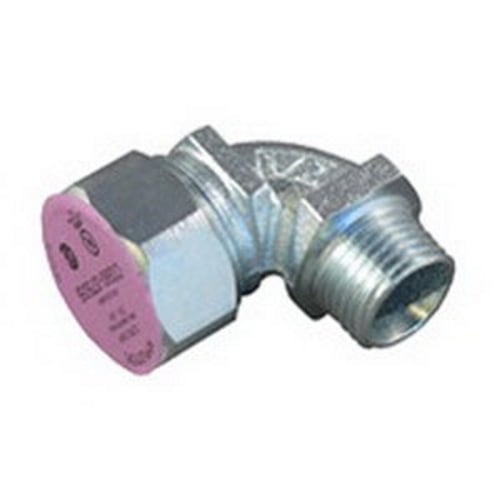

CG90-3750S Liquidtight Strain Relief Connector, 1/2 in Trade, 3/8 to 1/2 in Cable Openings, Malleable Iron

MFR:
Appleton Electric
MFR #:
CG90-3750S
UPC:
781381449021
Item #:
900467

Availability

Location Available Qty
Available Available to Order
$45.76 each

90 DEG Liquidtight Strain Relief Connector, Size: 1/2 IN, Conductor Range: 3/8 - 1/2 IN, Material: Malleable Iron, Color: Purple Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Standard: Class I, Division 2, Class II, Division 1

Manuals and Documentation
Catalog Number CG90-3750S
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
Color Purple Label
Conductor Range 3/8 - 1/2 IN
Connection Threaded Hub
Material Malleable Iron
NEMA Rating 3R
Special Features For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Machined steel cap; Neoprene sealing grommet
Standard Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
UPC 781381449021
GTIN 00781381449021
Item Type 90 DEG Liquidtight Strain Relief Connector
Size 1/2
