Discontinued

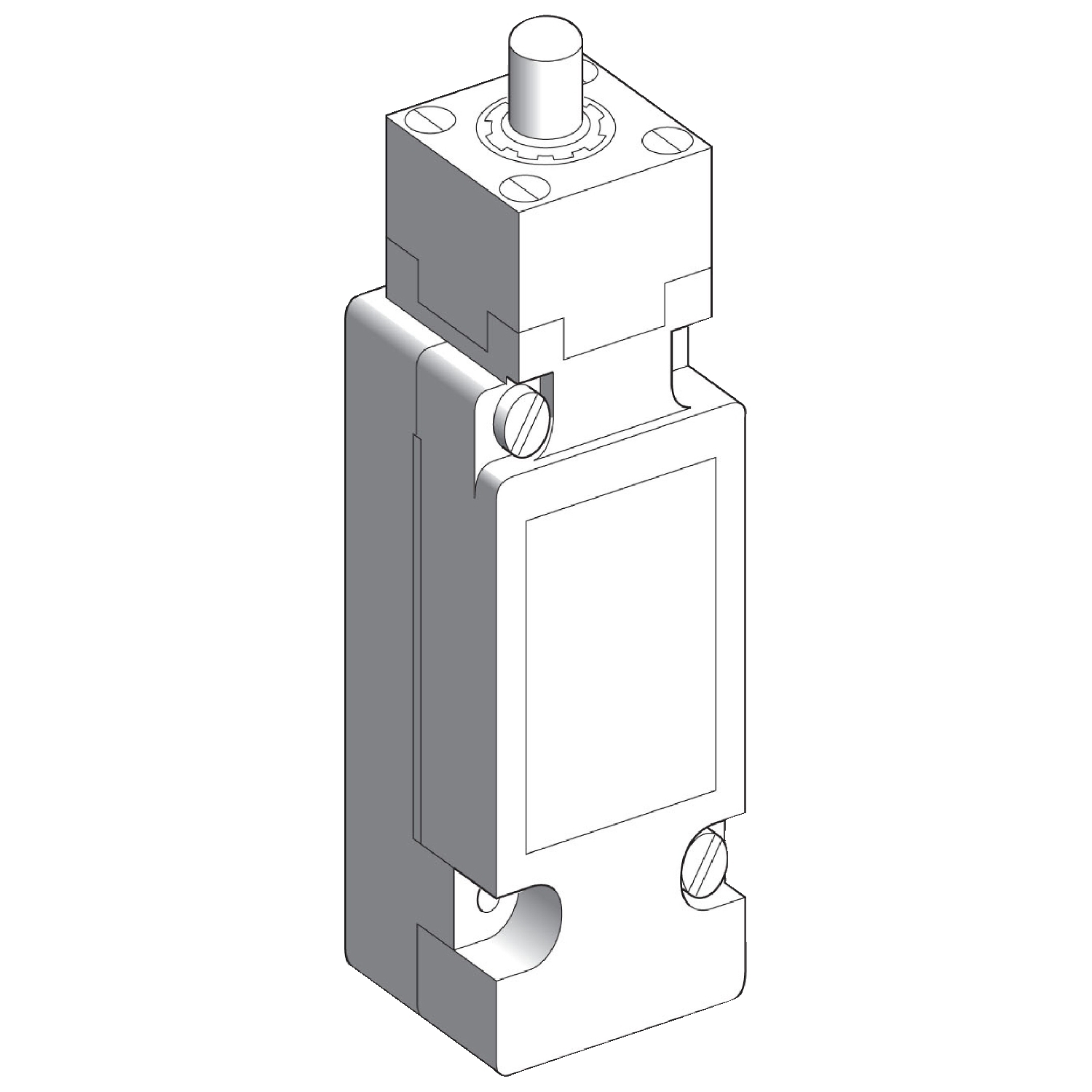

XCKJ1161H7 OsiSense XC Plug-In Standard Format Limit Switch, 300/500 V, 10 A, 1CO Contact, 1 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKJ1161H7
- Item #:
- 90009
Discontinued
XCKJ1161H7 OsiSense XC Plug-In Standard Format Limit Switch, 300/500 V, 10 A, 1CO Contact, 1 Poles
- MFR #:
- XCKJ1161H7
- Item #:
- 90009
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
limit switch XCKJ - metal end plunger - 1C/O - snap action - 1/2NPT
Manuals and Documentation
| Catalog Number | XCKJ1161H7 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty: 18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Vertical approach, 1 direction;Snap action;On end |
| Actuator | Spring return plunger metal |
| Amperage Rating | 10 |
| Application | INDUSTRIAL |
| Connection | Screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
| Contact Configuration | 1 C/O |
| Mounting | By The Body |
| Number of Poles | 1 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | METAL,PLUG-IN BODY |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,IK07 EN 50102,IP66 IEC 60529,UL 508-IEC 60204-1-EN 60204-1-CENELEC EN 50041-IEC 60947-5-1-CSA C22.2 NO 14-EN 60947-5-1,UL-CSA-CCC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856210&lang=en-us |
| GTIN | 03389118120778 |
| Item Type | Limit switch |
| Size | 1.42 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
