Hubbell Wiring Device - Kellems

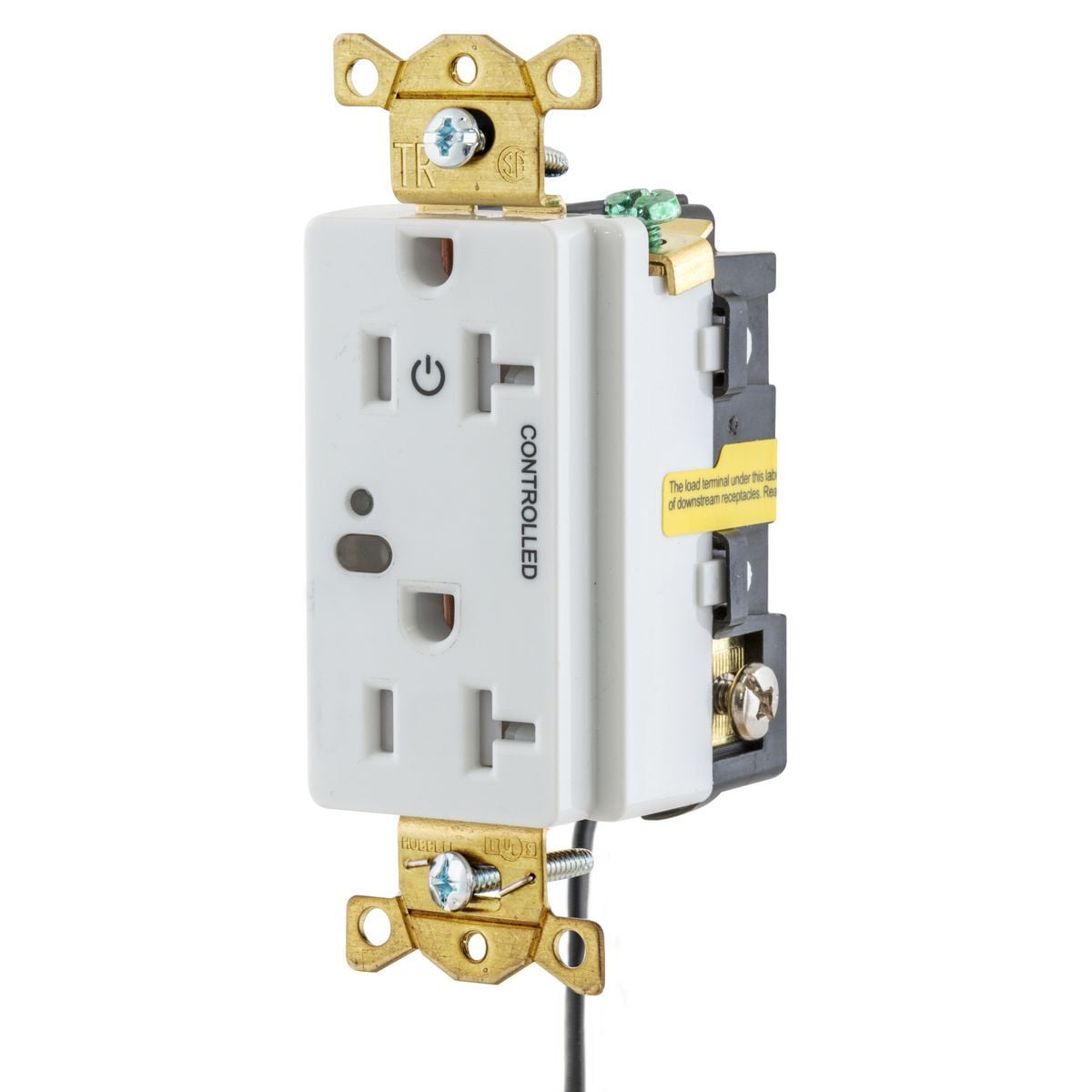

HBL5362LC1W 1-Phase Duplex Grounding Split Circuit Switched Wired Standard Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL5362LC1W
UPC:
783585427652
Item #:
899100

Availability

Location Available Qty
Available Available to Order

Switched Receptacles for Automatic Receptacle Control - to Hubbell Wiring Device-Kellems comprehensive offering for automatic receptacle control requirements. Featuring Hubbells exclusive and patented tamper-resistant mechanism as standard, the unit is capable of controlling other receptacles downstream in the branch circuit. Hubbell offers this innovative device in wired and wireless options, which are both fully compatible with existing systems. This allows for easy additions and changes to meet current energy codes and standards in current facilities.

Manuals and Documentation
Catalog Number HBL5362LC1W
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 20
Application Logic Load Control Receptacles
Color White
Connection Terminal Screws
Material Thermoplastic/Composite
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Special Features Load Controlled, DR, Split Circuit
Standard cULus 498B SA UL File No. E481574;Fed. Spec. WC596G;Complies with:NEC Section 406.3 (E), ASHRAE 90.1 Section 8.4.2,California Title 24;Artcile 130.5(d);NEMA WD-6 Compliant
UPC 783585427652
GTIN 00783585427652
Item Type Split Circuit
Size Standard Product
Environmental Conditions Indoor Dry unless protected by additional means
Voltage Rating 125
Wattage 2504
Wire Size #14 AWG to #10 AWG
