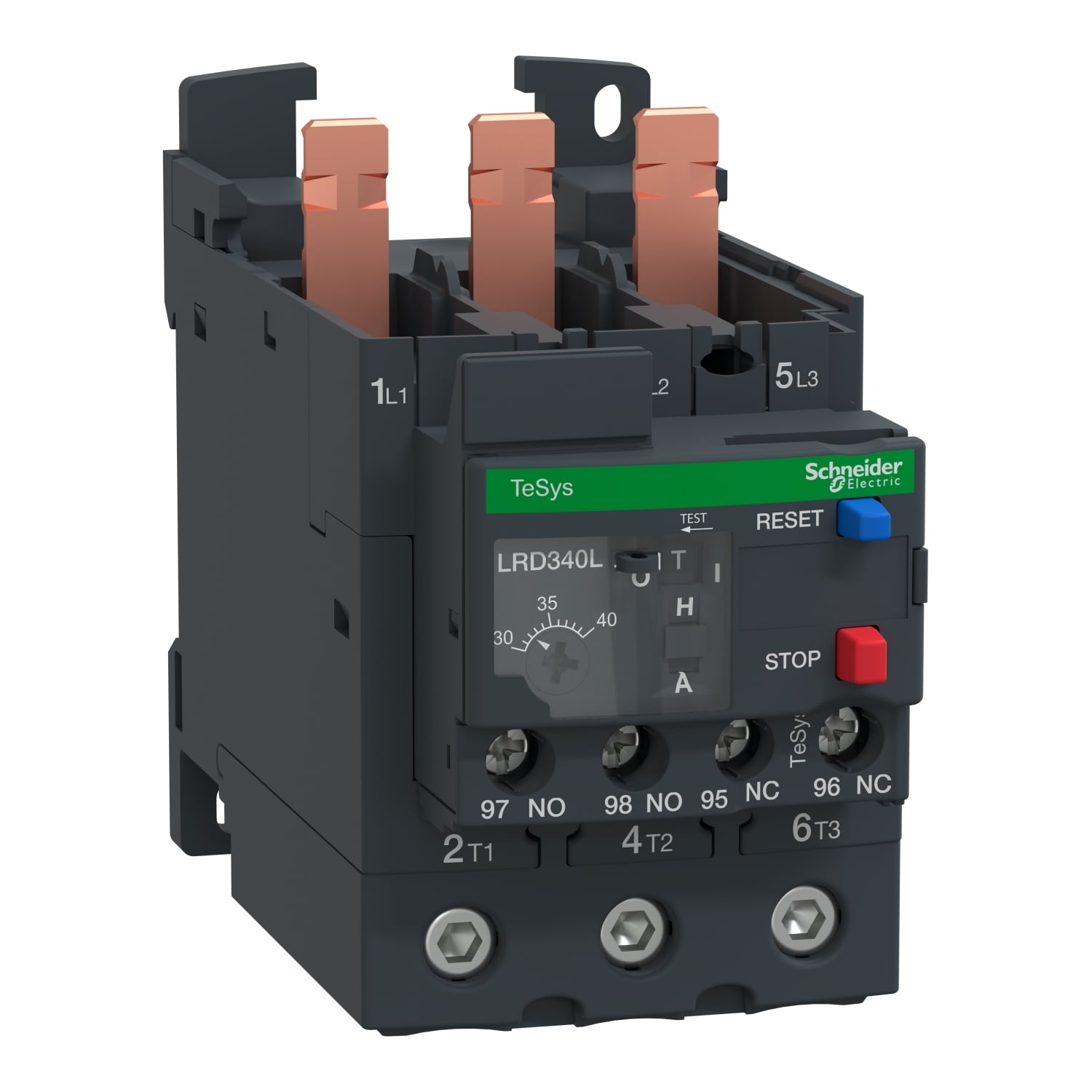

LRD340L TeSys D-Line Bi-Metallic Thermal Overload Relay With Everlink Power Terminal, 25 to 40 A, 1NO-1NC 1 Form A/1 Form B Contact
- MFR:
- Schneider Electric
- MFR #:
- LRD340L
- Item #:
- 89604
LRD340L TeSys D-Line Bi-Metallic Thermal Overload Relay With Everlink Power Terminal, 25 to 40 A, 1NO-1NC 1 Form A/1 Form B Contact
- MFR #:
- LRD340L
- Item #:
- 89604
Availability
| Location | Available Qty |
|---|---|
| Available | 12 ea |
LRD340L is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 18.5kW@400V thanks to a thermal range 30-40A, a tripping class 20 and phase unbalance protection. LRD340L is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 30-40A, a tripping class 20 and phase unbalance detection, it protects motors 18.5kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D40A-D65A to form a compact starter. Light and compact, 55mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Manuals and Documentation
| Catalog Number | LRD340L |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6969255&lang=en-us |
| GTIN | 03389119215565 |
