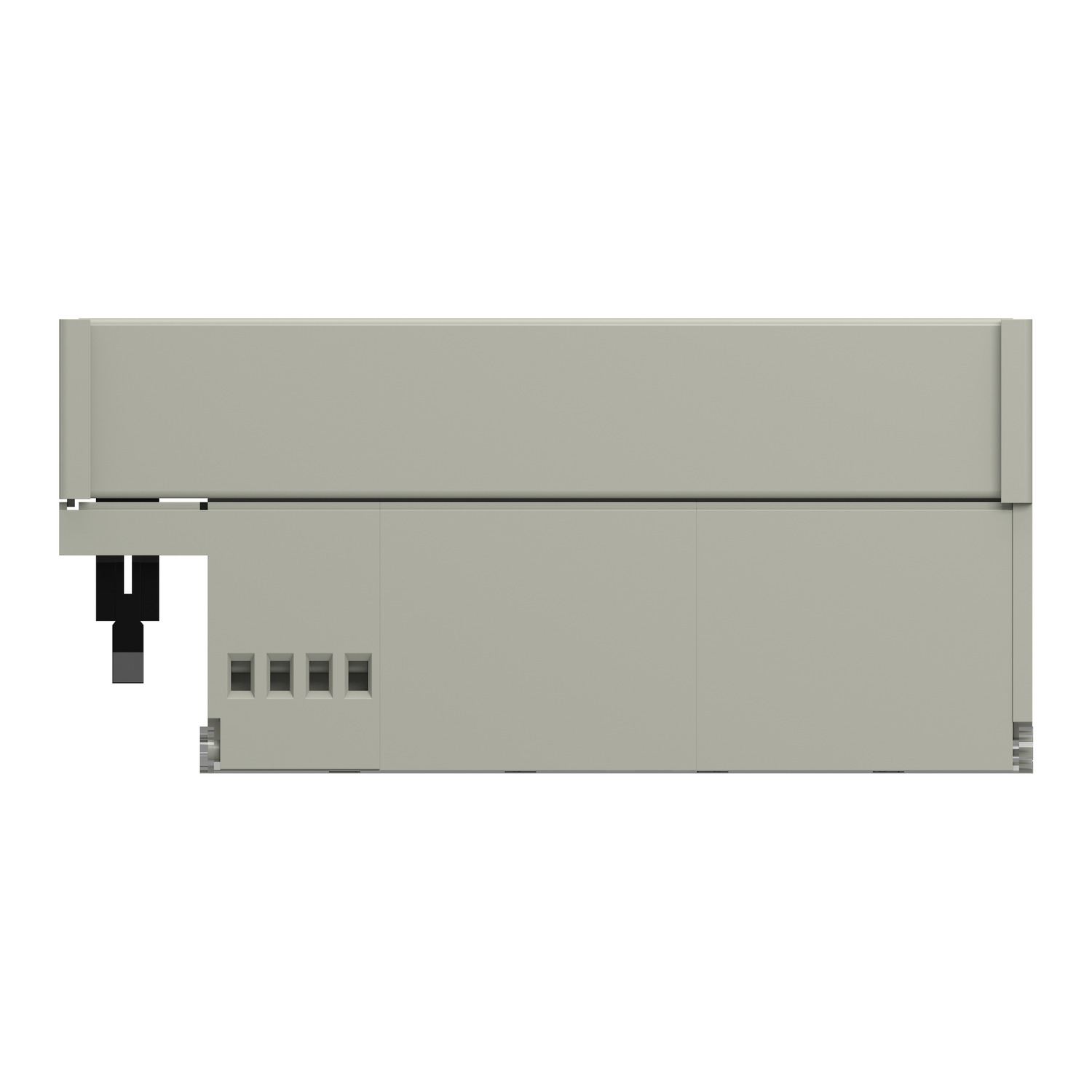

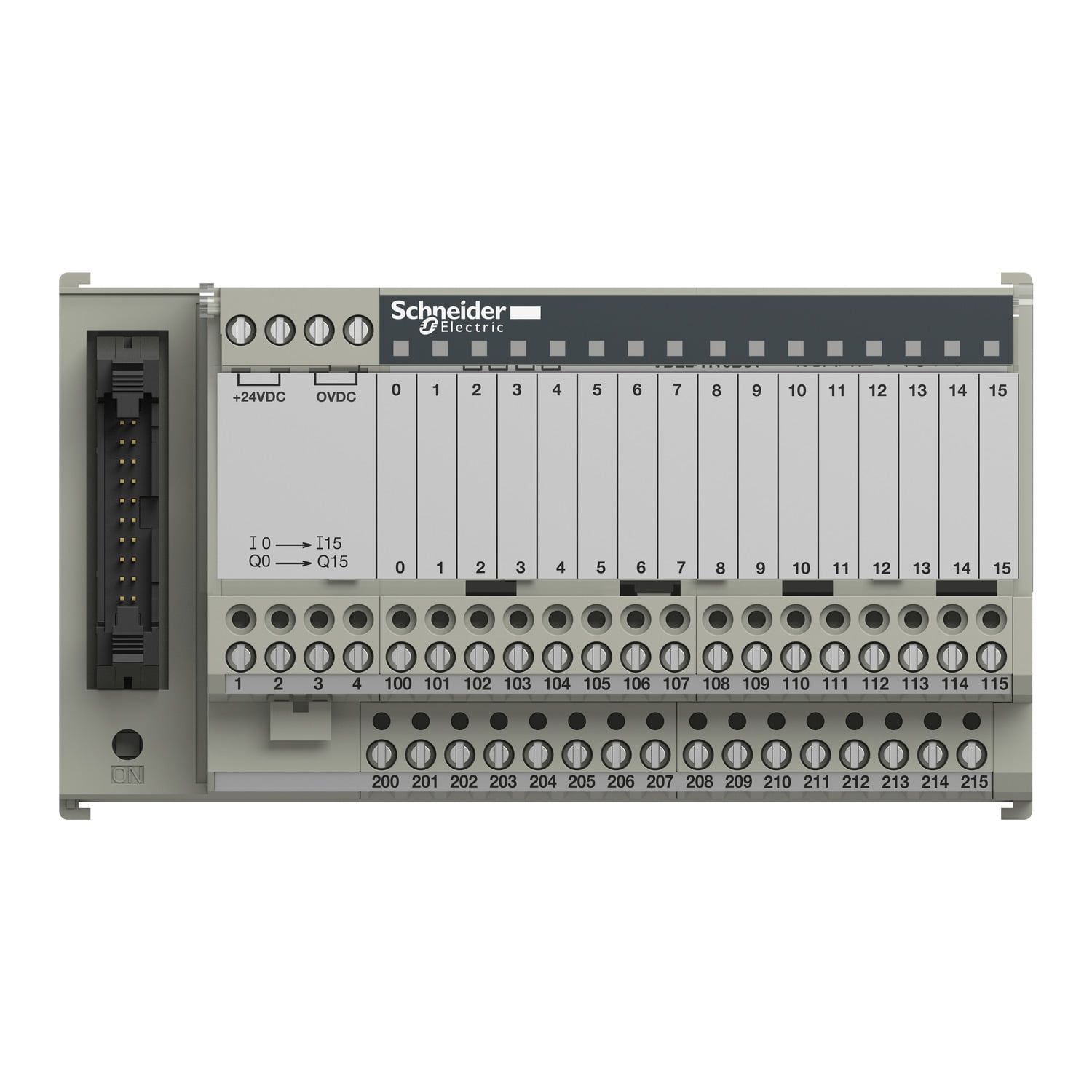

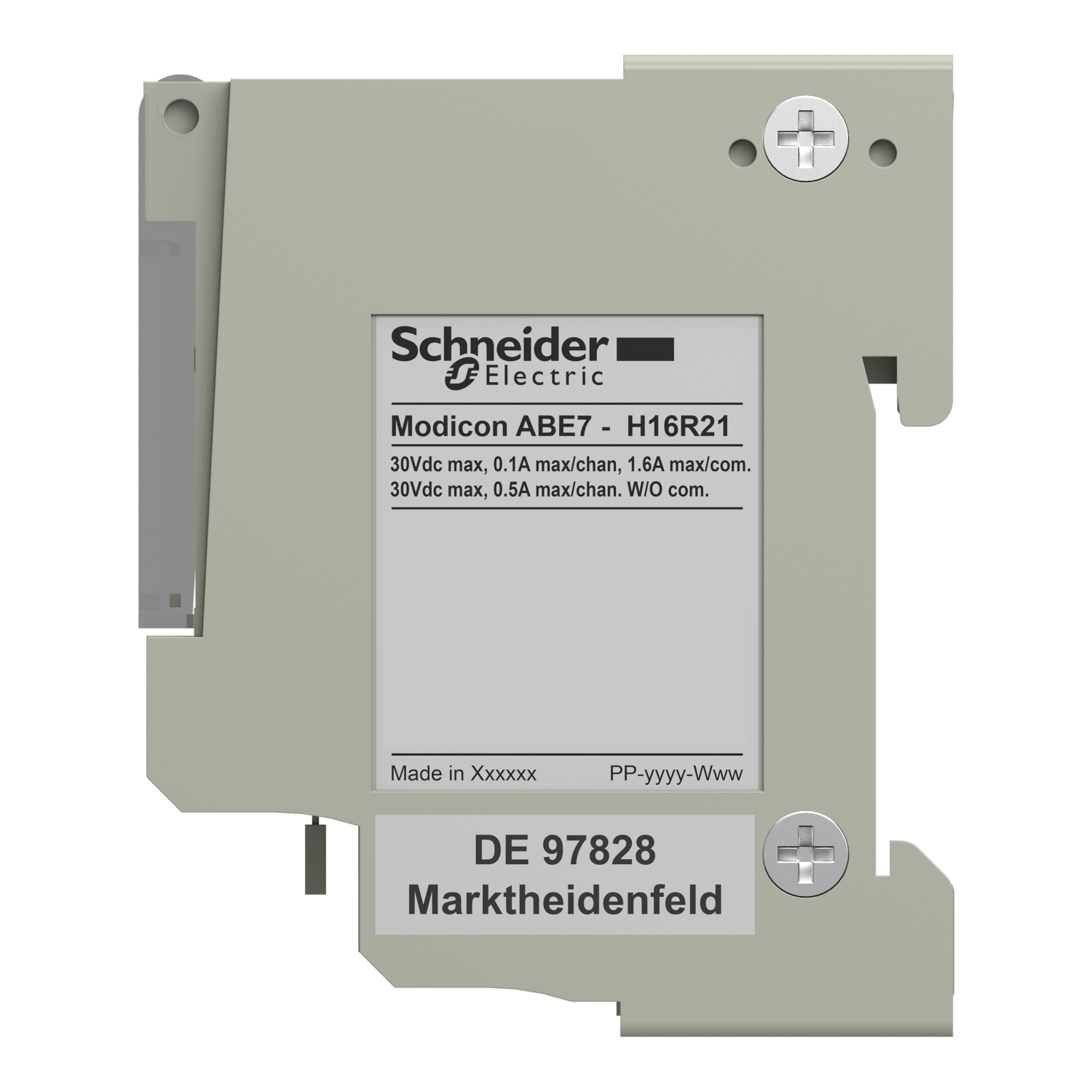

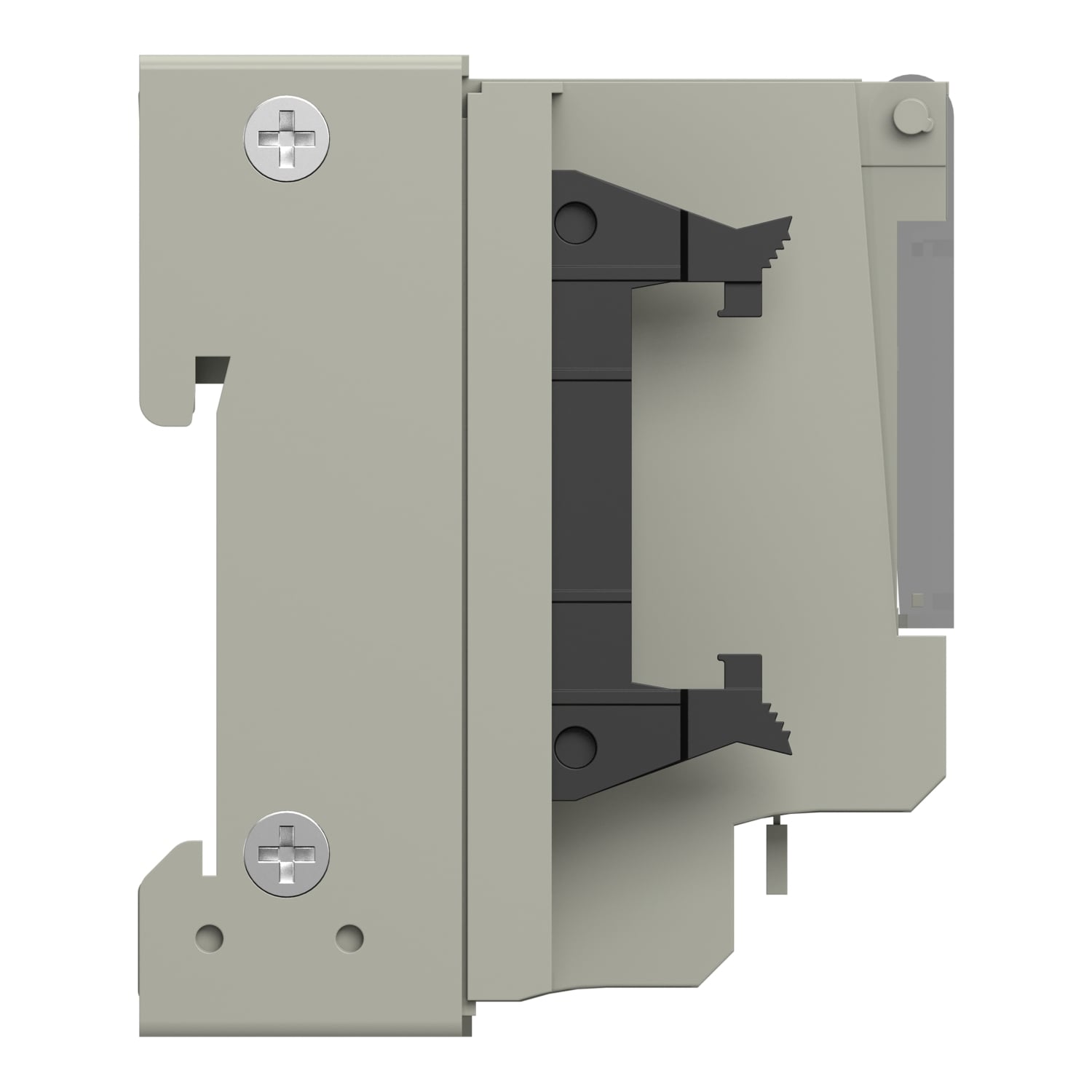

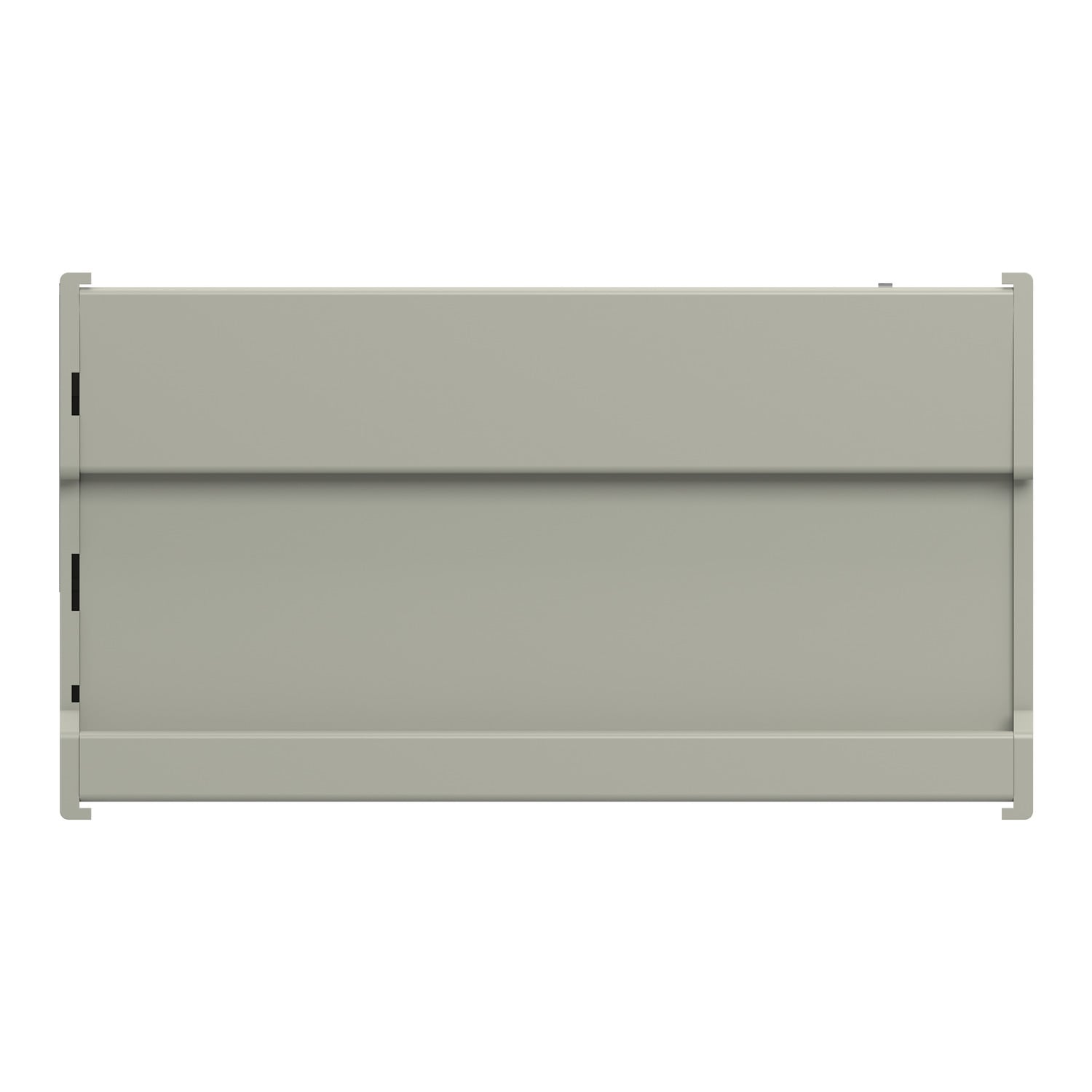

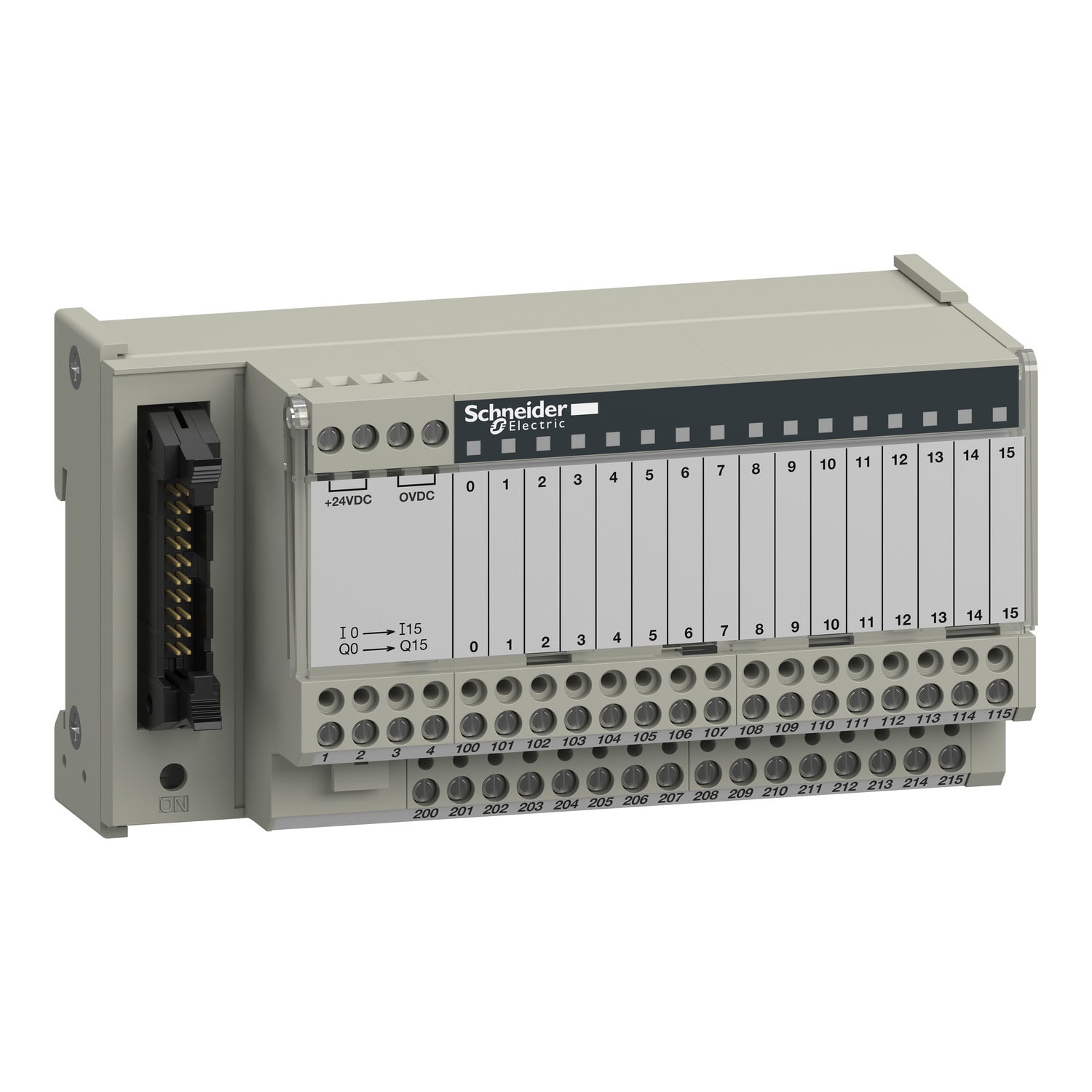

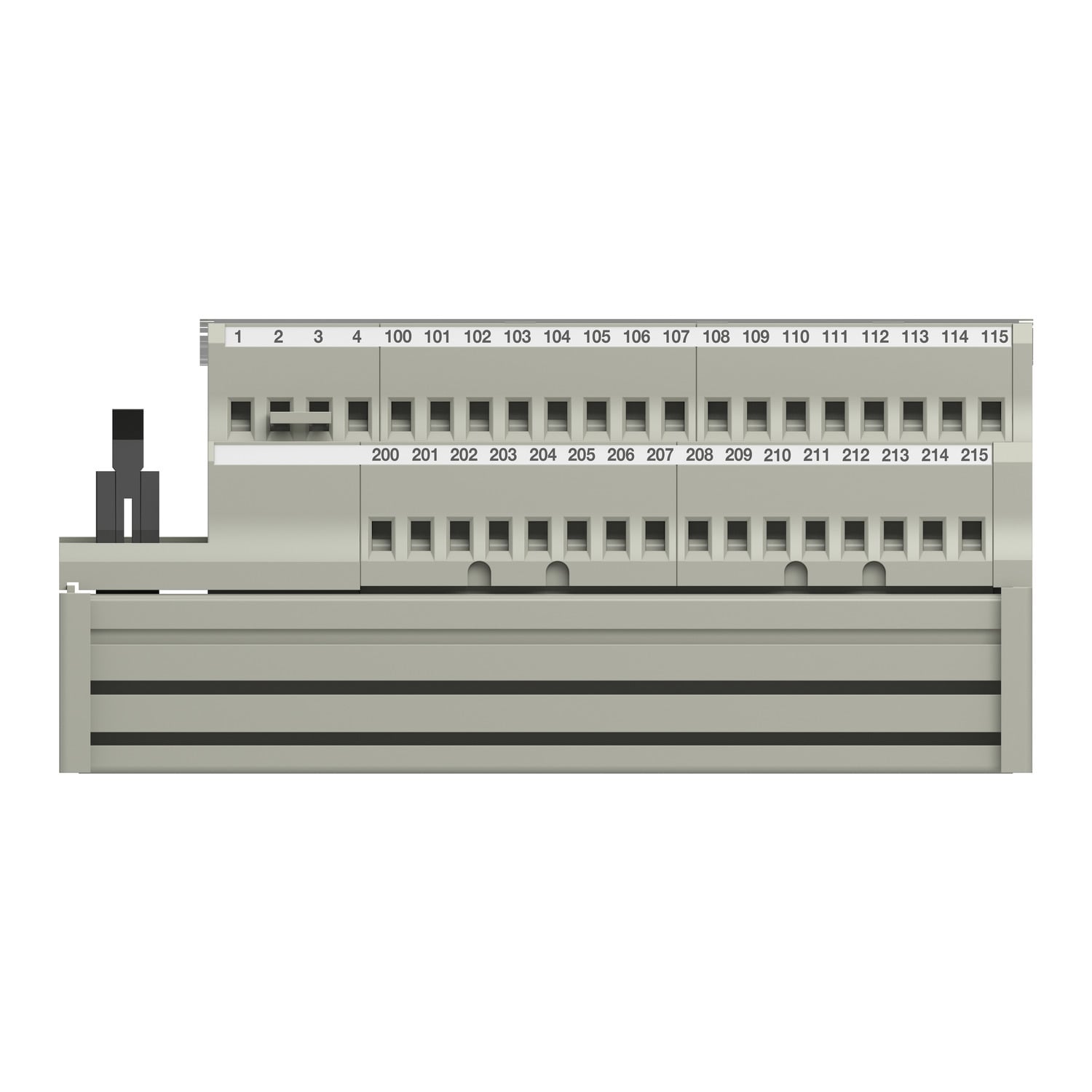

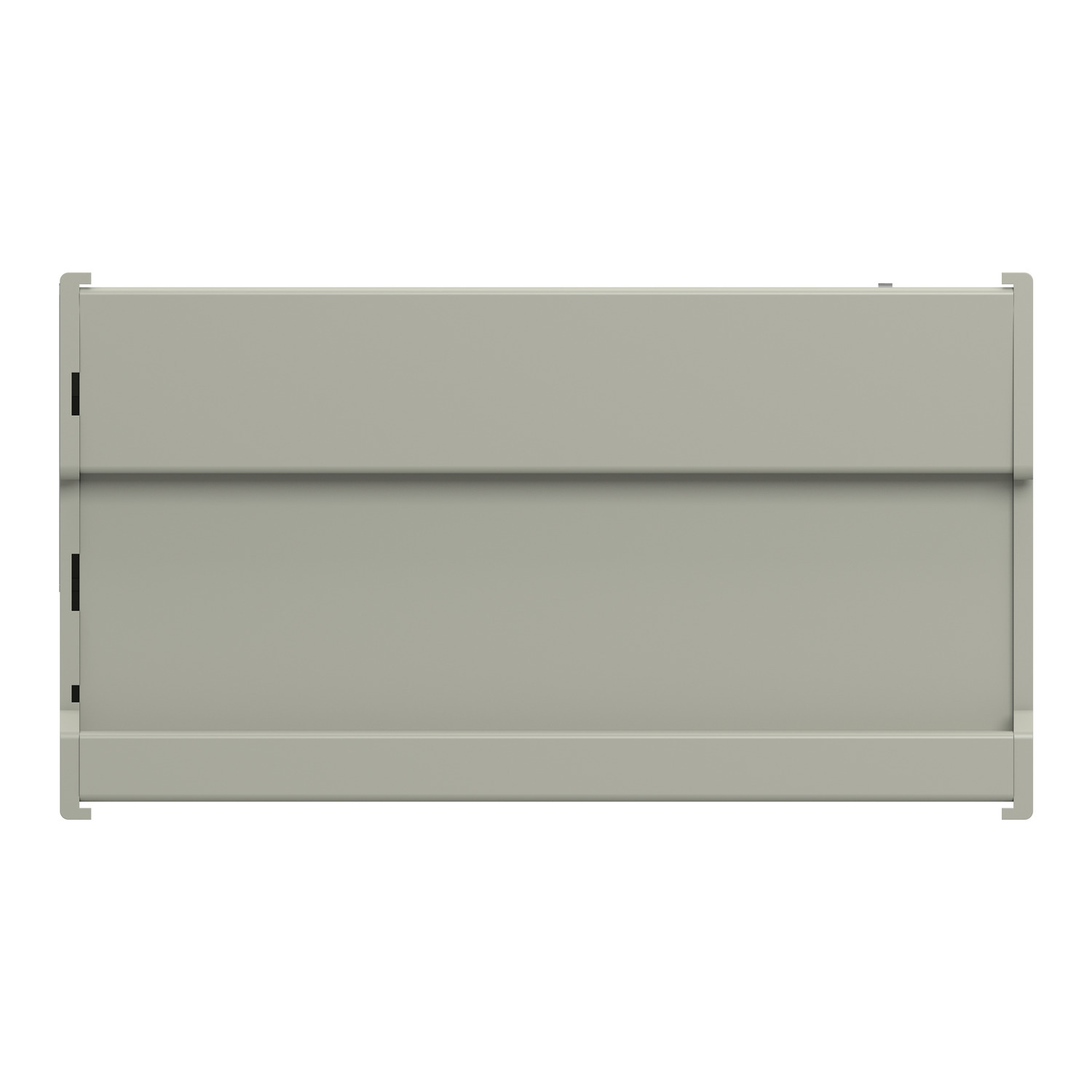

ModiconABE7 Advantys Telefast ABE7H16R21 Passive Connection Sub-Base, 32 Terminals, Screw Wire Clamp, Input/Output Function, For Use With Quantum Automation Platform
- MFR:
- Schneider Electric
- MFR #:
- ABE7H16R21
- Item #:
- 89331
ModiconABE7 Advantys Telefast ABE7H16R21 Passive Connection Sub-Base, 32 Terminals, Screw Wire Clamp, Input/Output Function, For Use With Quantum Automation Platform
- MFR #:
- ABE7H16R21
- Item #:
- 89331
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels. It has 2 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.3kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Manuals and Documentation
| Catalog Number | ABE7H16R21 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Connector Type | HE-10 |
| Mounting | Din Rail |
| Power Supply | 19...30 V IEC 61131-2;DC |
| Special Features | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end;screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid;screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end;screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end;screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1451863&lang=en-us |
| GTIN | 03389110544961 |
| Item Type | Passive discrete I/O sub-base |
