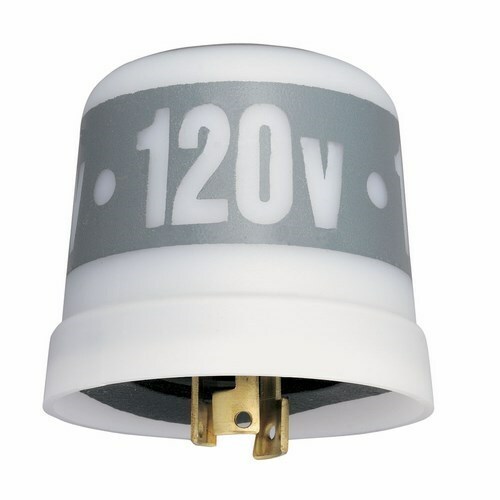

LC4521LA LC4500 Locking Mounting Thermal Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Fixture Mount, Polypropylene
- MFR:
- Intermatic
- MFR #:
- LC4521LA
- UPC:
- 078275002661
- Item #:
- 89277
LC4521LA LC4500 Locking Mounting Thermal Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Fixture Mount, Polypropylene
- MFR #:
- LC4521LA
- UPC:
- 078275002661
- Item #:
- 89277
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$14.23
each
These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.
Manuals and Documentation
| Catalog Number | LC4521LA |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Lock Type |
| Frequency Rating | 50/60 HZ |
| Mounting | Twistlock Mount |
| Sensitivity | 0.5 FC (Minimum) ON, 15 FC (Minimum) OFF |
| Sensor | Thermal Type Photo Control (Cadmium Sulfide) |
| Special Features | Features: Cadmium Sulfide Photocell, Polypropylene Housing with UV Protection, 2400 Volt Open Type Spark Gap Arrester |
| Standard | UL Recognized, CSA, Title CA 20 Listed, California Title 24 Compliant |
| Supply Voltage | 120 VAC |
| UPC | 078275002661 |
| GTIN | 00078275002661 |
| Item Type | TwistLock Photocell |
| Size | 3 DIAMETER X 2-3/4 HEIGHT IN, 7.6 DIAMETER X 7 HEIGHT CM |
| Operating Temperature | -20 to +104 DEG F, -29 to +40 DEG C |
| Cross Reference Products | 5021M |
