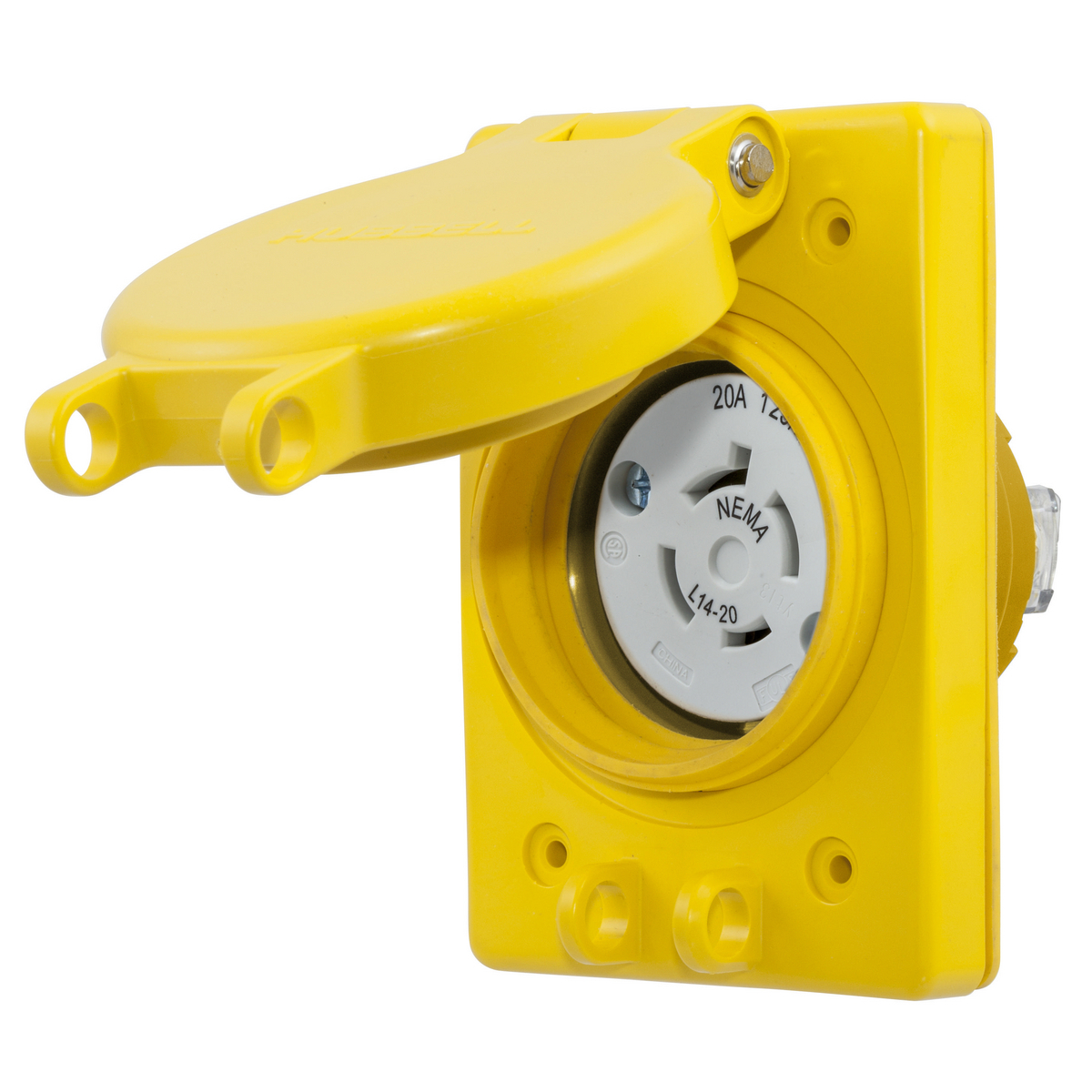

HBL67W74 1-Phase Grounding Single Standard Watertight Screw Mount Locking Receptacle With Lift Cover, 125/250 V AC, 20 A, 3 Poles, 4 Wires, Yellow
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL67W74
- UPC:
- 783585433172
- Item #:
- 892515
HBL67W74 1-Phase Grounding Single Standard Watertight Screw Mount Locking Receptacle With Lift Cover, 125/250 V AC, 20 A, 3 Poles, 4 Wires, Yellow
- MFR #:
- HBL67W74
- UPC:
- 783585433172
- Item #:
- 892515
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$219.61
each
Hubbell Watertight receptacles with lift covers provide an impact resistant UL Type 4X seal combined with corrosion resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock receptacles. The Watertight receptacles can either be mounted to FD/FS boxes (see page C-9) or panel mounted to a flat surface. Combined, this makes a diversified product with the high quality needed in industrial, wet and wash down applications.
Manuals and Documentation
| Catalog Number | HBL67W74 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Industrial/Commercial |
| Color | Yellow |
| Connection | Screw Terminals |
| Material | Elastomer/Composite |
| Mounting | Screw |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Phase | 1 |
| Special Features | Watertight |
| Standard | IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards |
| UPC | 783585433172 |
| GTIN | 00783585433172 |
| Item Type | Receptacle |
| Size | 4.56 in x 3.10 in x 2.92 in |
| Environmental Conditions | Watertight |
| Voltage Rating | 125/250 |
| Wattage | 5000 W |
| Wire Size | #18 AWG to #8 AWG |
