Killark

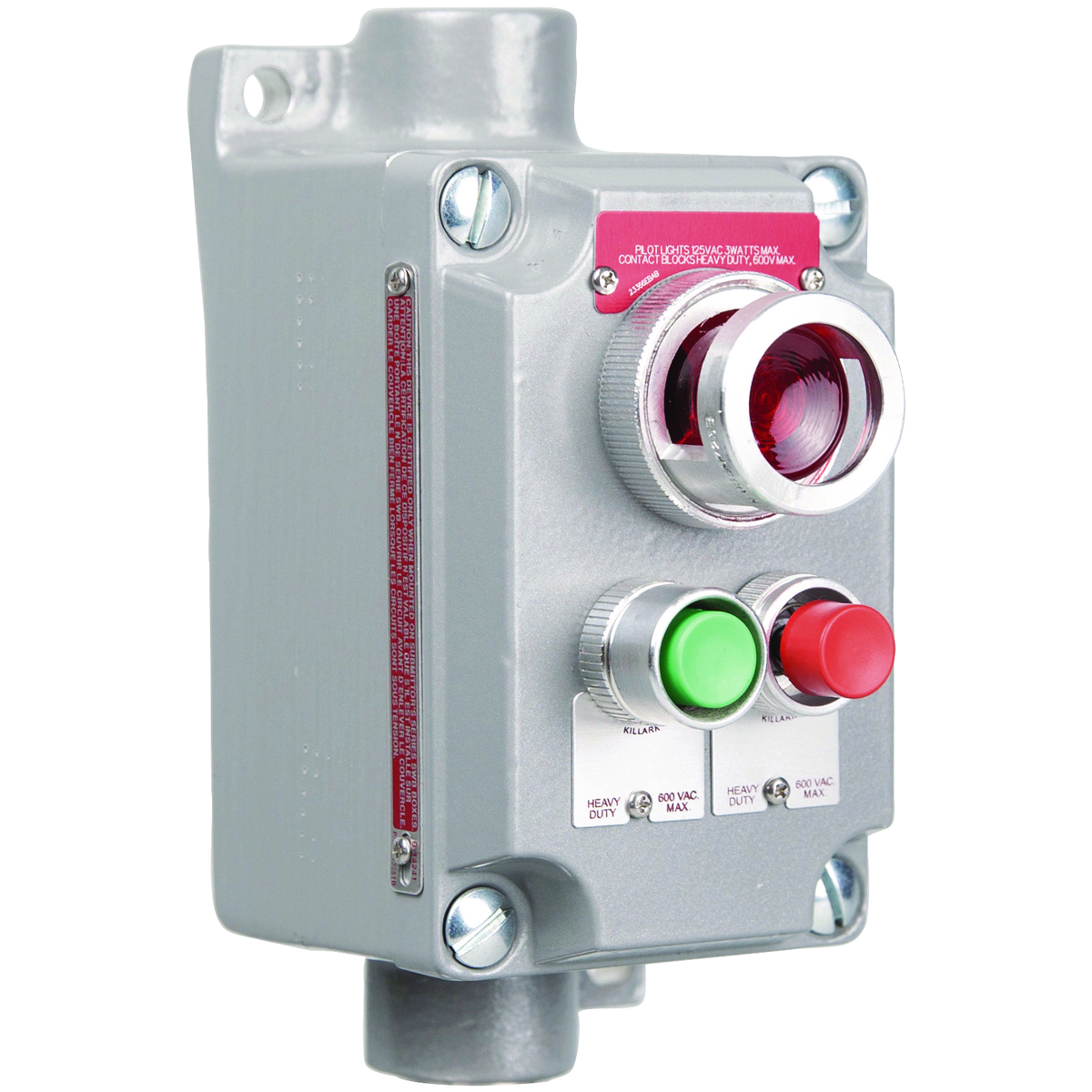

XCS-5A15 Feed-Through Control Station With Pilot Light and (2) Mini Pushbutton, 120/600 V AC, 1NO-1NC Contact, 3 Operators, NEMA 7CD/9EFG NEMA Rating

MFR:
Killark, a Hubbell affiliate
MFR #:
XCS-5A15
UPC:
783936891514
Item #:
89077

Availability

Location Available Qty
Available Available to Order
$630.26 each
Manuals and Documentation
Catalog Number XCS-5A15
Manufacturer Killark, a Hubbell affiliate
Brand Killark
Country of Origin United States
Made in USA Yes
Action Momentary
Actuator Double Pushbutton and Pilot Light
Amperage Rating 10
Application Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Color Green;Red P.B.; Red Light
Contact Configuration 1-NO/1-NC
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Enclosure Aluminum enclosure
Number of Poles 2
Special Features Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Standard UL, CSA
UPC 783936891514
GTIN 00783936891514
Item Type Aluminum Box And Cover With Pilot Light And Two Mini Push Buttons
Size 5-7/8" H x 3" W x 3-5/16" D
Environmental Conditions Hazardous locations
Voltage Rating Pilot light: 120 VAC. Push button: 600 VAC maximum.
Wattage 3W
