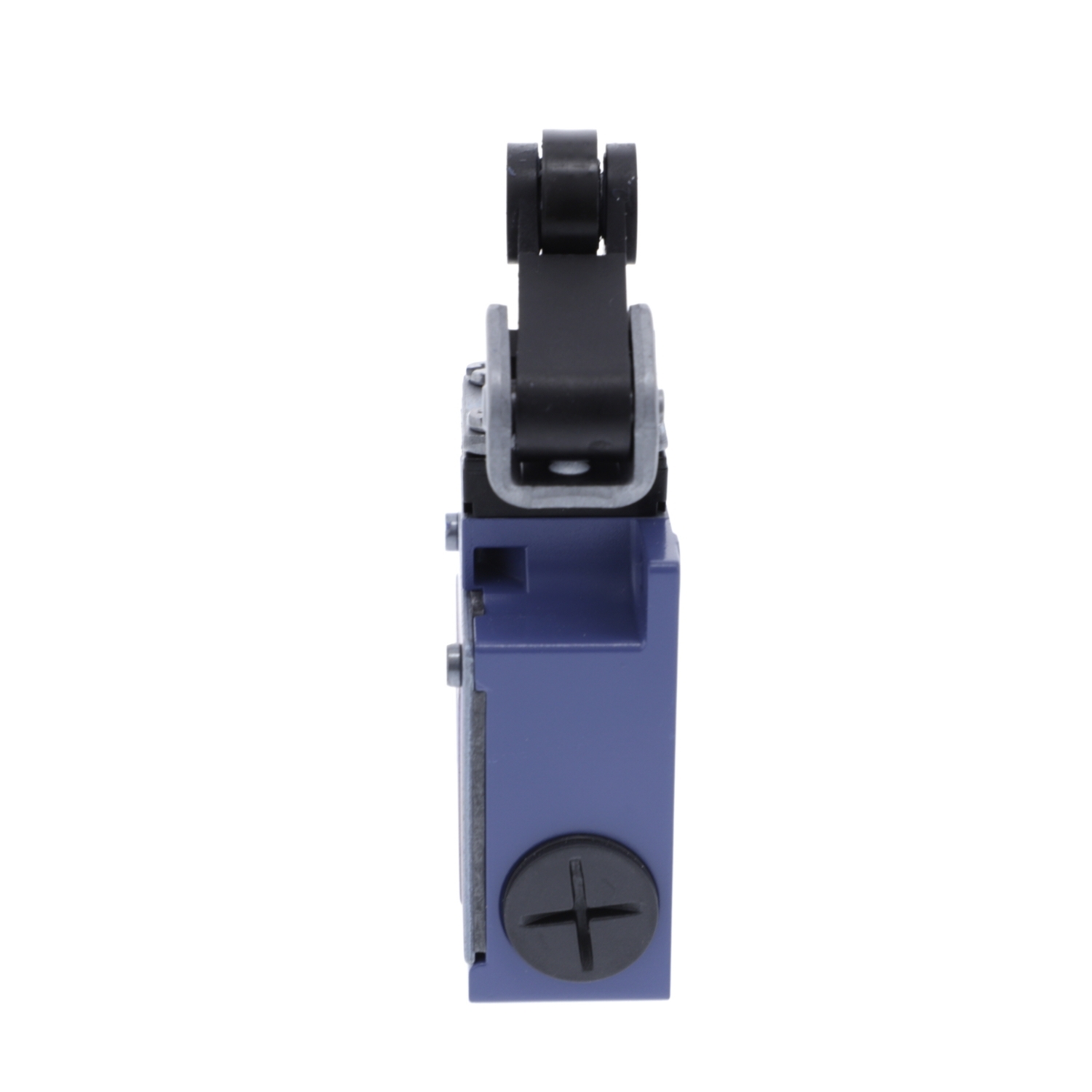

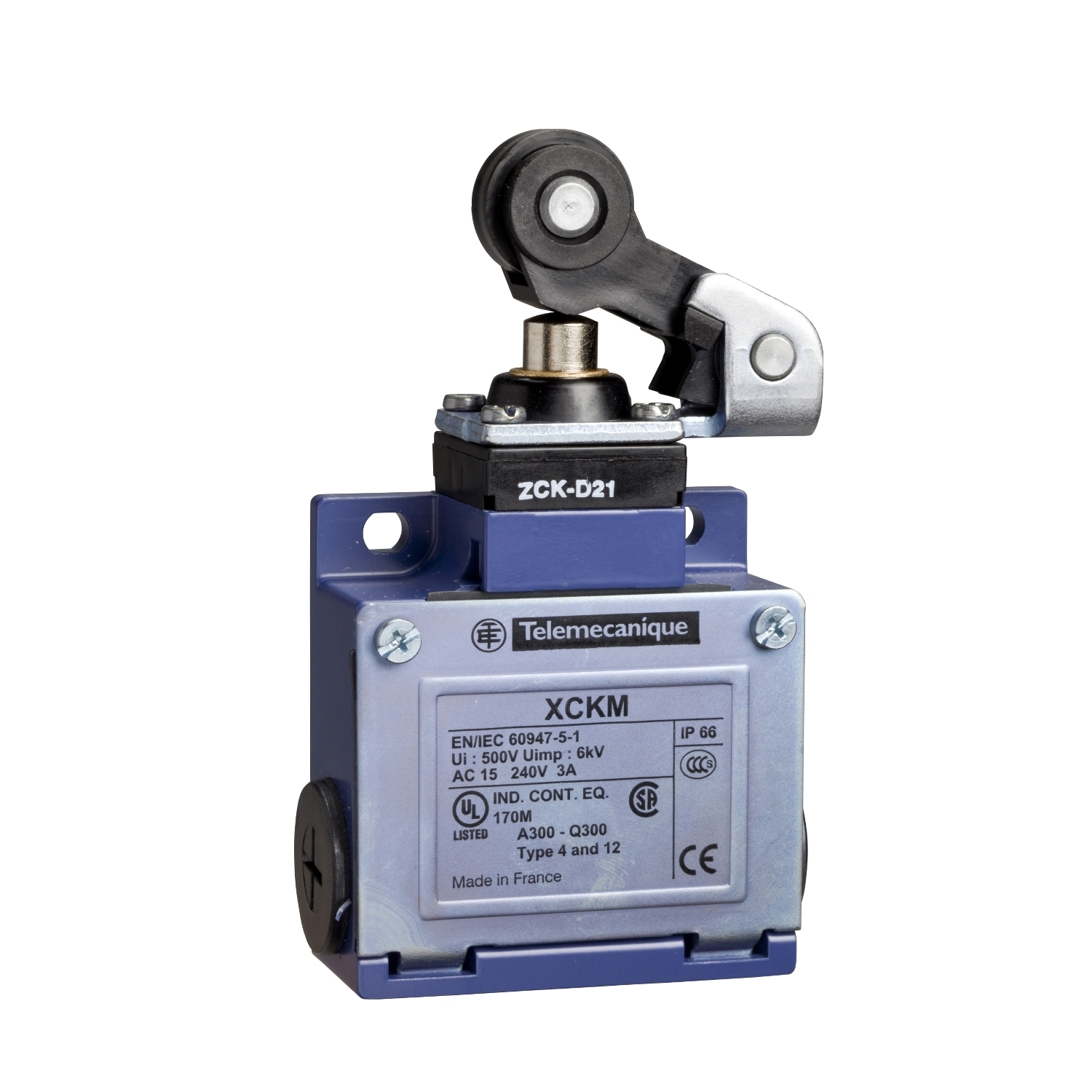

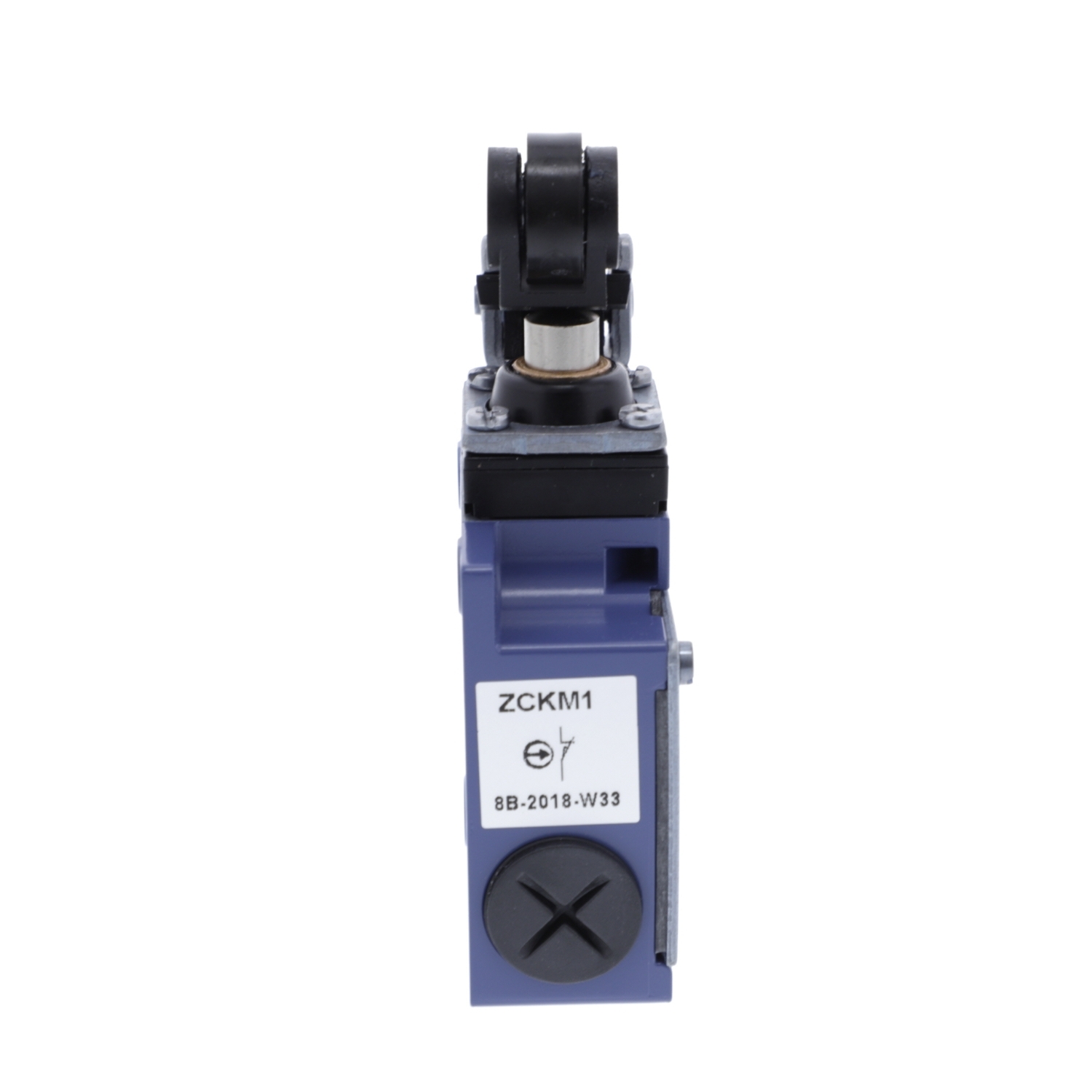

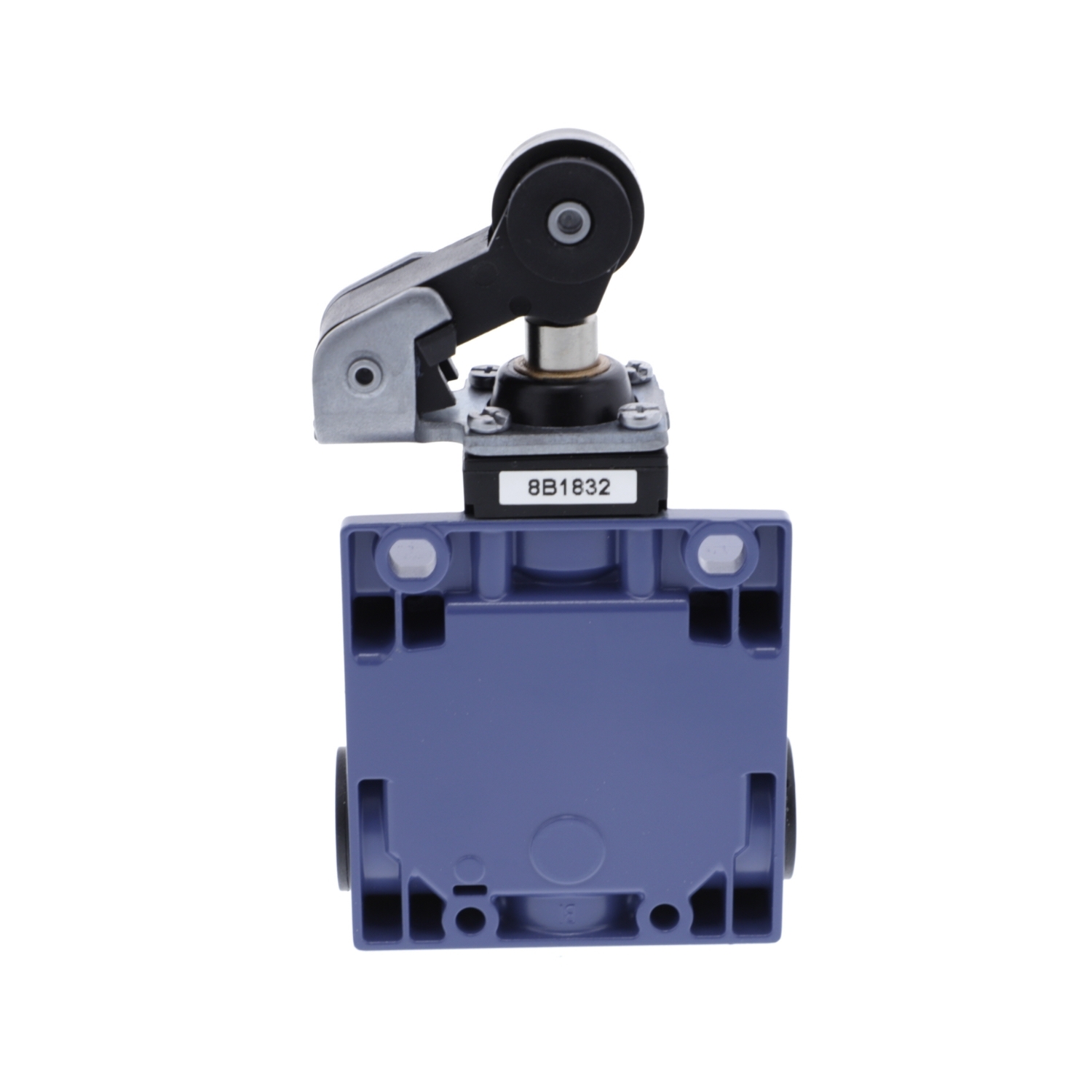

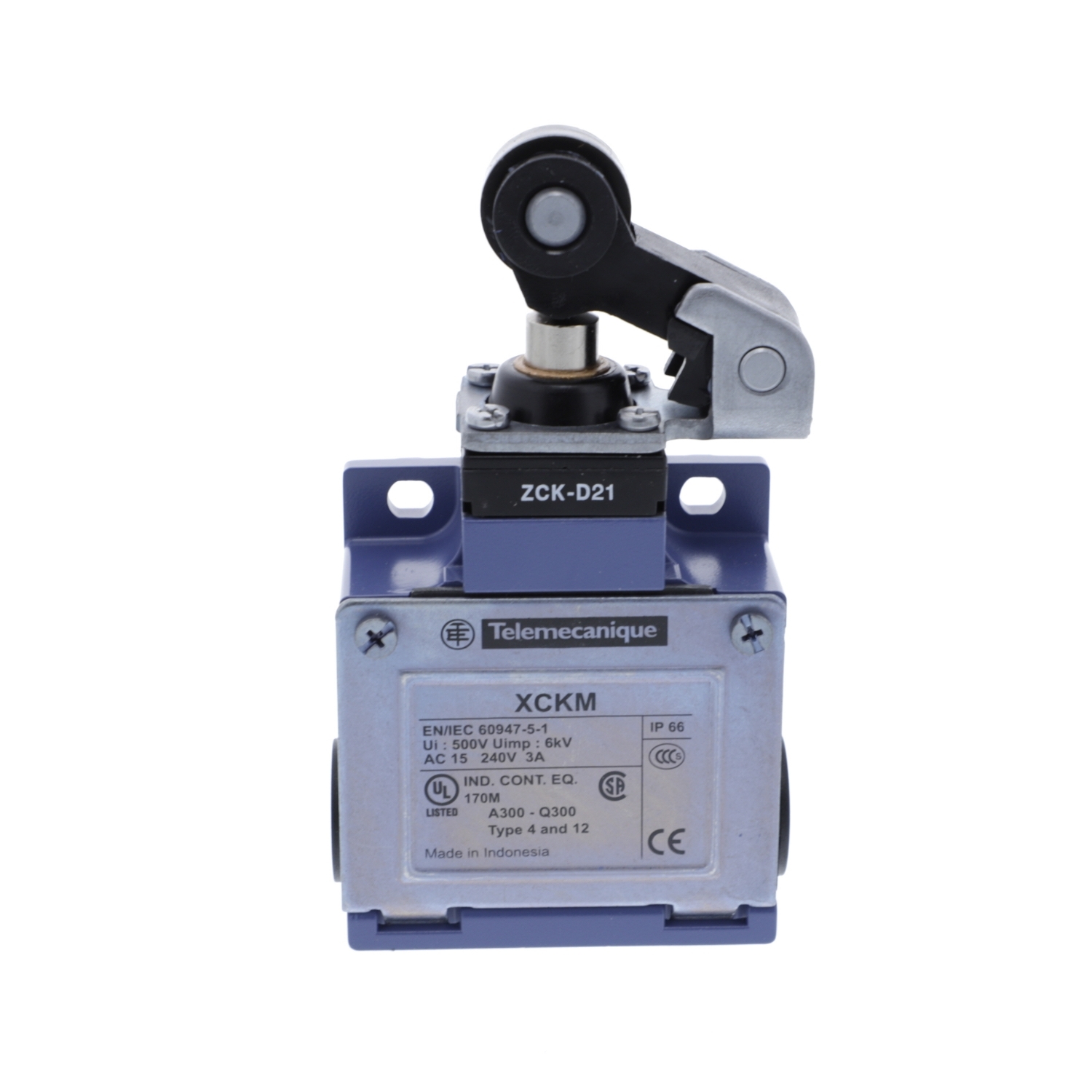

XCKM121H29 OsiSense Compact Fixed Medium Duty Standard Format Limit Switch, 240 V AC, 10 A, Spring Return/Roller Lever Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKM121H29
- UPC:
- 785901871736
- Item #:
- 89000
XCKM121H29 OsiSense Compact Fixed Medium Duty Standard Format Limit Switch, 240 V AC, 10 A, Spring Return/Roller Lever Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKM121H29
- UPC:
- 785901871736
- Item #:
- 89000
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This XCKM classic format limit switch has a steel roller lever plunger with horizontal actuation and a Zamak body. This limit switch has a robust Zamak body, 3 cable entries, a modular design allowing easier maintenance and a classic format. It is IP66 and IK05 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Manuals and Documentation
| Catalog Number | XCKM121H29 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Lateral approach, 1 direction;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller lever plunger thermoplastic |
| Application | CLASSIC |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,CCC-CSA-UL,IEC 60947-5-1-EN 60204-1-CSA C22.2 NO 14-IEC 60204-1-UL 508-EN 60947-5-1,IK05 EN 50102,IP66 EN/IEC 60529,CLASS I IEC 61140-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856570&lang=en-us |
| UPC | 785901871736 |
| GTIN | 03389110928570 |
| Item Type | Limit switch |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
