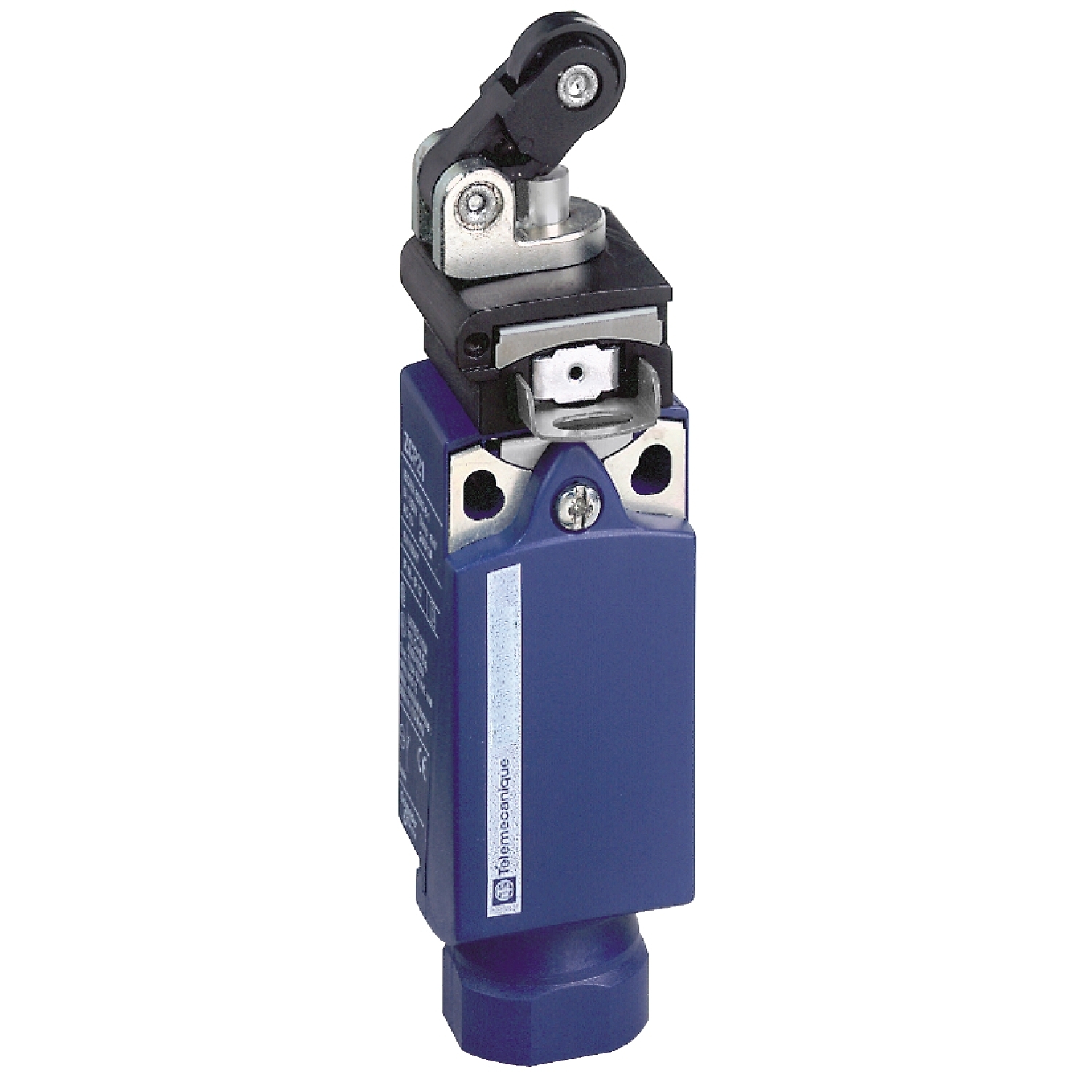

Limit switch, Limit switches XC Standard, XCPR, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, slow, 1/2NPT
MFR: Telemecanique Sensors
MFR #: XCPR2521N12
UPC: 785901425519
Item #: 889548
Limit switch, Limit switches XC Standard, XCPR, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, slow, 1/2NPT
MFR #: XCPR2521N12
UPC: 785901425519
Item #: 889548
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$279.15
each
limit switch XCPR - th.plastic roller lever plung. Hor - 1NC+1NO - slow - 1/2NPT
Manuals and Documentation
- Catalog Number
- XCPR2521N12
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Sub Brand
- XCPR
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- France
- Made in USA
- No
- Action
- Lateral approach, 1 direction;Slow-break, break before make;By 30 Degrees cam
- Actuator
- Spring return roller lever plunger thermoplastic
- Application
- COMPACT VARIABLE MANUAL RESET
- Connection
- Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- Contact Configuration
- 1 NC + 1 NO
- Mounting
- By The Body
- Number of Poles
- 2
- Operating Cycles
- 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
- Special Features
- FIXED,PLASTIC
- Standard
- 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 60204-1-EN 60947-5-1-CSA C22.2 NO 14-IEC 60947-5-1-UL 508-IEC 60204-1,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,UL-CSA
- UPC
- 785901425519
- GTIN
- 03389110211535
- Item Type
- Limit switch
- Size
- 1.18
- Operating Temperature
- -25-70 A Degrees C
