Telemecanique

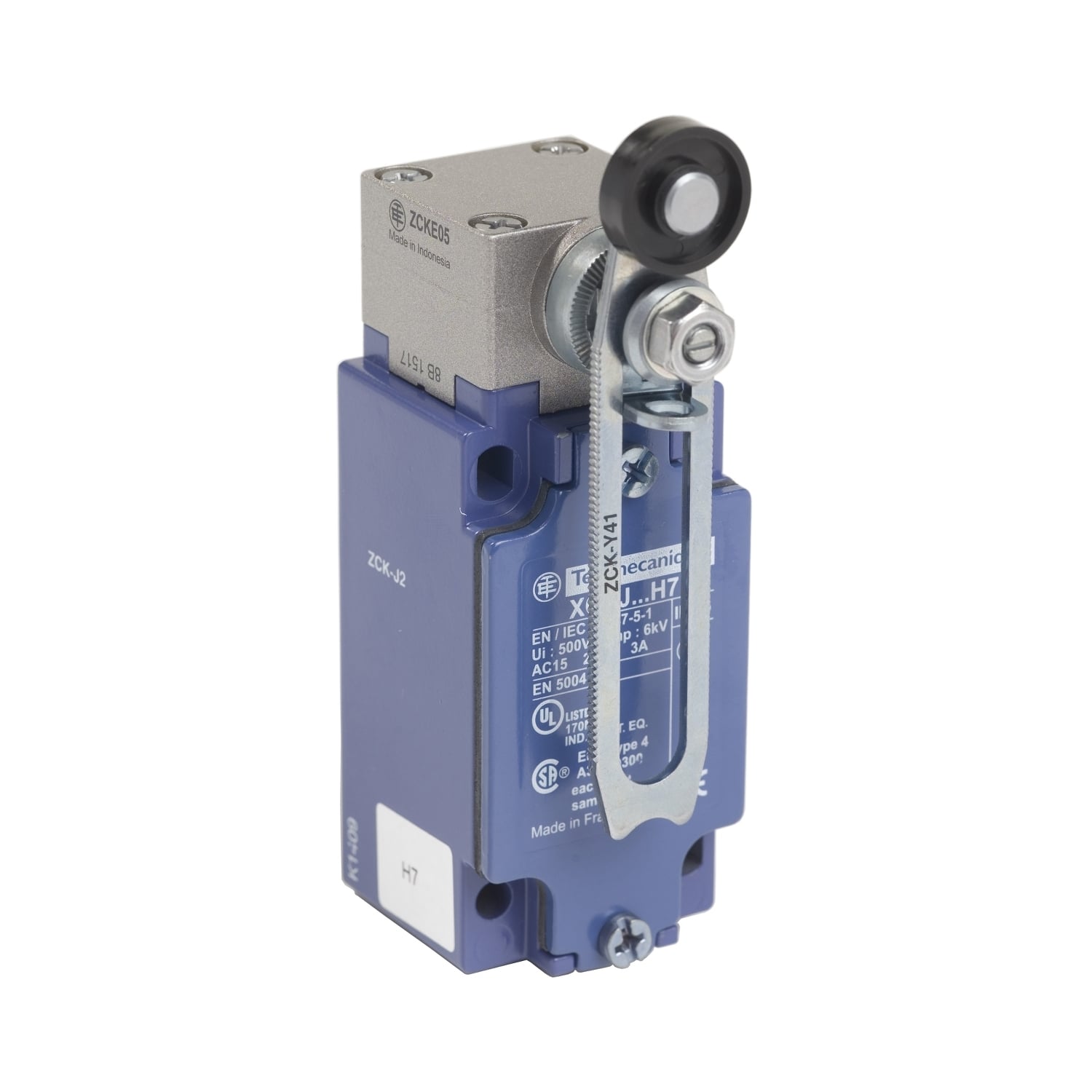

XCKJ267H7 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 10 A, Spring Return Without Operating Lever Actuator, 1CO Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKJ267H7
Item #:
889246

LIMIT SWITCH - XCKJ - H7 - ROLLER PLUNGER

Manuals and Documentation
Catalog Number XCKJ267H7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 1 or 2 programmable direction;Snap action, simultaneous
Actuator Spring return without operating lever
Amperage Rating 10
Application INDUSTRIAL
Connection Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
Contact Configuration 1 C/O
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,METAL
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CCC-UL-CSA,IK07 EN 50102,IP66 IEC 60529,UL 508-EN 60947-5-1-IEC 60947-5-1-EN 60204-1-CENELEC EN 50041-IEC 60204-1-CSA C22.2 NO 14
GTIN 03389119074858
Item Type Limit switch
Size 1.73
Operating Temperature -25-70 A Degrees C
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
