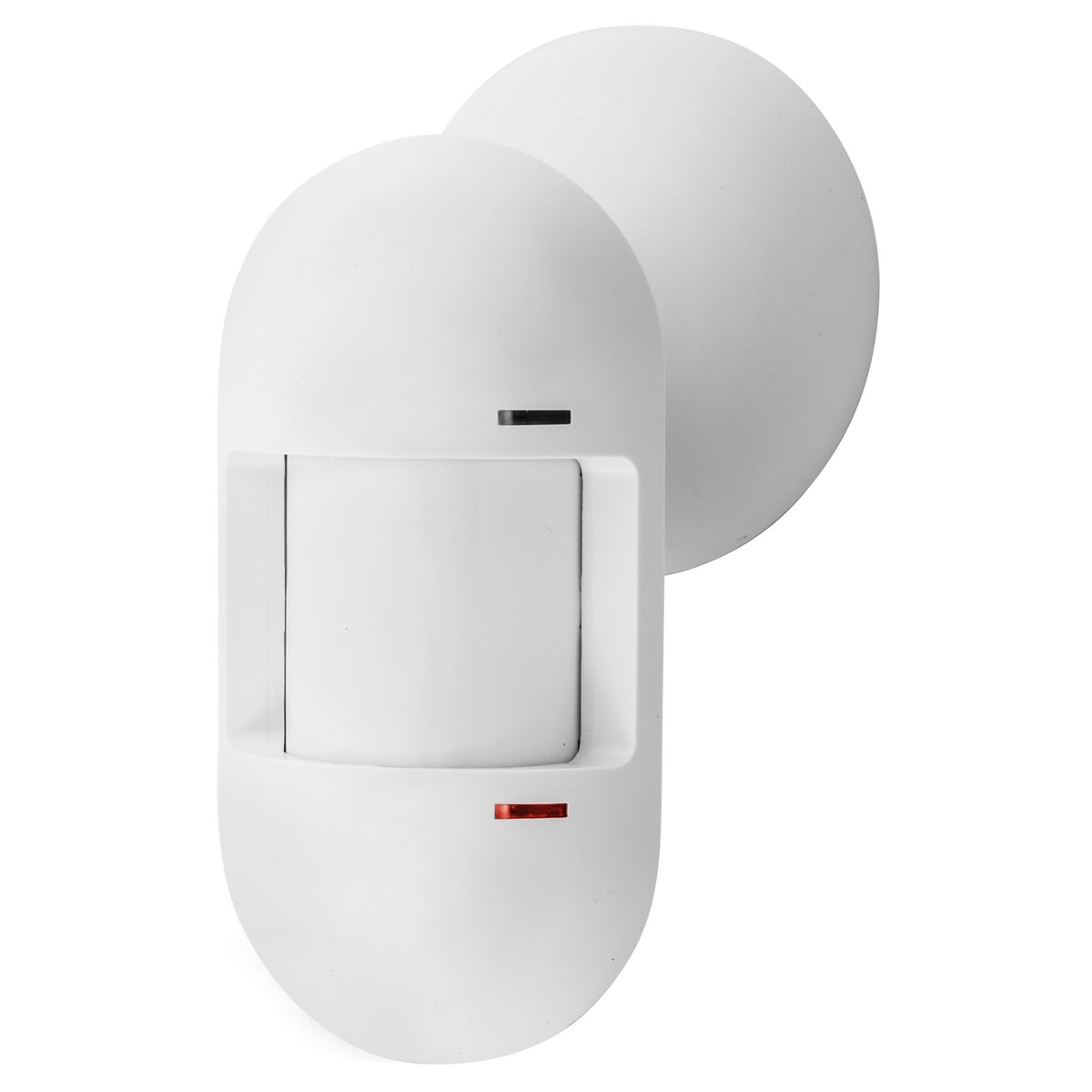

ATP120HBRP Adaptive Dual Technology Occupancy Sensor Switch With Photocell and Relay, Passive Infrared Sensor, 120 sq-ft Coverage
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- ATP120HBRP
- UPC:
- 783585349251
- Item #:
- 885113
ATP120HBRP Adaptive Dual Technology Occupancy Sensor Switch With Photocell and Relay, Passive Infrared Sensor, 120 sq-ft Coverage
- MFR #:
- ATP120HBRP
- UPC:
- 783585349251
- Item #:
- 885113
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$413.68
each
Standard Passive Infrared Technology requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.
Manuals and Documentation
| Catalog Number | ATP120HBRP |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Application | Wall Mount |
| Color | White |
| Connector | Wire Leads |
| Indicator | PIR= Red LED |
| Mounting | Wall |
| Operating Cycles | 6,000 Cycles Minimum |
| Sensing Range | 8 to 12 Feet Mounting Height |
| Sensitivity | Adaptive 0 to 100% |
| Sensor | Adaptive Passive Infrared |
| Special Features | With Photocell and Relay |
| Standard | ASHRAE 90.1 Compliant;cULus Listed To UL244A |
| Supply Voltage | Low Voltage V |
| UPC | 783585349251 |
| GTIN | 00783585349251 |
| Item Type | Sensors |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C) |
| Target Size | People in |
