Discontinued
Telemecanique

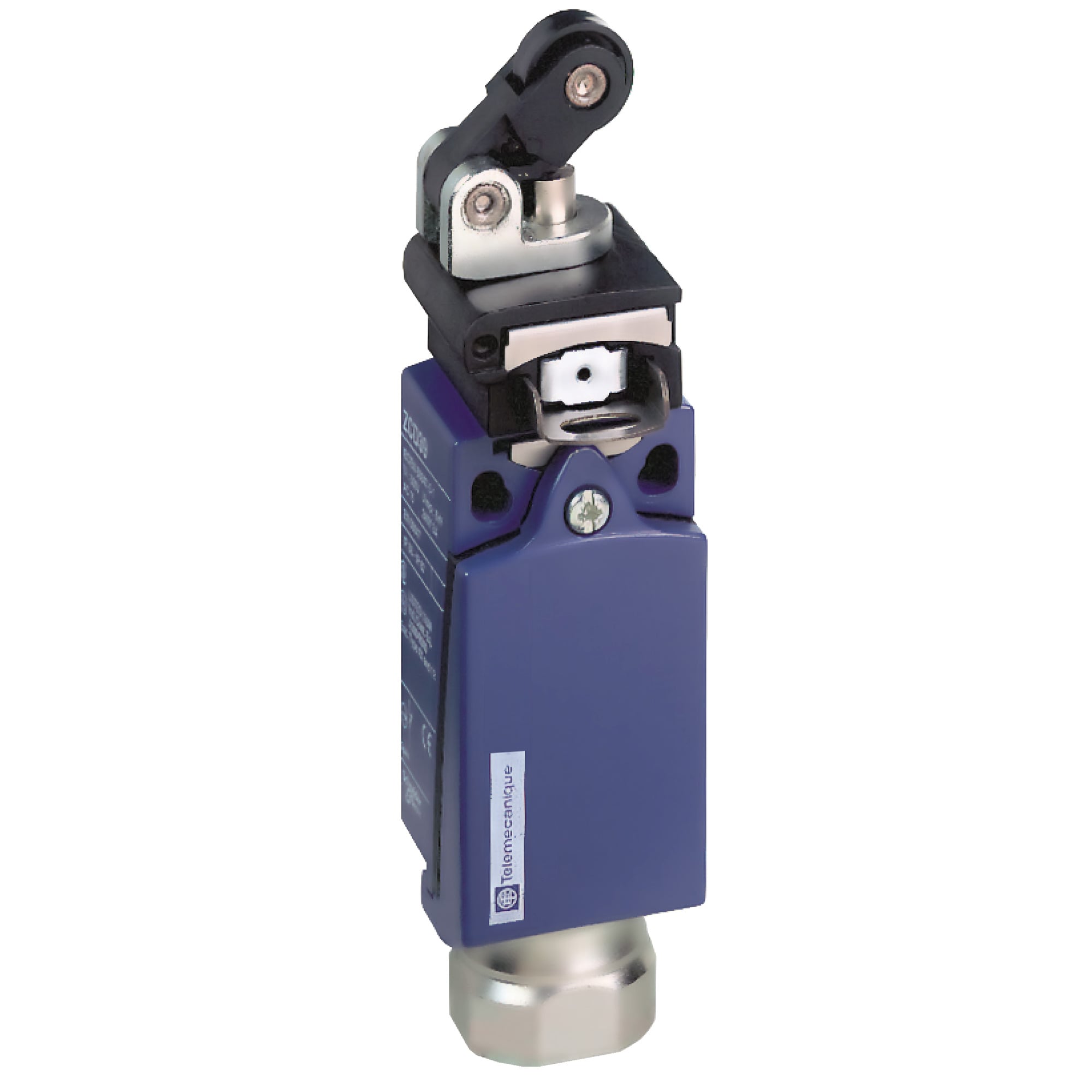

limit switch XCDR - th.plastic roller lever plung. Hor - 1NC+1NO - slow - 1/2NPT

MFR:
Telemecanique Sensors
MFR #:
XCDR2521N12
Item #:
883950

Availability

Location Available Qty
Available Available to Order
$116.51 each

limit switch XCDR - th.plastic roller lever plung. Hor - 1NC+1NO - slow - 1/2NPT

Manuals and Documentation
Catalog Number XCDR2521N12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Sub Brand XCDR
Country of Origin France
Made in USA No
Action BY 30A Degrees CAM,LATERAL APPROACH, 1 DIRECTION,SLOW-BREAK, BREAK BEFORE MAKE
Actuator SPRING RETURN ROLLER LEVER PLUNGER THERMOPLASTIC
Application COMPACT VARIABLE MANUAL RESET
Connection SCREW-CLAMP TERMINALS 1 X 0.5...2 X 2.5 MMA²
Contact Configuration 1 NC + 1 NO
Mounting By The Body
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,METAL
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 60204-1-EN 60947-5-1-IEC 60204-1-UL 508-CSA C22.2 NO 14-IEC 60947-5-1,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,UL-CSA
GTIN 03389110213904
Item Type LIMIT SWITCH,PLUNGER HEAD
Size 30 MM,31 MM,65-65 MM
Operating Temperature -25-70 A Degrees C
