Telemecanique

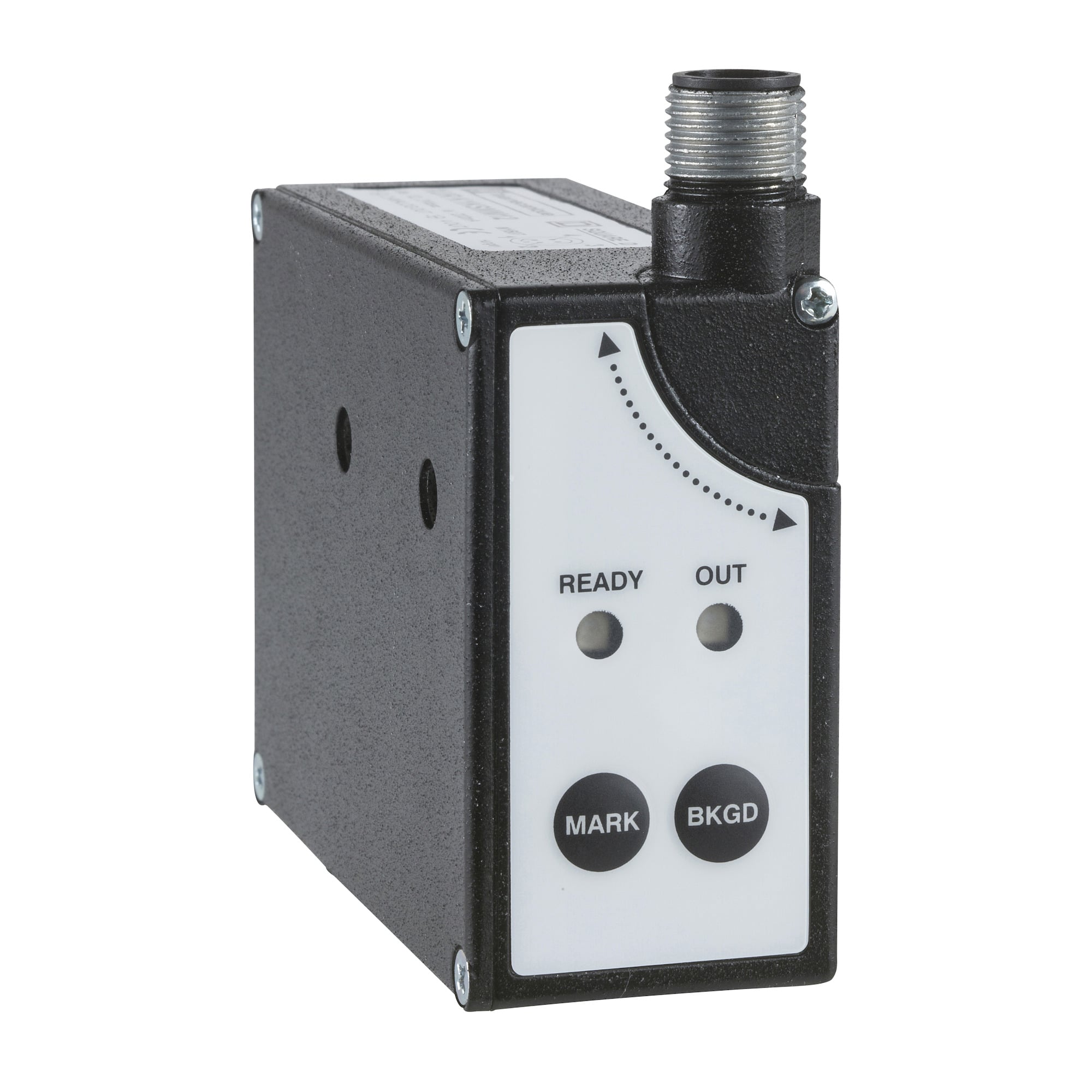

XURK1KSMM12 OsiSense XU Simply Easy 3-Wire Adjustable Compact Photoelectric Sensor With Reverse Polarity Protection, 0.35 in, Infrared Sensing Beam, 0.05 ms Response, NPN/PNP 1NO-1NC Output

MFR:
Telemecanique Sensors
MFR #:
XURK1KSMM12
UPC:
785901784777
Item #:
882854

Availability

Location Available Qty
Available Available to Order
$1,406.14 each

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XUR compact design. It has a diffuse detection system. It supports 18mm spot 2mm x 7mm need lens XURZ01, 7mm spot 1mm x 4mm need lens XURZ02 and 9mm spot 1.5mm x 5mm without lens nominal sensing distance and 1 normally opened or 1 normally closed programmable PNP or NPN discrete output. It is furnished with 3-position, 4-pin M12 adjustable male connector for electrical connection and 1 LED for output state. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of =80mA and a switching frequency of =10Hz. It is an IP67 rated product. The enclosure is made of zinc alloy with glass lens. Its dimensions are 31mm (Width) x 58mm (Depth) x 82mm (Height) and weighs 0.55kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE.

Manuals and Documentation
Catalog Number XURK1KSMM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Colour mark
Connection 1 male connector M12 adjustable 3 positions, 4 pins
Enclosure IP67 CONFORMING TO IEC 60529,ZINC ALLOY
Operating Cycles <= 10 kHz
Output PNP or NPN;1 NO or 1 NC programmable;Discrete;analogue;Solid state
Response Time <= 0.05 MS
Sensing Range 18-18 MM 2 X 7 MM NEED LENS XURZ01-7-7 MM 1 X 4 MM NEED LENS XURZ02-9-9 MM 1.5 X 5 MM WITHOUT LENS
Special Features Output state 1 LED red)
Standard CE,IP67 IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=874598&lang=en-us
UPC 785901784777
GTIN 03389110178227
Item Type Application packaging;Diffuse;Compact;Photo-electric sensor
Size 2.28
Operating Temperature -10-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
