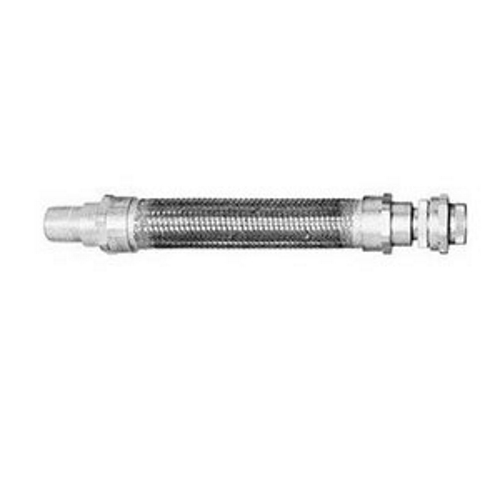

1-1/4 EX FLEXIBLE COUPLING
- MFR:
- Appleton Electric
- MFR #:
- EXLK-424
- UPC:
- 781381329156
- Item #:
- 879726
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,531.67
each
UNILETS Flexible Coupling, Trade Size: 1-1/4 IN, Outside Diameter: 2.63 IN, Length: 30 IN, Radius: 16 IN Bending, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type (1) Male Nipple, (1) Union
Manuals and Documentation
| Catalog Number | EXLK-424 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Rigid Metal Conduit And IMC |
| Connection | Female Threaded |
| Flexibility | Rigid And IMC |
| Material | Outer Bronze Braid And Inner Brass Core With Insulating Liner |
| Special Features | Explosionproof, dust-ignitionproof, watertight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Heavy duty design resists mechanical abuse; Electrical conductivity equal to rigid conduit on a similar length basis no bonding jumper required; Interior insulating liner protects conductors from abrasion under vibrating conditions; Female end fitting with removable ductile iron union at one end and a female end fitting with a removable brass male nipple at the other end; Used in areas where vibration and movement is a problem, also used in place of rigid conduit in difficult-bend situations |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified, Class I, Division 1 And 2 And Class II, Division 1 And 2, Suitable For Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III |
| UPC | 781381329156 |
| GTIN | 00781381329156 |
| Item Type | Flexible Coupling |
| Length | 30 |
| Length UOM | Inch |
| Outside Diameter | 2.63 IN |
| Trade Size | 1-1/4 IN |
