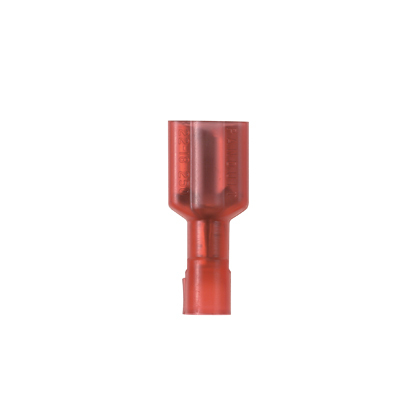

Pan-Term DNF18-187FIB-C Loose Piece Disconnect
MFR: Panduit
MFR #: DNF18-187FIB-C
UPC: 074983759781
Item #: 878503
Pan-Term DNF18-187FIB-C Loose Piece Disconnect
MFR #: DNF18-187FIB-C
UPC: 074983759781
Item #: 878503
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1.14
each
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032 (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.78 (19.8 mm) long and 0.29 (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Manuals and Documentation
- Catalog Number
- DNF18-187FIB-C
- Manufacturer
- Panduit
- Brand
- Panduit
- Country of Origin
- Mexico
- Made in USA
- No
- Color
- Red
- Connection
- Funnel Entry
- Finish
- Tin-Plated
- Insulation
- Nylon
- Material
- Brass
- Standard
- UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
- UPC
- 074983759781
- GTIN
- 00074983759781
- Item Type
- Disconnect
- Temperature Rating
- 221 Degrees Fahrenheit (105 Degrees Celsius)
- Voltage Rating
- 600
- Wire Size
- #18 AWG
