XACA06H7 Harmony Type XACA Medium Duty Empty Dual Insulated Pendant Station Enclosure, 80 mm W, NEMA 4/4X NEMA Rating, Polypropylene
- MFR:
- Schneider Electric
- MFR #:
- XACA06H7
- UPC:
- 785901306498
- Item #:
- 87788
XACA06H7 Harmony Type XACA Medium Duty Empty Dual Insulated Pendant Station Enclosure, 80 mm W, NEMA 4/4X NEMA Rating, Polypropylene
- MFR #:
- XACA06H7
- UPC:
- 785901306498
- Item #:
- 87788
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$224.92
each

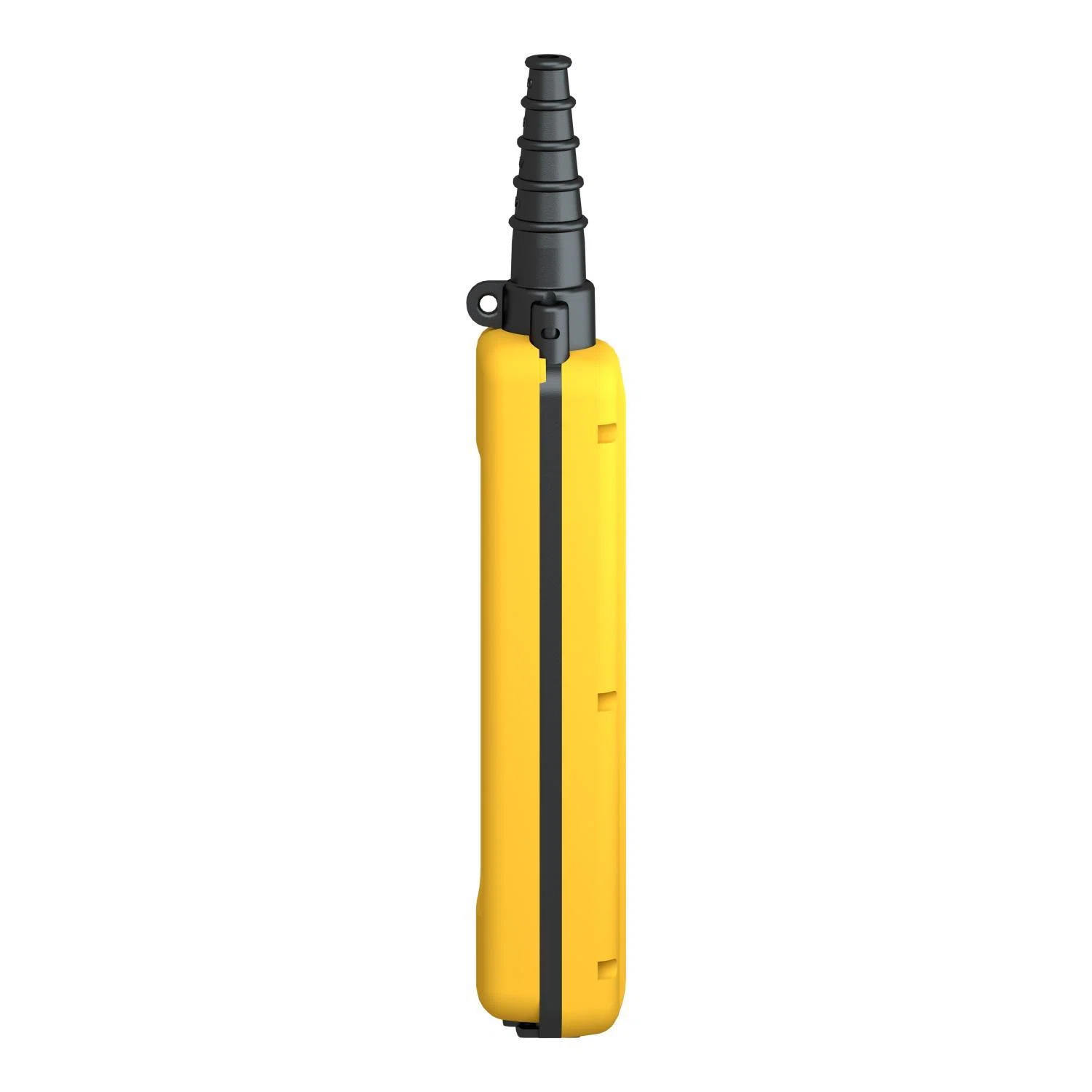

This Harmony XACA06H7 is an empty pendant control station with 6 vertical openings for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Manuals and Documentation
Features
- Impact and stain resistant enclosure for a sustained appearance despite rough usage conditions
- Eliminates the need to drill multiple 22mm holes in the machine and system
- Wide range of operating temperature from -25C to 70C
| Manufacturer Part Number | XACA06H7 |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| UPC | 785901306498 |
| EAN | 3389110306491 |
| Country Of Origin | CZ |
| Color | Black/Yellow |
| Material | Polypropylene |
| Mounting Type | Panel |
| Temperature Rating | -25 to 70 deg C |
| Type | Type XACA Medium Duty Empty Dual Insulated |
| Width | 80 mm |
| Number Of Outlets | 6 |
| Alternative Part Number | 8130400 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | GOST;UL;CCC;CSA;IK08 conforming to EN 50102;EN/IEC 60204-32;UL 508;CSA C22.2 No 14;EN/IEC 60947-5-1;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| Application | Control Circuit Applications |
| Insulation | Double Insulated |
| Nema Rating | NEMA 4/4X |
