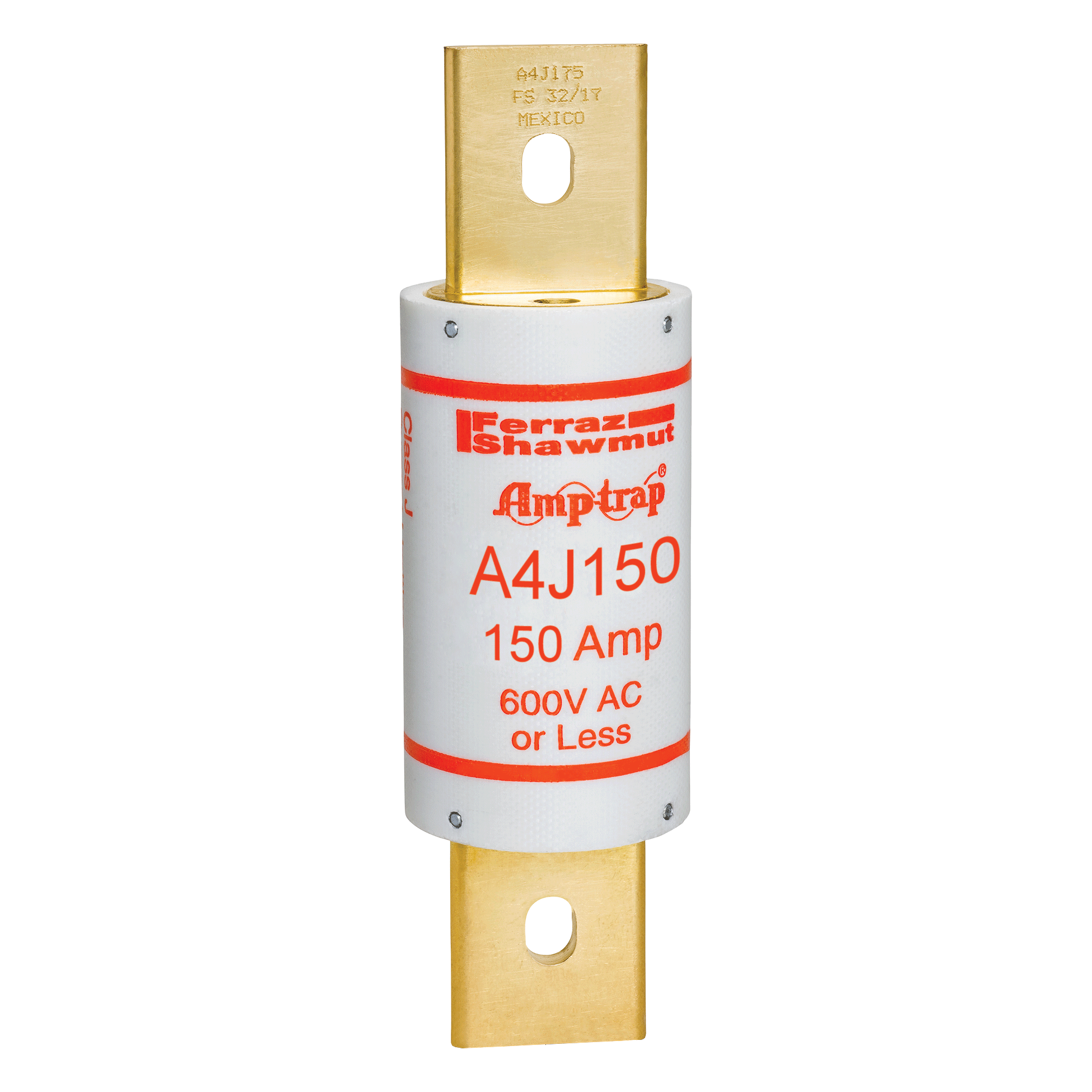

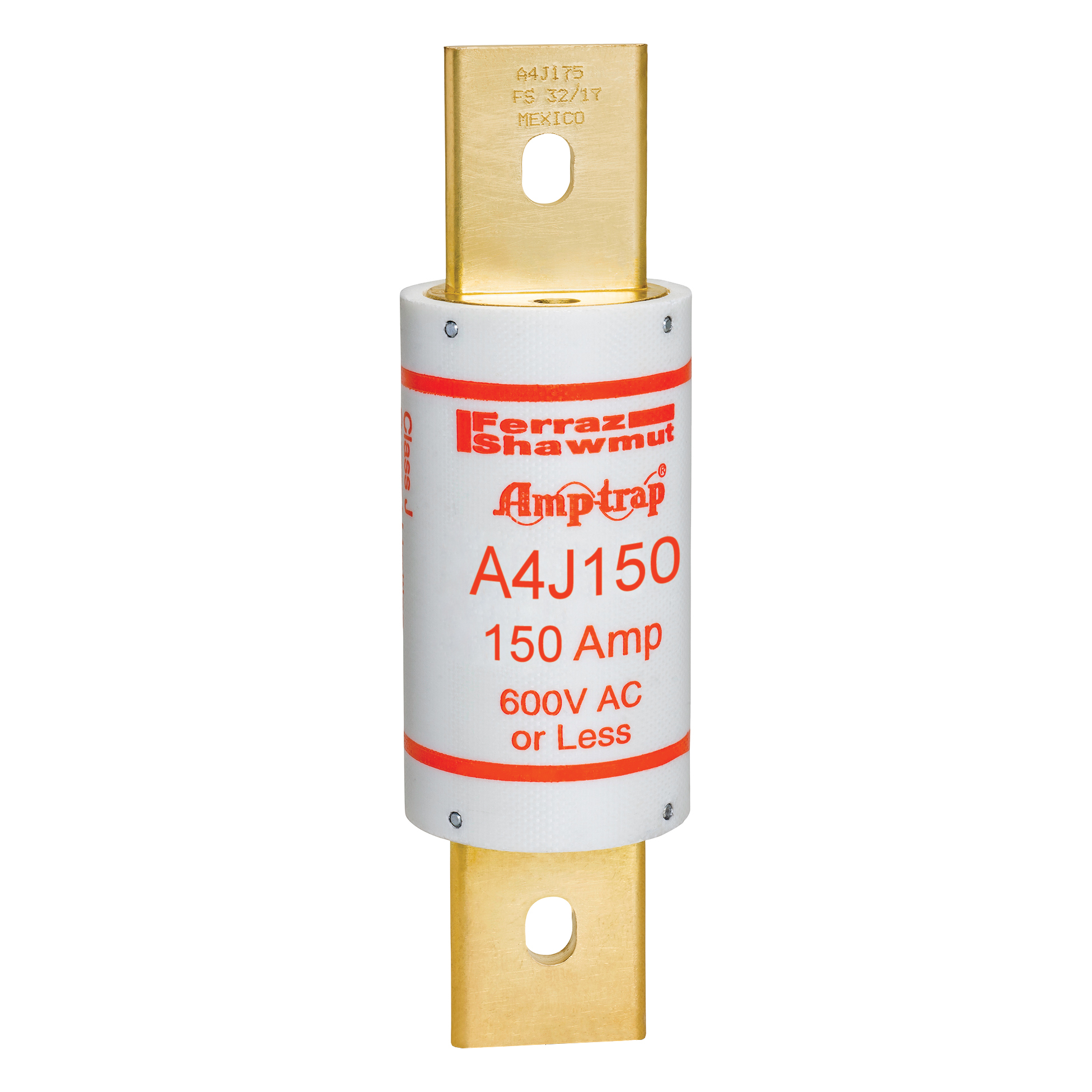

Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 150A Blade
MFR: Mersen
MFR #: A4J150
UPC: 782001960353
Item #: 87725
Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 150A Blade
MFR #: A4J150
UPC: 782001960353
Item #: 87725
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$611.80
each
Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 150A Blade Amp-Trap
Manuals and Documentation
- Catalog Number
- A4J150
- Manufacturer
- Mersen
- Brand
- Mersen
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 150
- Application
- Capacitors Load centers Panelboards Switchboards Bus duct Feeder circuits Circuit breakers Lighting, heating, and general loads
- Connection
- Blade
- Interrupt Rating
- 200 KA
- Mounting
- Clip
- Special Features
- High current limitation for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Fiberglass body provides dimensional stability in harsh industrial environments Easy-to-read imprint label for quick recognition and replacement
- Standard
- UL listed to standard 248-8 File E2137 CSA certified to standard C22.2 no. 248.8 DC listed to UL 248 IEC 269-2-1
- UPC
- 782001960353
- GTIN
- 00782001960353
- Item Type
- Class J
- Size
- 5.75 x 1.62
- Voltage Rating
- 600
