Panduit®

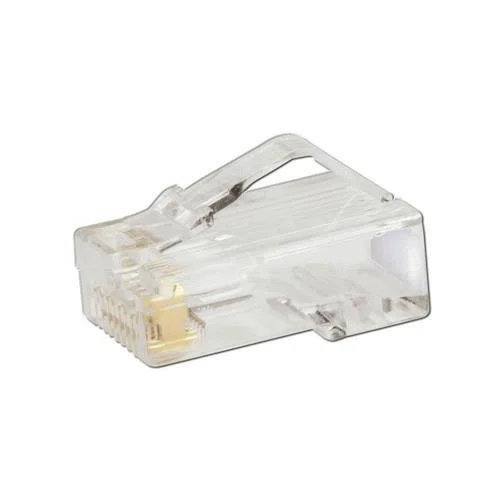

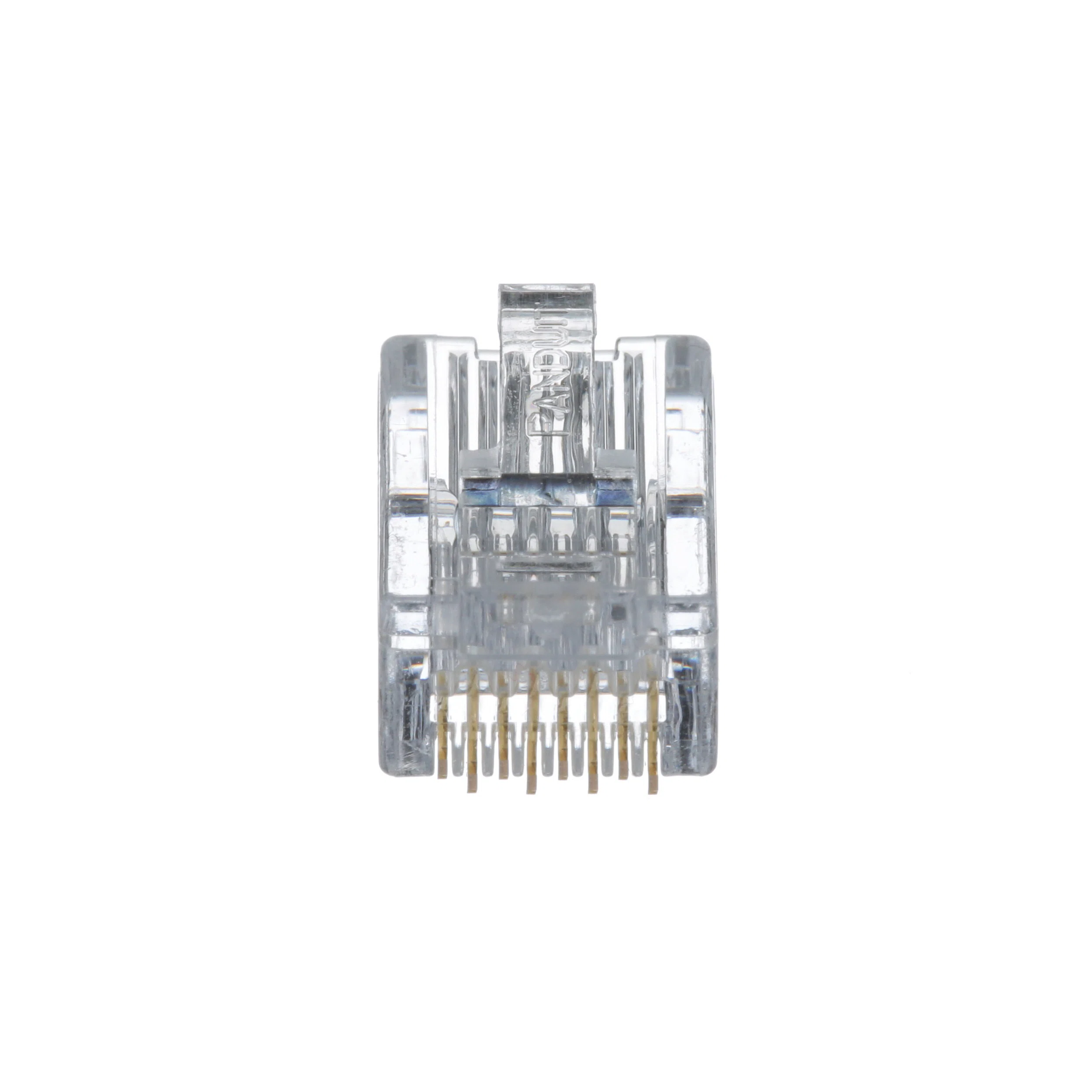

MP588-C Pan-Plug 1-Port 8-Position 8-Wire High Performance Unshielded Modular Plug, T568A/T568B/UTP Connector, 24 AWG Copper Cable, Cat 5e

MFR:
Panduit
MFR #:
MP588-C
UPC:
074983745524
Item #:
877239

Availability

Location Available Qty
Available Available to Order
$1.29 each

Cat 5e/Class D, eight-position, eight-wire, UTP modular plug shall terminate most four-pair, 26 to 24 AWG, 100 Ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.04 in. Simplified termination method shall require no load bar. Guide ramp shall facilitate easy conductor insertion and termination. Modular plug shall terminate to T568A and T568B wiring schemes.

Manuals and Documentation

Features

  • Patented prevents snags and provides easy release, saving time and tangle-free latch providing reliability on frequent moves, adds and changes
  • Robust construction, rated to 2500 mating cycles
  • Simplified termination requires no loading bar, guide ramp facilitates easy conductor insertion and termination
  • Contacts plated with 50 um in of gold for superior performance
  • Terminate 24 AWG, 100 Ohm, stranded or solid conductor with maximum conductor insulation Dia of 0.04 in
  • Patented prevents snags and provides easy release, saving time and tangle free latch providing reliability on frequent moves, adds and changes
  • Robust construction rated to 2500 mating cycles
  • Simplified termination requires no loading bar, guide ramp facilitates easy conductor insertion and termination
  • Contacts plated with 50 u-in of gold for superior performance
  • Terminate 24 AWG, 100 Ohm, stranded or solid conductor with maximum conductor insulation diameter of 0.04 in
Manufacturer Part Number MP588-C
Stripped Manufacturer Part Number MP588C
Brand Panduit®
Manufacturer Panduit
UPC 074983745524
EAN 0074983745524
Country Of Origin CR
Cable Type Copper
Category Type Cat 5e
Color Clear
Connector Type T568A/T568B/UTP
Dimensions 0.46 in W x 0.88 in D x 0.32 in H
Material Polycarbonate
Type 1-Port 8-Position 8-Wire High Performance Unshielded
Cable Size 24 AWG
Alternative Part Number 7609630 | 8859658
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant | ARRA Compliant | Buy American Act Compliant | CSA C22.2 | IEC 60603-7 | IEEE 802.3af | IEEE 802.3at | RoHS Compliant | T568-B | TIA-968-A | UL 1863 | UL94 V-0 Flammability Rated
Application Unshielded Applications
