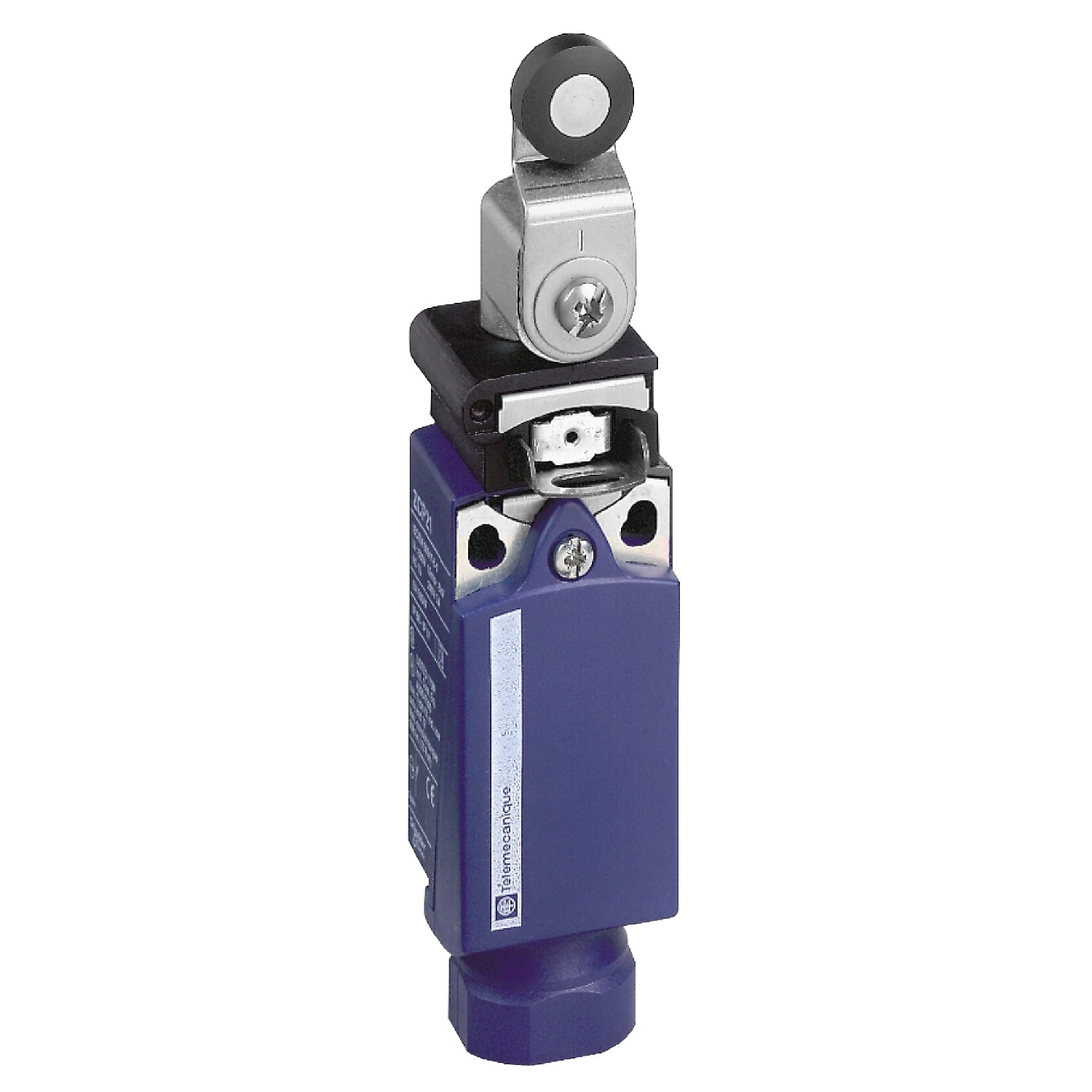

XCPR2518N12 OsiSense Compact Fixed Standard Limit Switch, Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCPR2518N12
- UPC:
- 785901797944
- Item #:
- 8746
XCPR2518N12 OsiSense Compact Fixed Standard Limit Switch, Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCPR2518N12
- UPC:
- 785901797944
- Item #:
- 8746
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$241.94
each
limit switch XCPR - thermoplastic roller lever - 1NC+1NO - slow - 1/2NPT
Manuals and Documentation
| Catalog Number | XCPR2518N12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Slow-break, break before make;By 30 Degrees cam |
| Actuator | Rotary;Spring return roller lever thermoplastic;Lateral approach, 2 directions |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL,EN 60947-5-1-IEC 60204-1-CSA C22.2 NO 14-IEC 60947-5-1-UL 508-EN 60204-1,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858144&lang=en-us |
| UPC | 785901797944 |
| GTIN | 03389110211610 |
| Item Type | Limit switch |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
