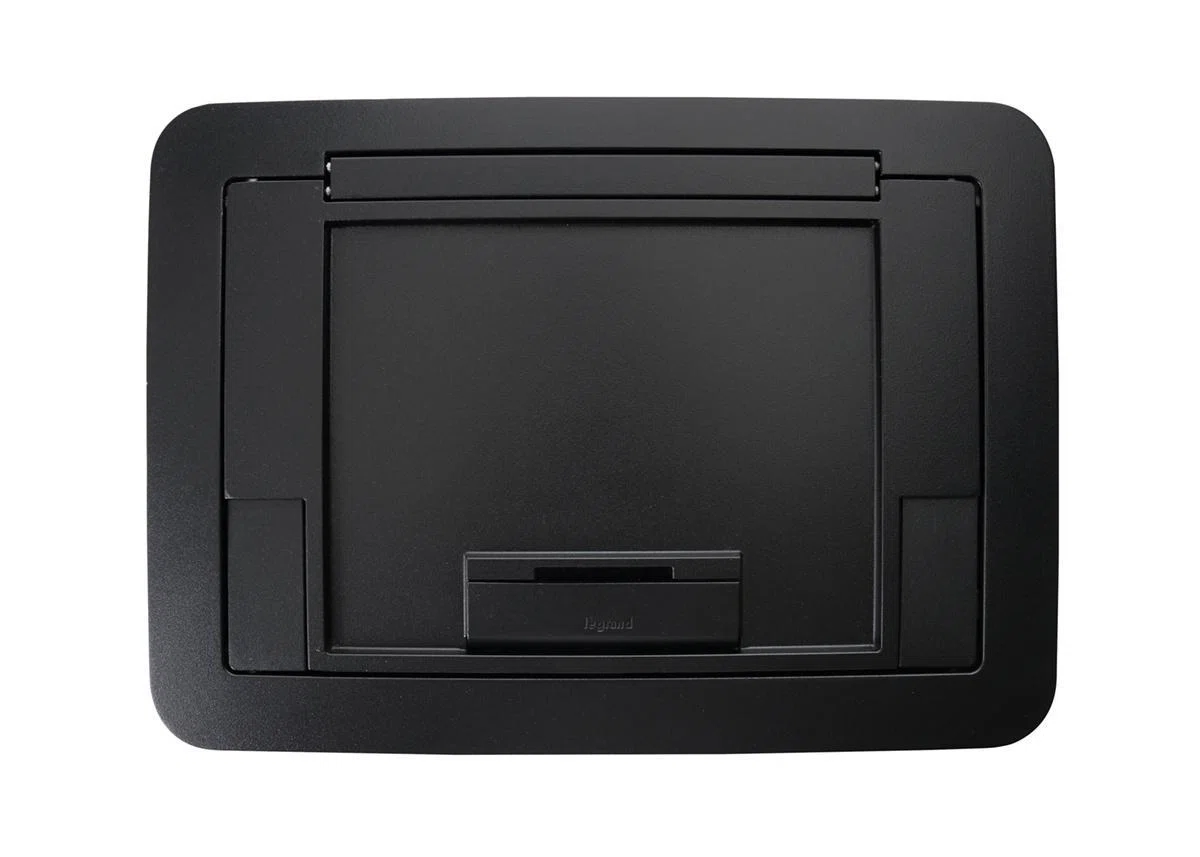

EFB45BTGYTR Low Profile Tamper-Resistant Floor Box Cover With Solid Lid, 13-7/8 in L x 9-15/16 in W x 1-3/16 in D, Die Cast Aluminum
- MFR:
- Legrand
- MFR #:
- EFB45BTGYTR
- UPC:
- 786564086864
- Item #:
- 872827
EFB45BTGYTR Low Profile Tamper-Resistant Floor Box Cover With Solid Lid, 13-7/8 in L x 9-15/16 in W x 1-3/16 in D, Die Cast Aluminum
- MFR #:
- EFB45BTGYTR
- UPC:
- 786564086864
- Item #:
- 872827
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$688.37
each
Low profile cover designed to attach to the EFB45S style floor boxes. Each cover is made of die cast aluminum and is equipped with a durable hinge which allows the cover to rotate open 180 deg, and two (2) slide egress doors that lock in the open position and automatically close around the cables when the cover is closed. The cover assemblies are designed to sit flush with the finished floors such as: carpet, tile, and wood. In order to make the cover assembly flush with the polished concrete or terrazzo floor the EFB45-CTR (concrete/terrazzo) ring must be used (ring sold separately). The cover assemblies are available in six (6) powder coat finishes: black (BK), gray (GY), brass (BS), nickel (NK), aluminum (AL) and bronze (BZ).
Manuals and Documentation
Features
- Floor Box Covers have been designed to work on multiple floor surfaces and are manufactured from die cast aluminum to provide strength and style
- Decorative powder coat colors (black gray) and durable finishes (brushed aluminum, satin brass, satin nickel) will complement any room dcor
- Hinge design enables covers to open a full 180 and lie flat on the floor surface with the durability to support a large cover
- Provides easy access to all interior modules and activations while reducing tripping hazards
- Cable egress doors lock in position when open and automatically closes around wires to protect cabling and reduce trip hazards
| Manufacturer Part Number | EFB45BTGYTR |
| Brand | Wiremold® |
| Manufacturer | Legrand |
| UPC | 786564086864 |
| Country Of Origin | IN |
| Color | Gray |
| Depth | 1-3/16 in |
| Finish | Powder Coated |
| Length | 13-7/8 in |
| Material | Die Cast Aluminum |
| Mounting Type | Flush/Threaded |
| Shape | Rectangle |
| Type | Low Profile Tamper-Resistant |
| Width | 9-15/16 in |
| Alternative Part Number | 13825189 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | cULus File No. E2961 Guide QCIT | Article No. 314.27 NEC | RoHS Compliant |
| Application | For open space concrete, raised, wood floors and Evolution™ floor boxes |
| Number Of Gangs | 4/5 |
