BLACKBURN MECHANICAL

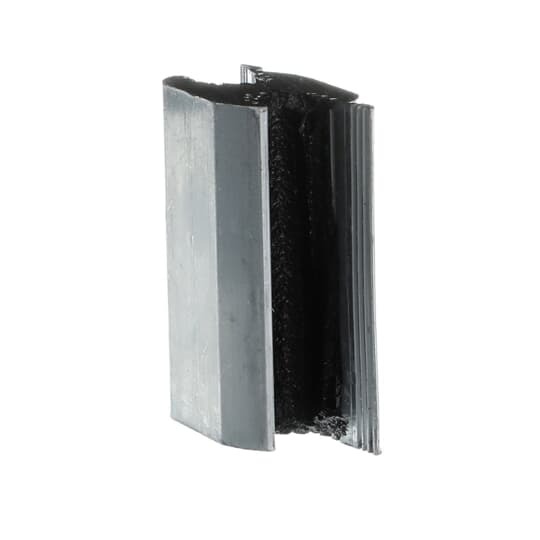

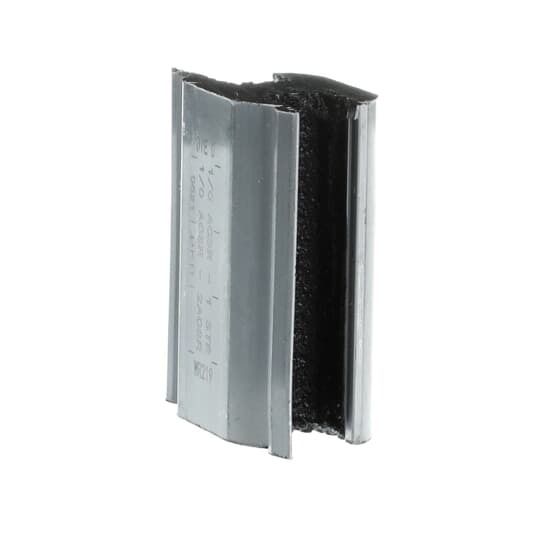

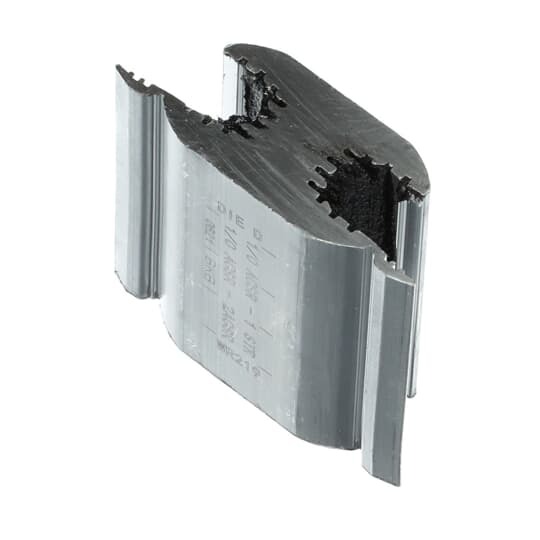

WR219 Blackburn Type WR Wide Range Compression H-Tap Connector, H Shape, 1 to 1/0 AWG ACSR, 1 to 1/0 AWG Stranded Main/Run, 2 to 1/0 AWG ACSR, 1 to 1/0 AWG Stranded Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR219
UPC:
783786100125
Item #:
87207

Availability

Location Available Qty
Available Available to Order
$14.24 each
Manuals and Documentation
Catalog Number WR219
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786100125
GTIN 00783786100125
Item Type H-Type Compression Tap Connector
Size Length 1-7/8 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 1/0 to #1 ACSR or 1/0 to #1 STR , Tap: 1/0 to #2 ACSR or 1/0 to #1 STR AWG
Cross Reference Products ABBInstall WR219|ABBInstall WR269 B|ABBInstall WR270|Burndy 4YHO300|Burndy YC26A26|Burndy YHD300|HublPower AC50482|Ilsco HT4|Kearney 326-81|Kearney 504-82
