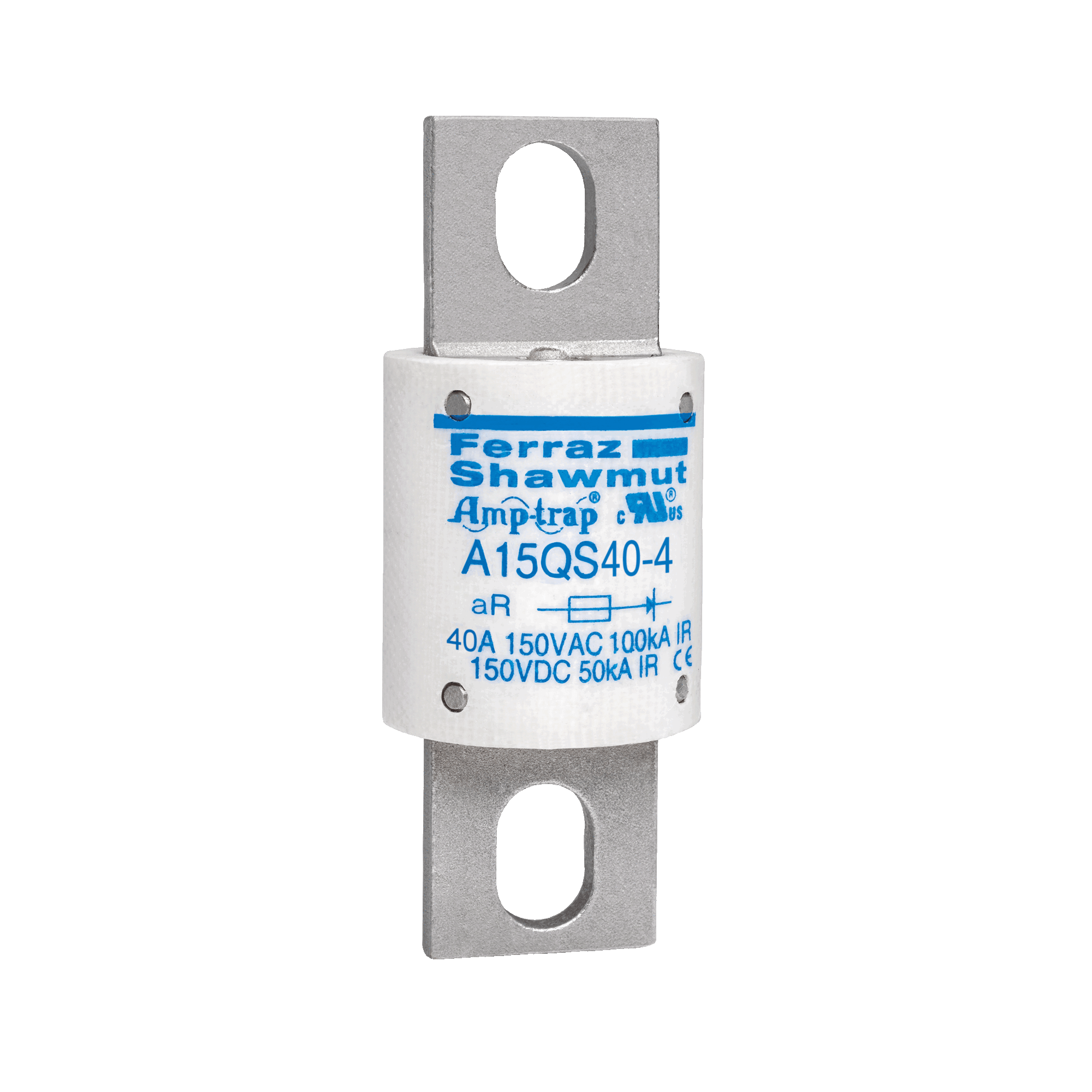

A15QS40-4 Amp-Trap Current Limiting Fast Acting Round Style Semi-Conductor High Speed Fuse, 40 A, 150 V AC, 50/100 kA Interrupt, Cylindrical/Round Body
- MFR:
- Mersen
- MFR #:
- A15QS40-4
- UPC:
- 782001305444
- Item #:
- 87167
A15QS40-4 Amp-Trap Current Limiting Fast Acting Round Style Semi-Conductor High Speed Fuse, 40 A, 150 V AC, 50/100 kA Interrupt, Cylindrical/Round Body
- MFR #:
- A15QS40-4
- UPC:
- 782001305444
- Item #:
- 87167
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
High Speed Fuse Amp-Trap A15QS 150VAC 150VDC 40A Blade
Manuals and Documentation
| Catalog Number | A15QS40-4 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 40 |
| Application | Protection of heavy duty devices such as electrochemical rectifiers |
| Connection | Blade |
| Mounting | Bolt |
| Special Features | Low I²t minimizes damage to protected components on short circuit Controlled arc voltage reduces stress to circuit components during fuse clearing Choice of mounting types provides options for unique termination requirements |
| Standard | UL recognized component UL File E60314 AC: UL guide no. JFHR2 (1-4000A) DC tested to UL standard 198L parameters (1-4000A) |
| UPC | 782001305444 |
| GTIN | 00782001305444 |
| Item Type | Round Body High-Speed Fuse-Links AC Protection |
| Size | 2.66 x 1.13 |
| Voltage Rating | 150 |
