Hubbell Wiring Device - Kellems

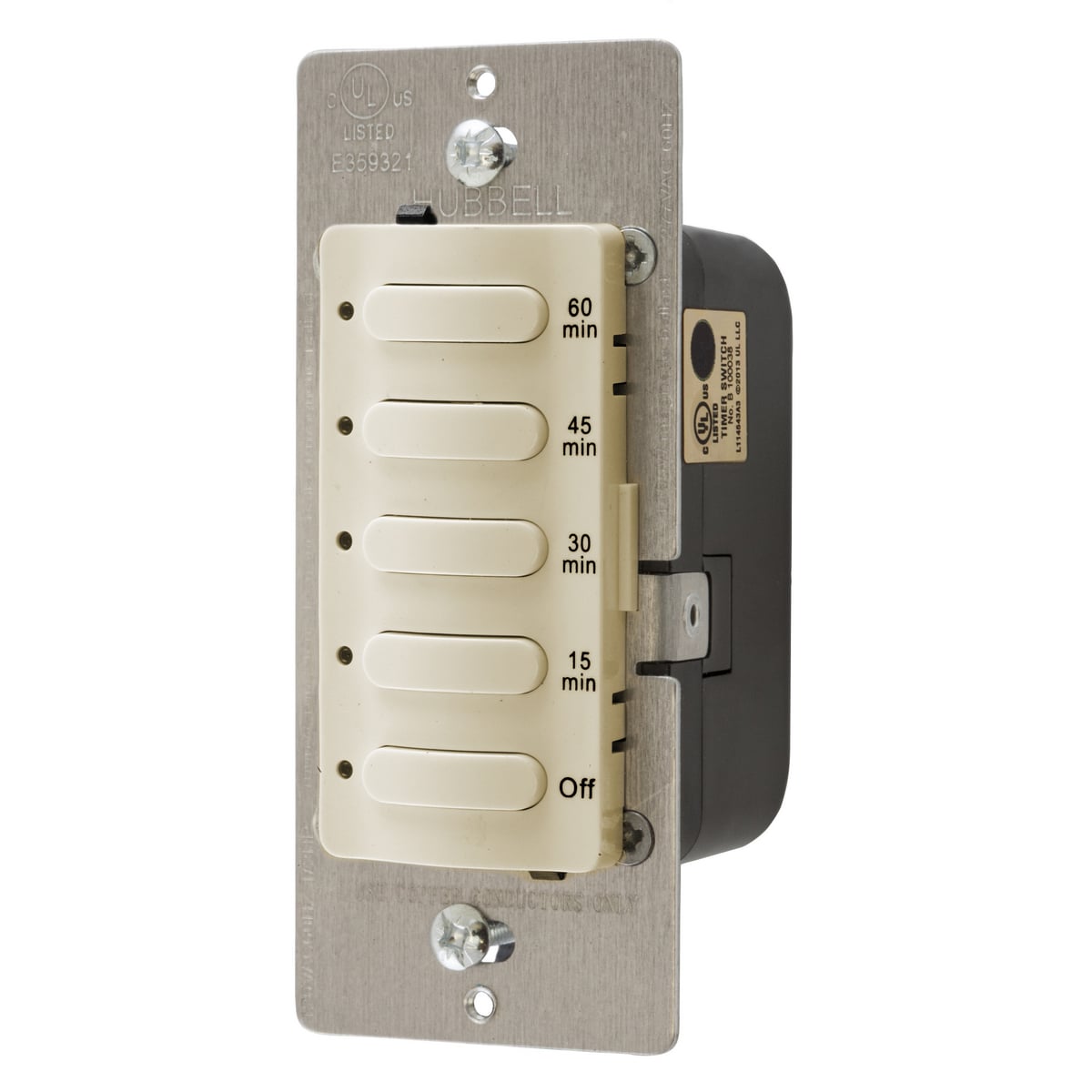

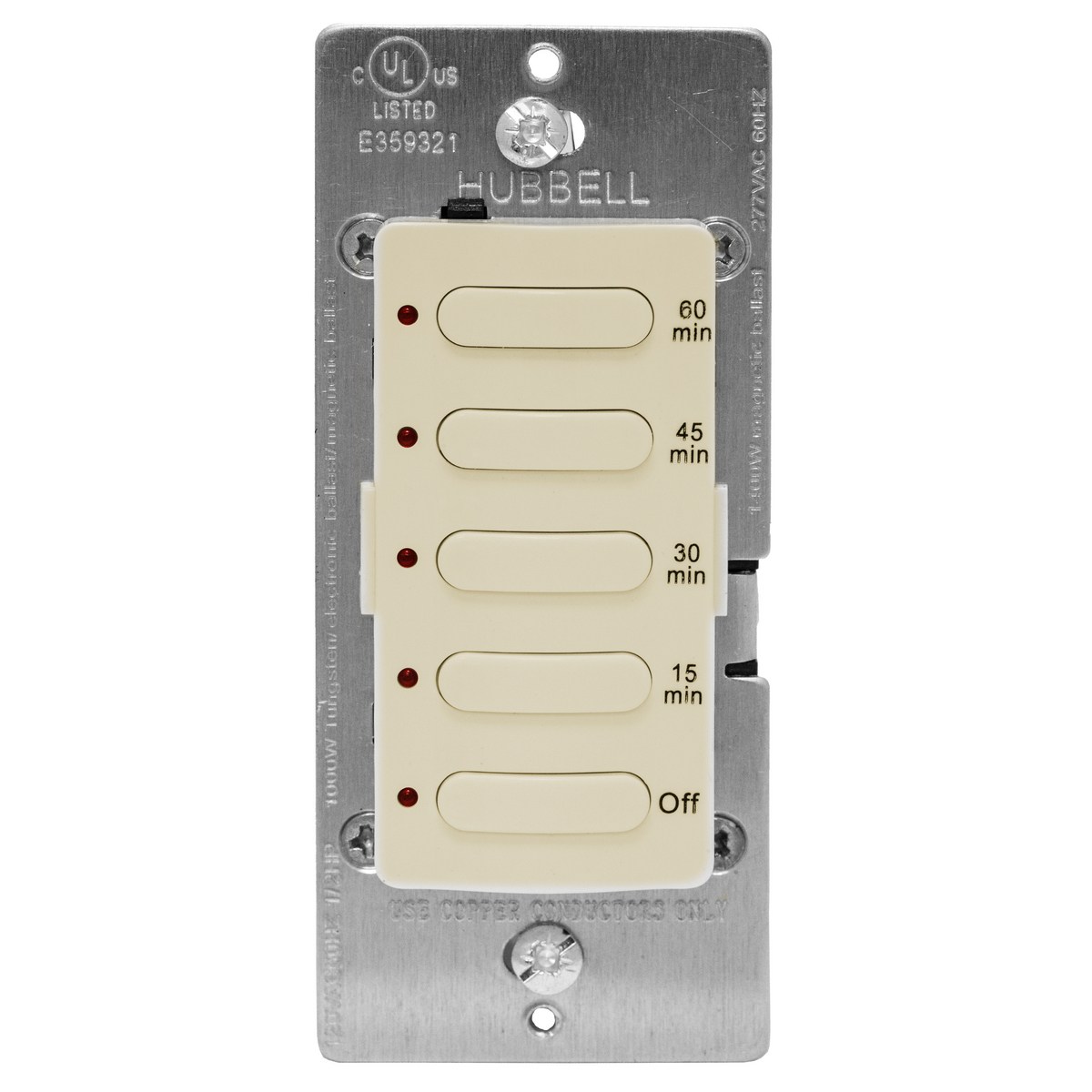

DT5060I Countdown Fixed Standard Timer Wall Switch, 60 min Setting, 120/277 V AC, 1/6 hp, 1 Poles

MFR:
Hubbell Wiring Device-Kellems
MFR #:
DT5060I
UPC:
783585256436
Item #:
87087

Availability

Location Available Qty
Available Available to Order
$67.09 each

Timers are used in many commercial, industrial and residential designs as a method to control energy. As an alternative to sensors or building controls, individual switch timers target point-of-use to enable the user to take control of the space and load, within limits. Preset timers are a simple on/off option to consider. By selecting a timer, the maximum on-time is established and control is maintained based on a reestablished regimen, adding to the buildings efficiency and energy savings. Timers in increments up to 30 and 60 minutes are excellent for use in indoor spaces. The 12 hour version is popular with outdoor lighting control and VAC where more on-time is required.

Manuals and Documentation
Catalog Number DT5060I
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Action Push Button
Application Wall Mounted
Connection Terminal Screws
Contact Rating Inductive and Resistive Loads
Mounting Screw
Number of Poles 1
Special Features Standard Product
Standard cULus Listed To UL60730-1 And UL60730-2;Meets ASHRAE 90.1, and CEC Title 24 Compliant
UPC 783585256436
GTIN 00783585256436
Item Type 60 Minutes
Size 3.81 in x 1.75 in x 2.27 in
Environmental Conditions Indoor Use Only
Operating Temperature 32 Degrees F to 122 Degrees F (0 Degrees C to 50 Degrees C) with rate of change not exceeding 20 Degrees F(11 Degrees C) per hour
Timing Range OFF, 15, 30, 45, 60 minutes
Voltage Rating 120/277
Wattage 1000/1,400 W
